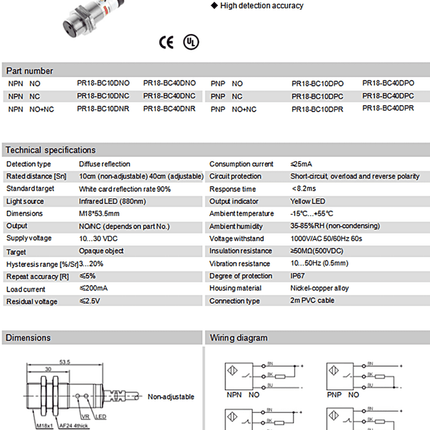

| type |
Diffuse reflection |
| Sensing distance |
10cm |
| Target |
White card reflection rate 90% |
| Sensing object |
Opaque |
| Light source |
Infrared LED (880nm) |
| Output ways |
NPN |
| Output status |
NO |
| Residual voltage |
≤2.5V |
| Supply Voltage |
10…30 VDC |
| Load current |
≤200mA |
| Current consumption |
≤25mA |
| Response time |
<8.2ms |
| Hysteresis range |
3…20% |
| Repeat accuracy |
≤5% |
| Ambient temperature |
15℃…55℃ |
| Ambient humidity |
35-95%RH（no condensation） |
| Circuit protection |
Short circuit protection, overload protection, reverse polarity protection |
| Withstand voltage |
1000V/AC 50/60Hz 60s |
| Insulation resistance |
≥50MΩ(500VDC) |
| Vibration resistance |
Complex amplitude 0.5mm 10...50Hz (2 hours each in X, Y and Z directions) |
| Protection degree |
IP67 |
| Output indicator |
Yellow LED |
| Housing material |
Nickel copper alloy |
| Certification |
CE+UL |
| Connection |
Cable |
