PHPoC Blue (P4S-342) - IOT Development Board

Description

PHPoC Blue (P4S-342) - IOT Development Board

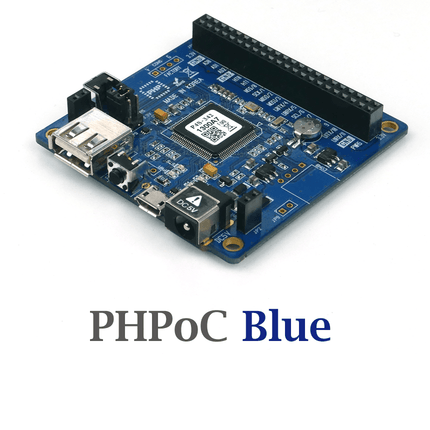

PHPoC Blue (P4S-342) is a programmable board embedded with a PHPoC interpreter. It has 22 digital input/output pins, 6 analogue inputs, and various communication interfaces such as UART, SPI and I2C. PHPoC Blue supports Ralink TR3070/RT5370 chipset applied USB Wireless adapter to be used in IEEE802.11b/g Wireless LAN environment.

  • PHPoC (PHP on Chip) interpreter embedded
  • Uploading and debugging codes via USB
  • 10Base-T/100Base-TX Ethernet (RJ45)
  • 8 x digital input/output port
  • 14 x sharing port (Digital Input/Output, SPI, I2C, UART)
  • 6 x analogue input port
  • HTTP/SSH/Websocket server
  • Web page customization available (accessible with smart devices)

Features:

  • Sensor Monitoring
  • Actuator Control
  • Web Application
  • Web Socket
  • E-mail
  • Smart Device Support
  • IoT Cloud Service Support
  • Database(MySQL) Support
  • Source Level Debugging
  • Networking
  • Security Protocol
  • RTC(Real-Time Clock)
  • Industrial Operating Temperature
Processor
Core Cortex-M4 168MHz
Flash System-512KB, User-512KB
SRAM 192KB
Power Input
Input Voltage 5V±10%
Input Port DC jack or USB device port
Max Current DC jack: 2A, USB device port: 500mA
Network Interface
Wireless LAN IEEE802.11b/g with a USB dongle
USB Interface
USB Host Wireless LAN interface with a USB dongle
USB Device PC interface for programming
DIO
Type 3.3V CMOS level digital I/O
Ports Maximum 22 ports
Mode Input/Output, Push-Pull/Open-Drain, Pull-up/Pull-down
Communication
UART 2 Ports (RXD, TXD, RTS, CTS, GND) with Hardware Flow Control
SPI 1 Port
I2C 1 Port (100Kbps or 400Kbps)
ADC
Resolution 12 bits
Channels 6
Hardware Timer/Counter
Mode PWM output, Pulse Output, Toggle Output, Capture
Unit Milliseconds or Microseconds
Channels 4
RTC
Battery Rechargeable battery (5.8mAh)
Peripherals Real-time Clock, 4KB Backup SRAM
Indicators (LEDs)
System LED Power, Status
User LED uio0.30, uio0.31
Power Output
PWR5 Output Voltage Power input voltage minus power switch voltage drop.
PWR5 Output Voltage Drop 0.2V (25℃ 0.1A) ~ 0.4V (25℃ 2A)
3.3V Max Current 800mA
PWR5 + 3.3V Max Current 2A
Dimension
Size 66.5mm x 63.8mm x 13mm
Weight about 27g (without USB WLAN adapter)

    More product information here in this link.



    Read more

    PHPoC Blue (P4S-342) - IOT Development Board

    Product form

    SKU: SOL-P4S-342-BO

    $99.00 $49.00 Excl. GST

    $49.00
    Product available in stock.

      • We ship from our stock in AU (Perth), pickup by prior booking
      • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
      • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

      Description

      PHPoC Blue (P4S-342) - IOT Development Board

      PHPoC Blue (P4S-342) is a programmable board embedded with a PHPoC interpreter. It has 22 digital input/output pins, 6 analogue inputs, and various communication interfaces such as UART, SPI and I2C. PHPoC Blue supports Ralink TR3070/RT5370 chipset applied USB Wireless adapter to be used in IEEE802.11b/g Wireless LAN environment.

      • PHPoC (PHP on Chip) interpreter embedded
      • Uploading and debugging codes via USB
      • 10Base-T/100Base-TX Ethernet (RJ45)
      • 8 x digital input/output port
      • 14 x sharing port (Digital Input/Output, SPI, I2C, UART)
      • 6 x analogue input port
      • HTTP/SSH/Websocket server
      • Web page customization available (accessible with smart devices)

      Features:

      • Sensor Monitoring
      • Actuator Control
      • Web Application
      • Web Socket
      • E-mail
      • Smart Device Support
      • IoT Cloud Service Support
      • Database(MySQL) Support
      • Source Level Debugging
      • Networking
      • Security Protocol
      • RTC(Real-Time Clock)
      • Industrial Operating Temperature
      Processor
      Core Cortex-M4 168MHz
      Flash System-512KB, User-512KB
      SRAM 192KB
      Power Input
      Input Voltage 5V±10%
      Input Port DC jack or USB device port
      Max Current DC jack: 2A, USB device port: 500mA
      Network Interface
      Wireless LAN IEEE802.11b/g with a USB dongle
      USB Interface
      USB Host Wireless LAN interface with a USB dongle
      USB Device PC interface for programming
      DIO
      Type 3.3V CMOS level digital I/O
      Ports Maximum 22 ports
      Mode Input/Output, Push-Pull/Open-Drain, Pull-up/Pull-down
      Communication
      UART 2 Ports (RXD, TXD, RTS, CTS, GND) with Hardware Flow Control
      SPI 1 Port
      I2C 1 Port (100Kbps or 400Kbps)
      ADC
      Resolution 12 bits
      Channels 6
      Hardware Timer/Counter
      Mode PWM output, Pulse Output, Toggle Output, Capture
      Unit Milliseconds or Microseconds
      Channels 4
      RTC
      Battery Rechargeable battery (5.8mAh)
      Peripherals Real-time Clock, 4KB Backup SRAM
      Indicators (LEDs)
      System LED Power, Status
      User LED uio0.30, uio0.31
      Power Output
      PWR5 Output Voltage Power input voltage minus power switch voltage drop.
      PWR5 Output Voltage Drop 0.2V (25℃ 0.1A) ~ 0.4V (25℃ 2A)
      3.3V Max Current 800mA
      PWR5 + 3.3V Max Current 2A
      Dimension
      Size 66.5mm x 63.8mm x 13mm
      Weight about 27g (without USB WLAN adapter)

        More product information here in this link.



        Read more
