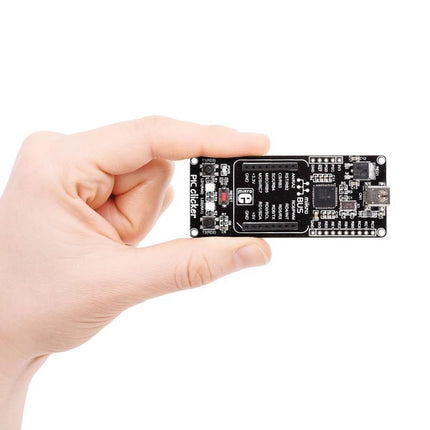

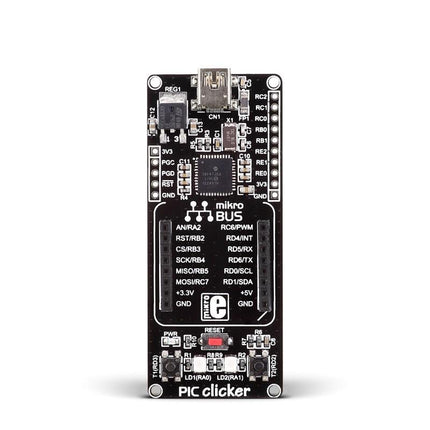

PIC clicker is an amazingly compact starter development kit which brings innovative mikroBUS™ host socket to your favorite microcontroller. Board features all you need to get started: PIC18F47J53 microcontroller, USB connector, two LEDs and push buttons, reset button, mikroProg connector and headers for interfacing with external electronics.

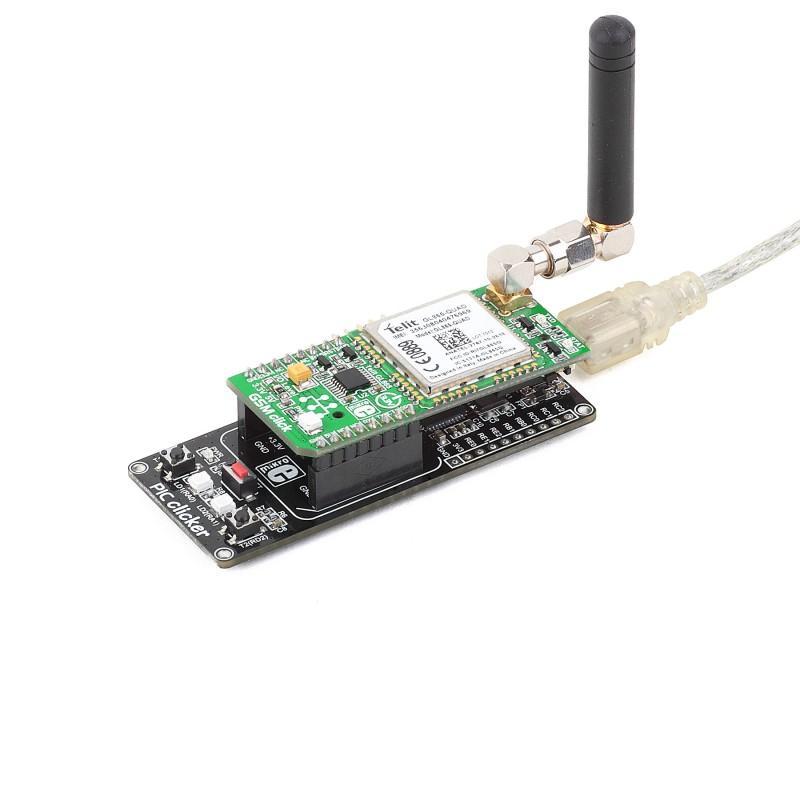

Hundreds of possibilities with click boards. With mikroBUS™ socket, you can take advantage of the huge potential of click™ boards, the constantly expanding range of over 200 add-on boards.
Programming. To make your prototyping experience as convenient as possible, PIC clicker is preprogrammed with a USB HID bootloader. Just download our mikroBootloader application and you’re ready to upload your firmware. On-board mikroProg for PIC, dsPIC and PIC32 connector enables programming through external programmer/debugger.
NOTE: If programming with mikroProg for PIC, dsPIC, PIC32, make sure to use mikroProg Suite for PIC 2.29 and above.
Specifications
| Applications | This compact board brings flexibility of click add-on boards to your favorite microcontroller, making it a perfect starter kit for implementing your ideas |
| Architecture | PIC (8-bit) |
| MCU | PIC18F47J53 |
| MCU speed | 12MIPS, 48MHz |
| MCU Memory | 128KB of Flash, 3,800 bytes of RAM |
| On-board modules | 1 x USB MINI-B connector, 2 x LEDs, 2 x push buttons, 1 x reset button |
| Programming | Preprogrammed with USB HID bootloader. Also features mikroProg for PIC, dsPIC and PIC32 connector |
| Expandability | mikroBUS socket |
| Input Voltage | 5V (via USB) |
