Power Adapter Kit 600W DC 48V 12.5A for reBot Arm B601-RS

Description

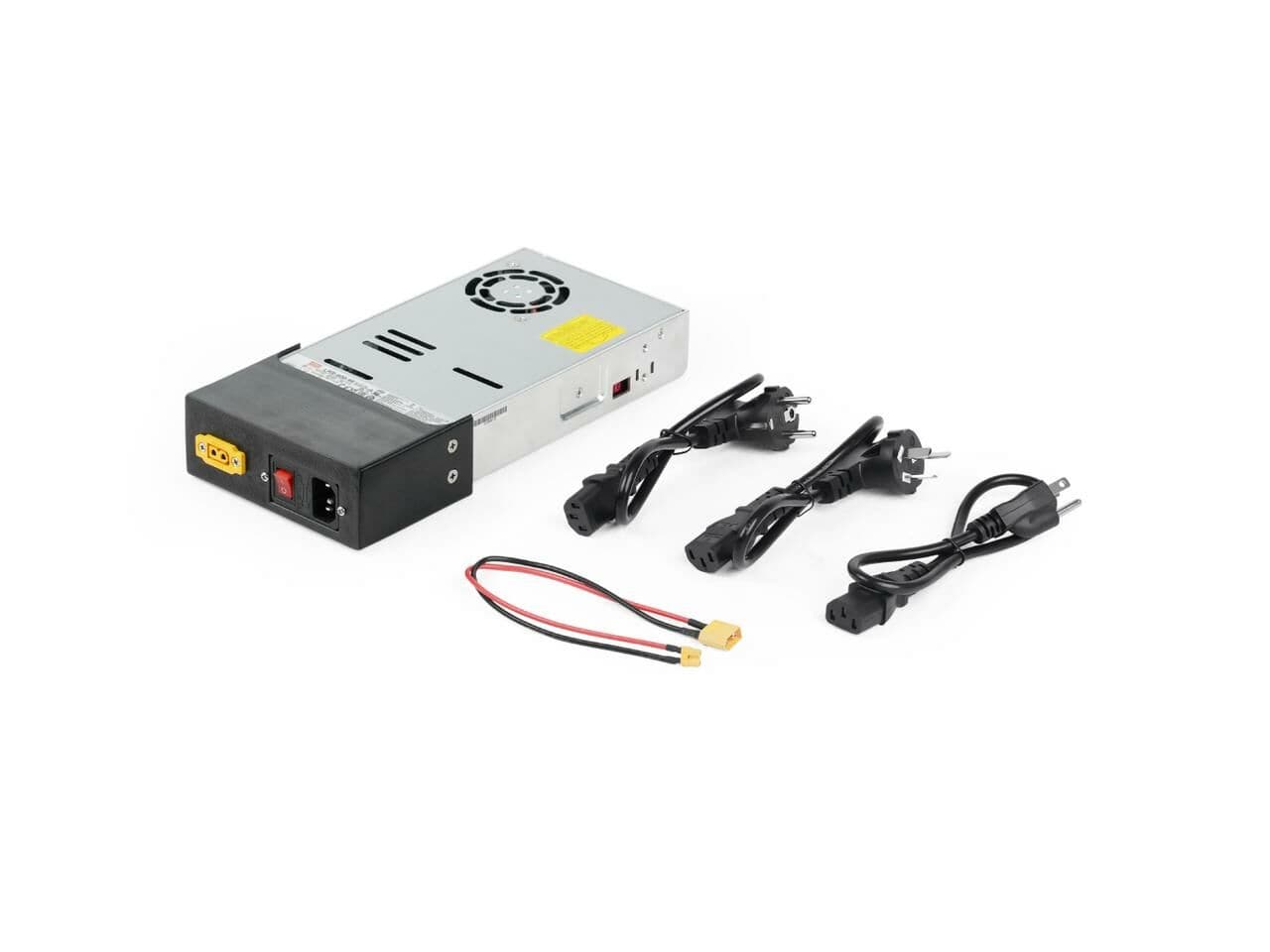

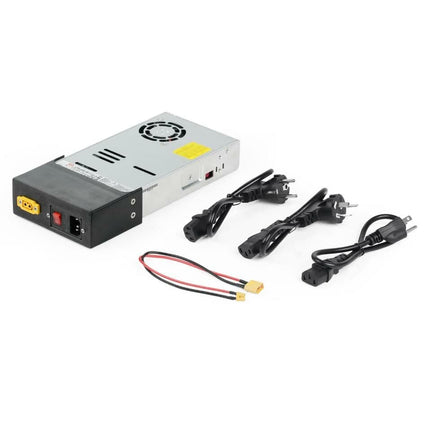

Power Adapter Kit 600W DC 48V 12.5A for reBot Arm B601-RS

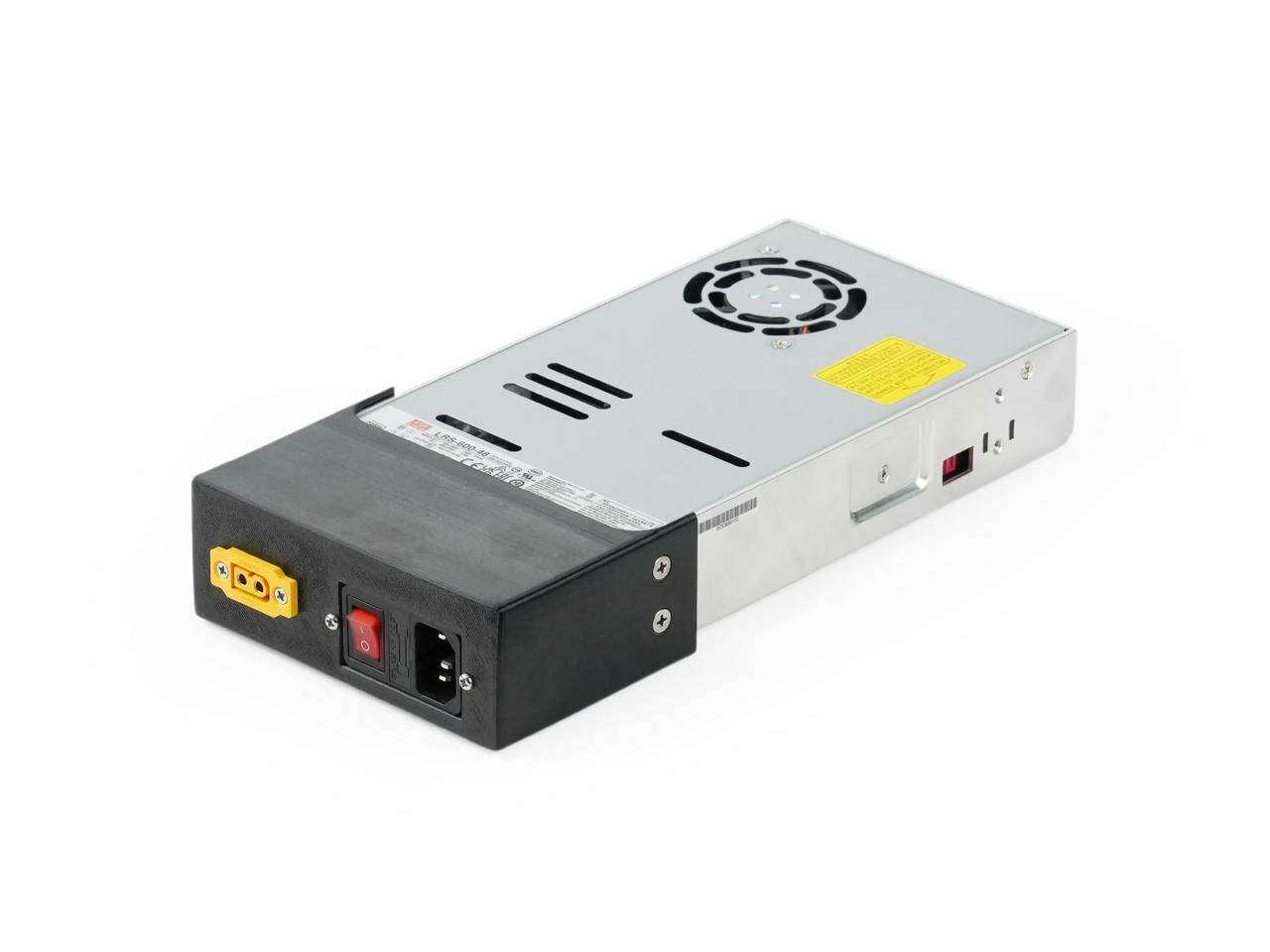

This is a 600W high-efficiency industrial-grade AC-DC switching power supply delivering a stable DC 48V, 12.5A output. It features a selectable input voltage switch for 115VAC or 230VAC (compatible with a wide range of 90–264VAC) and achieves a typical efficiency of up to 92%.

Designed for robust performance, it includes comprehensive protection circuits against Short Circuit, Overload, Over Voltage, and Over Temperature. The integrated cooling fan features intelligent on/off control based on thermal load.

Fully compliant with international safety standards including IEC/UL 62368-1 and CCC (GB4943.1), this unit is ideal for industrial automation, control systems, and electronic instrumentation. It boasts exceptional reliability with an MTBF \> 1,000,000 hours.

Features:

  • High Efficiency Design — Typical efficiency up to 92% (48V model), reducing energy costs and heat generation.
  • Wide Range Input — Selectable 90–132VAC / 180–264VAC via switch; withstands 300VAC surge for up to 5 seconds.
  • Robust Multi-Protection — Features Overload (Constant Current Limit 105–150%, auto-shutdown after 3s), Over Voltage (55.2–64.8V, latch-off), Over Temperature, and Short Circuit protection. All protections feature auto-recovery.

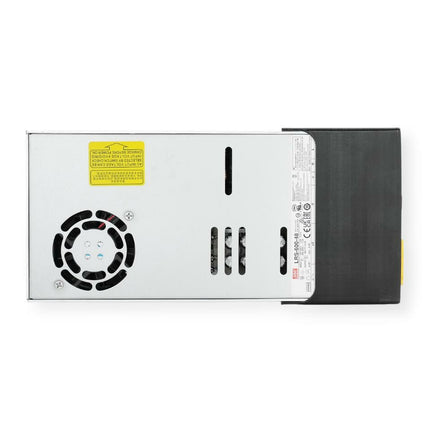

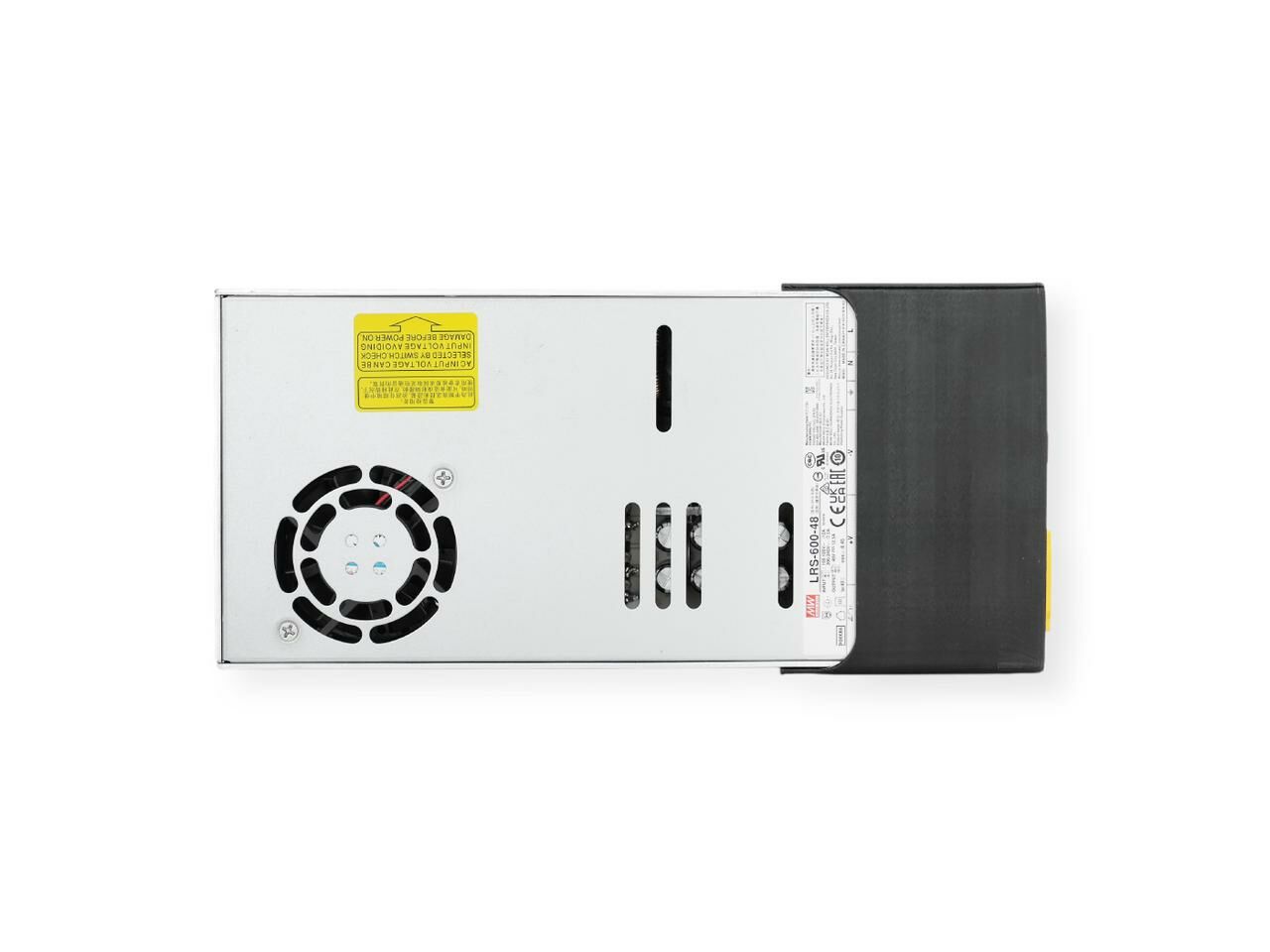

  • Smart Cooling System — Built-in intelligent temperature-controlled fan; activates at ≥50°C and stops at ≤40°C to maximize lifespan.
  • Extreme Environment Ready — Operates reliably from -20°C to +65°C (full load) and up to 5000m altitude.
  • Low Noise Output — Ripple & Noise ≤ 360mVp-p (measured at 20MHz bandwidth).
  • Global Safety Certified — Complies with IEC/UL 62368-1, CCC (GB4943.1), BSMI, and EAC TP TC 004 standards.
  • Superior Reliability — MTBF \> 1,533,400 hours (calculated per Telcordia SR-332).
  • Anti-Vibration Design — Withstands 5G vibration (10–500Hz) for 60 minutes in each axis (X, Y, Z).

Specification

Item Specification
Model Number Power Adapter Kit for reBot Arm B601-RS

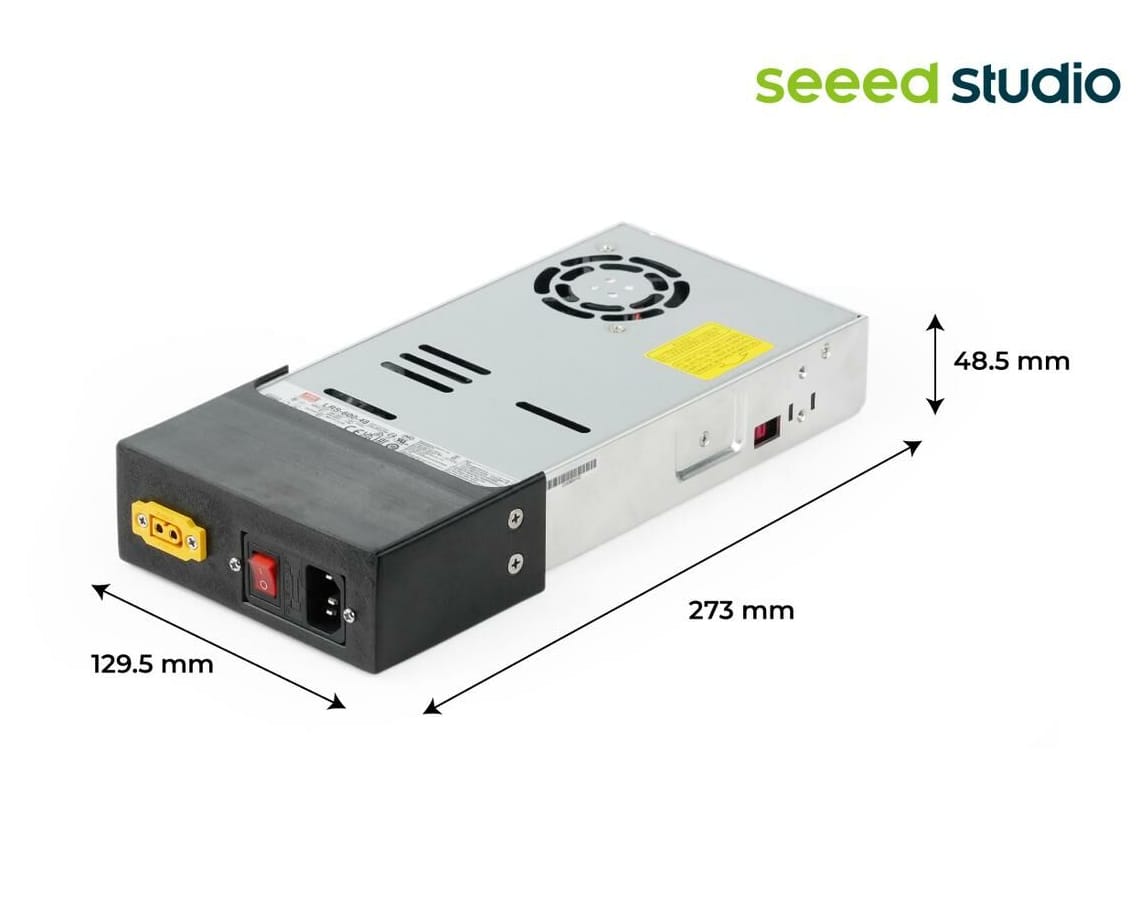

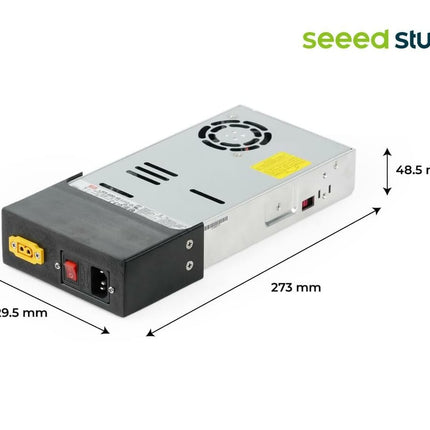

Dimensions (L×W×H) 273 × 129.5 × 48.5mm（L×W×H）
Net Weight Approx. 0.95 kg
Input Voltage Range 90–132VAC / 180–264VAC (Selectable via Switch)
Frequency Range 47 – 63 Hz
AC Input Current 7.5A Max. @ 230VAC (Typical)
Inrush Current 35A @115VAC / 60A @230VAC (Cold Start)
Efficiency (Typ.) 92%
DC Output Voltage DC 48V
Rated Output Current 12.5A
Rated Output Power 600W
Ripple & Noise ≤ 360mVp-p
Protections OLP / OVP / OTP / SCP
Operating Temp. -20°C ~ +65°C
Operating Humidity 20% ~ 90% RH (Non-condensing)
Storage Temperature -40°C ~ +85°C
Storage Humidity 10% ~ 95% RH
Safety Certificates IEC/UL 62368-1, CCC (GB4943.1), BSMI CNS15598-1, EAC TP TC 004, EN 61558-1, EN 61558-2-16, BIS IS13252(Part1), KC 62368-1


Read more
