Programmable Power Guard Phidget - SAF1000_0

Description

Programmable Power Guard Phidget - SAF1000_0

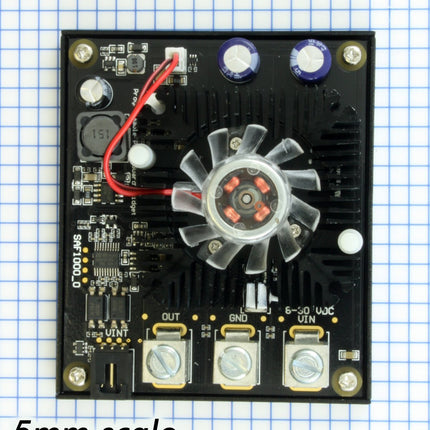

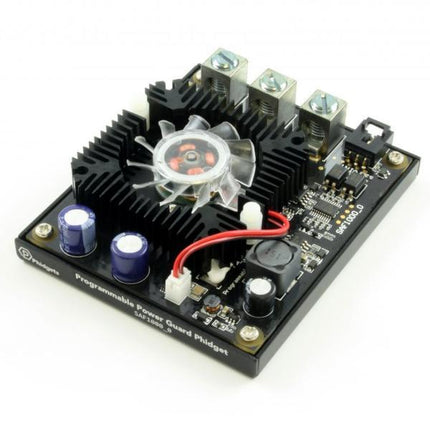

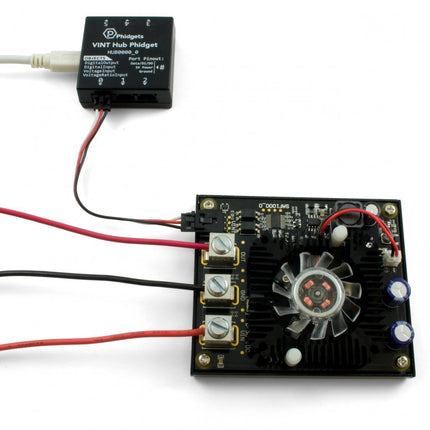

When high-power motor stalls or stops suddenly, it can generate a high-voltage surge that can damage the circuitry of the motor controller and burn out the power supply. This Power Guard Phidget is designed to protect your hardware from such an event by preventing current from flowing back into the power supply, and by providing a heatsink and fan for the excess power to dissipate. This board is designed for high current systems and is capable of protecting your equipment from even the largest of power spikes. Simply connect your power supply's positive wire to the 8-30V input lug, connect your device's positive wire to the output lug, and wire both grounds to the ground lug. The SAF1000 connects to a port on a VINT Hub. See the "Compatible Products" tab for a list of hubs.

Power Control and Safety Features

Since this is an intelligent VINT device, the overvoltage trigger can be modified in software to accommodate for different power supplies. Similarly, the fan can be switched on or off, or it can be set to turn on when a certain temperature threshold is passed. You can also choose to switch the power off through software, like a relay. Even if communication between this board and the computer is interrupted, it will continue to power the device and protect against the last chosen overvoltage trigger.

Isolated for Stability

The VINT port on this board is electrically isolated from the rest of the board in order to improve stability by eliminating ground loops.

We strongly recommend using this Phidget according to the table below:

Recommended Use

Controller Motor Rated Current Suggested Power Guard
STC1000 Less than 1.5A None
STC1000 1.5A to 5A SAF2000
STC1000 Greater than 5A SAF1000
DCC1000 Less than 1A None
DCC1000 1A to 5A SAF2000
DCC1000 Greater than 5A SAF1000

Product Specifications

Board Properties
Controlled By VINT
Power Supply Protector
Overvoltage Setting Selectable via software 8 - 33 VDC
Overtemperature Trigger 125 °C
Sampling Interval Min 100 ms/sample
Sampling Interval Max 60 s/sample
Fan Trigger 75 °C
Electrical Properties
Continuous Current 50 A
Current Consumption Min (VINT Port) 100 μA
Supply Voltage Min 8 V DC
Supply Voltage Max 30 V DC
Power Consumption 250 mW
Physical Properties
Recommended Wire Size 6 - 14 AWG
Operating Temperature Min -40 °C
Operating Temperature Max 85 °C

      Programmable Power Guard Phidget - SAF1000_0

      Product form

      SKU: SAF1000_0

      $159.00 $119.00 Excl. GST

      $119.00
      Product available in stock.

        • We ship from our stock in AU (Perth), pickup by prior booking
        • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
        • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

        Description

        Programmable Power Guard Phidget - SAF1000_0

        When high-power motor stalls or stops suddenly, it can generate a high-voltage surge that can damage the circuitry of the motor controller and burn out the power supply. This Power Guard Phidget is designed to protect your hardware from such an event by preventing current from flowing back into the power supply, and by providing a heatsink and fan for the excess power to dissipate. This board is designed for high current systems and is capable of protecting your equipment from even the largest of power spikes. Simply connect your power supply's positive wire to the 8-30V input lug, connect your device's positive wire to the output lug, and wire both grounds to the ground lug. The SAF1000 connects to a port on a VINT Hub. See the "Compatible Products" tab for a list of hubs.

        Power Control and Safety Features

        Since this is an intelligent VINT device, the overvoltage trigger can be modified in software to accommodate for different power supplies. Similarly, the fan can be switched on or off, or it can be set to turn on when a certain temperature threshold is passed. You can also choose to switch the power off through software, like a relay. Even if communication between this board and the computer is interrupted, it will continue to power the device and protect against the last chosen overvoltage trigger.

        Isolated for Stability

        The VINT port on this board is electrically isolated from the rest of the board in order to improve stability by eliminating ground loops.

        We strongly recommend using this Phidget according to the table below:

        Recommended Use

        Controller Motor Rated Current Suggested Power Guard
        STC1000 Less than 1.5A None
        STC1000 1.5A to 5A SAF2000
        STC1000 Greater than 5A SAF1000
        DCC1000 Less than 1A None
        DCC1000 1A to 5A SAF2000
        DCC1000 Greater than 5A SAF1000

        Product Specifications

        Board Properties
        Controlled By VINT
        Power Supply Protector
        Overvoltage Setting Selectable via software 8 - 33 VDC
        Overtemperature Trigger 125 °C
        Sampling Interval Min 100 ms/sample
        Sampling Interval Max 60 s/sample
        Fan Trigger 75 °C
        Electrical Properties
        Continuous Current 50 A
        Current Consumption Min (VINT Port) 100 μA
        Supply Voltage Min 8 V DC
        Supply Voltage Max 30 V DC
        Power Consumption 250 mW
        Physical Properties
        Recommended Wire Size 6 - 14 AWG
        Operating Temperature Min -40 °C
        Operating Temperature Max 85 °C
