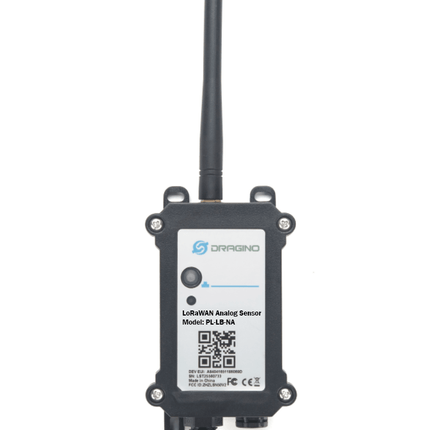

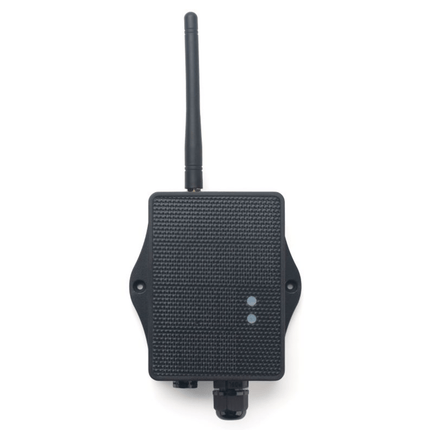

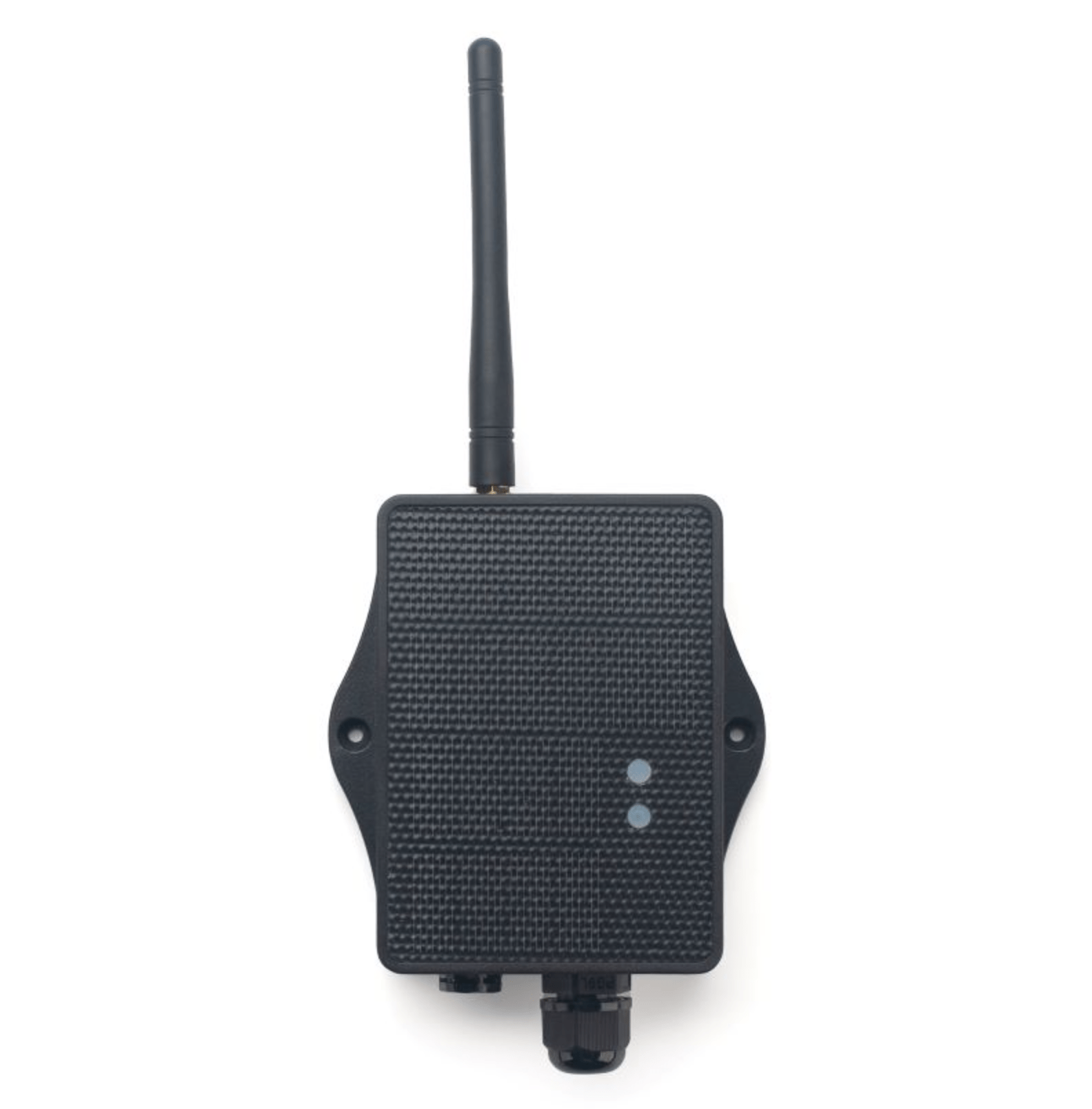

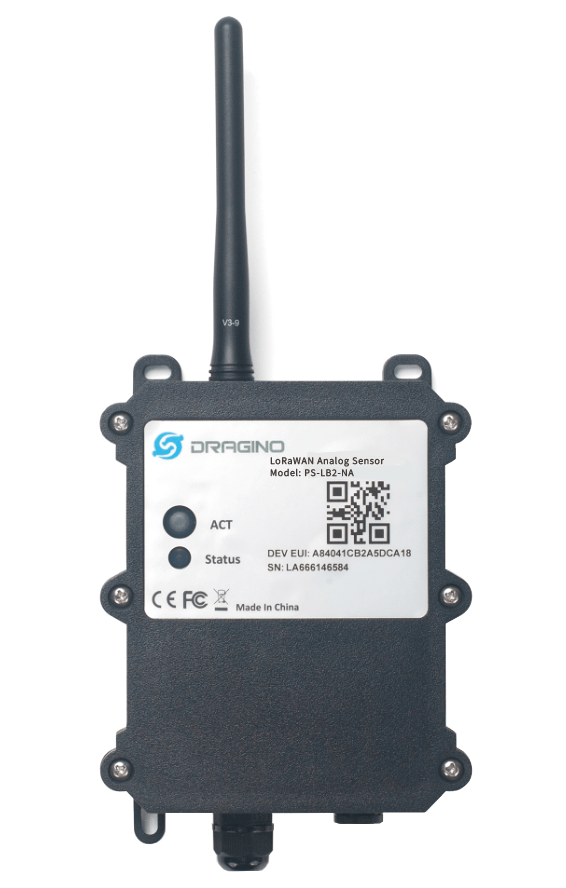

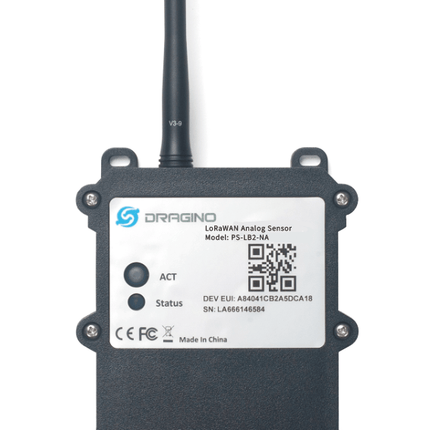

Waterproof PS-LB-NA LoRaWAN Analog Sensor 4-20mA 0-30V Wireless Battery-Powered
The Dragino PS-LB-NA is a LoRaWAN Analog Sensor for the Internet of Things solution. PS-LB-NA has 5v and 12v output, 4~20mA, 0~30v input interface to power and get value from Analog Sensor. PS-LB-NA will convert the Analog Value to LoRaWAN wireless data and send it to the IoT platform via the LoRaWAN gateway.
The LoRa wireless technology used in PS-LB-NA allows the device to send data and reach extremely long ranges at low data rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
PS-LB-NA supports BLE configuration and wireless OTA update which makes users easy to use.
PS-LB-NA is powered by 8500mAh Li-SOCI2 battery, it is designed for long-term use for up to 5 years.
Each PS-LB-NA is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to the local LoRaWAN server and it will auto-connect after powering on.
Features:
- LoRaWAN 1.0.3 Class A
- Ultra-low power consumption
- 1 x 0~20mA input , 1 x 0~30v input
- 5v and 12v output to power the external sensor
- Monitor Battery Level
- Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
- Support Bluetooth v5.1 and LoRaWAN remote configure
- Support wireless OTA update firmware
- Uplink on periodically
- Downlink to change configure
- 8500mAh Battery for long-term use
Specifications:
MicroController:
- MCU: 48Mhz ARM
- Flash: 256KB
-
RAM: 64KB
Common DC Characteristics:
- Supply Voltage: 2.5v ~ 3.6v
-
Operating Temperature: -40 ~ 85°C
LoRa Spec:
- Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz
- Max +22 dBm constant RF output vs.
- RX sensitivity: down to -139 dBm.
-
Excellent blocking immunity
Current Input (DC) Measuring :
- Range: 0 ~ 20mA
- Accuracy: 0.02mA
-
Resolution: 0.001mA
Voltage Input Measuring:
- Range: 0 ~ 30v
- Accuracy: 0.02v
-
Resolution: 0.001v
Battery:
- Li/SOCI2 un-chargeable battery
- Capacity: 8500mAh
- Self-Discharge: <1% / Year @ 25°C
- Max continuous current: 130mA
-
Max boost current: 2A, 1 second
Power Consumption:
- Sleep Mode: 5uA @ 3.3v
- LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
Documents:
LoRaWAN Sensor Node Datasheet
LoRaWAN Sensor Node User Manual
