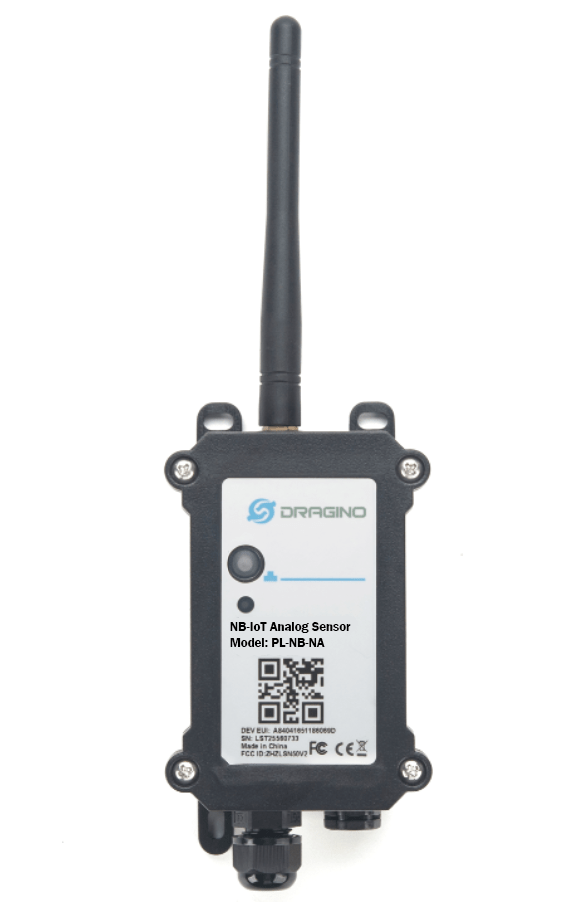

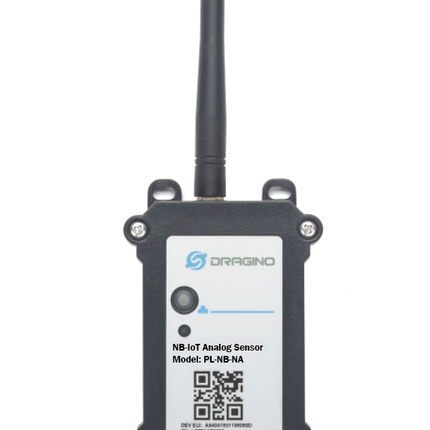

NB-IoT LTE CAT-M Waterproof LPWAN Wireless Sensor Node 0-20mA 0-30v
The PS-NB or PS-CB is an NB-IoT or LTE CAT-M Analog Sensor for Internet of Things solution. PS-NB has 5v and 12v output, 4~20mA, 0~30v input interface to power and get value from Analog Sensor. PS-NB-NA will convert the Analog Value to NB-IoT or LTE CAT-M wireless data and send to IoT platform via NB-IoT or LTE CAT-M network.
PS-NB supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirements, and support uplinks to various IoT Servers.
PS-NB supports BLE configure and OTA update which make users easy to use.
PS-NB is powered by an 8500mAh Li-SOCI2 battery, it is designed for long-term use up to several years.
Features:
- NB-IoT or LTE CAT-M Sensor Node,B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85@H-FDD
- Ultra Low Power Consumption
- 1 x 0~20mA input , 1 x 0~30v input
- 5v and 12v output to power the external sensor
- Multiply Sampling and one uplink
- 8500mAh Battery for long-term use
- Support BLE remote configure and update firmware
- Uplink on periodically
- IP66 Waterproof Enclosure
- AT Commands to change parameters
- Uplink via MQTT, MQTTs, TCP, or UDP
Applications:
- Smart Buildings & Home Automation
- Logistics and Supply Chain Management
- Smart Agriculture
-
Smart Cities
