PT1000 RTD Temperature Probe 4-Wire 11cm

Description

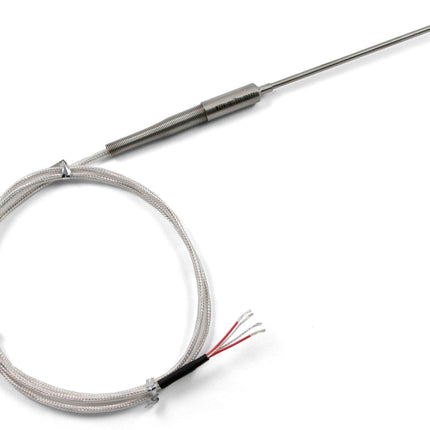

PT1000 RTD Temperature Probe 4-Wire 11cm

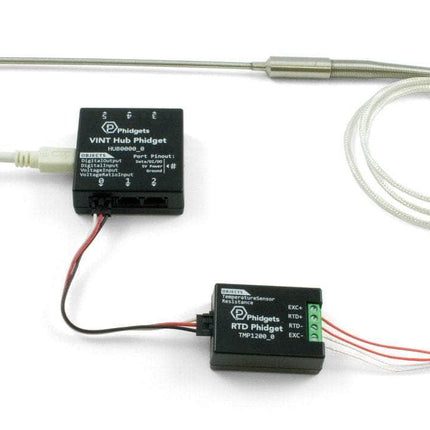

This stainless steel probe-type RTD is easy to install and plugs into a Phidgets RTD board.

Measure -50 to 500°C with this stainless steel class B 3850ppm PT1000 RTD probe. As an RTD this probe offers excellent accuracy and very low drift in comparison to what a thermocouple can offer.

If you need to fix it to a panel or mount it inside an enclosure, have a look at the HDW4101 - M12 Mounting Nut.

Functional

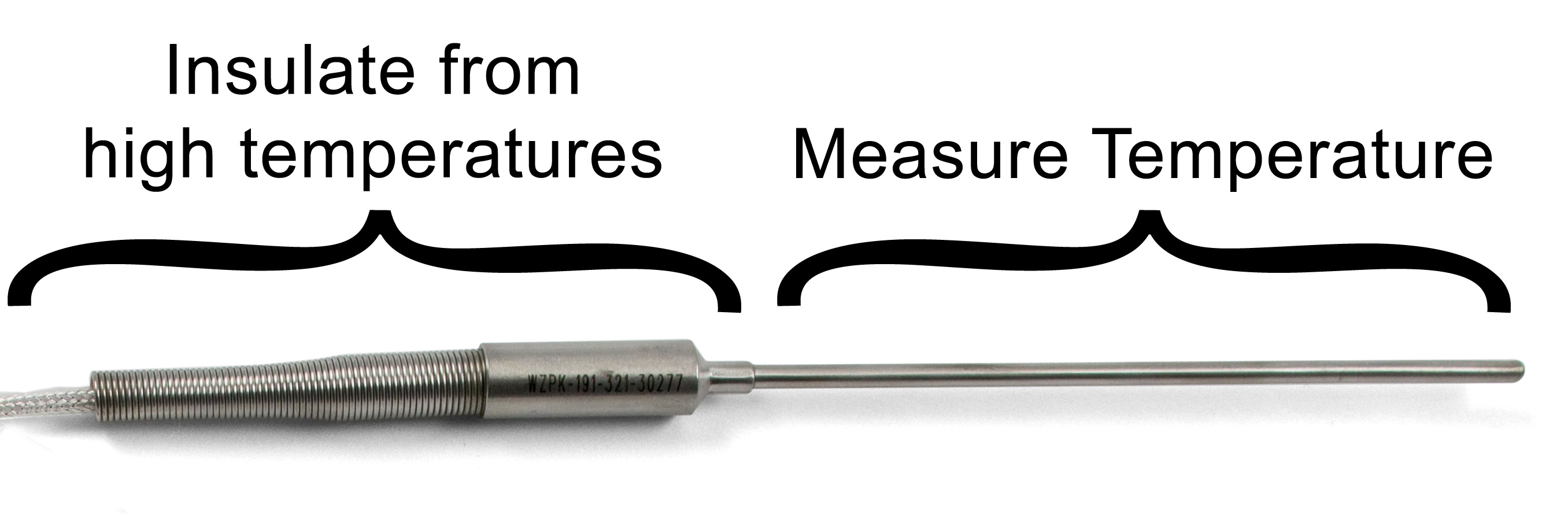

Note: While the 11cm tip of the probe can withstand up to 500°C, the wire and sheath cannot. When mounting this probe, ensure that everything beyond the tip of the probe is insulated from high temperatures in order to avoid inaccuracies or damage to the probe. Also, this RTD is not waterproof beyond the 11cm tip.

Connection

This RTD connects to an RTD interface. See the Connection & Compatibility tab for details.



PT1000 RTD Temperature Probe 4-Wire 11cm

Product form
Free pickup in our shop(s)

SKU: TMP4109

$99.00 $89.00 Excl. GST

$89.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description



    PT1000 RTD Temperature Probe 4-Wire 11cm

    This stainless steel probe-type RTD is easy to install and plugs into a Phidgets RTD board.

    Measure -50 to 500°C with this stainless steel class B 3850ppm PT1000 RTD probe. As an RTD this probe offers excellent accuracy and very low drift in comparison to what a thermocouple can offer.

    If you need to fix it to a panel or mount it inside an enclosure, have a look at the HDW4101 - M12 Mounting Nut.

    Functional

    Note: While the 11cm tip of the probe can withstand up to 500°C, the wire and sheath cannot. When mounting this probe, ensure that everything beyond the tip of the probe is insulated from high temperatures in order to avoid inaccuracies or damage to the probe. Also, this RTD is not waterproof beyond the 11cm tip.

    Connection

    This RTD connects to an RTD interface. See the Connection & Compatibility tab for details.
