Description

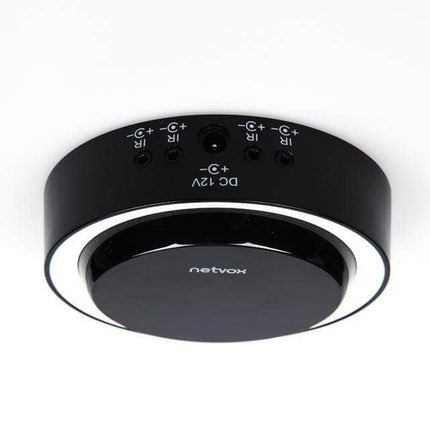

R211 Netvox LoRaWAN Wireless IR Blaster
Netvox R211 Wireless LoRaWAN IR Blaster can be used for IR learning and application. Following IR learning, R211 can send the infrared control signal to corresponded electric devices. R211 can receive the infrared signal from other infrared device and process predefined action, ex. controlling other LoRa devices.
Frequency Range: AU915-928，AS923
Features:
- LoRaWAN Class C Compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
- Built-In 4M Serial Flash
- Infrared Learning And Emission
- Infrared Frequency 38KHz
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
Electric:
|
Power Supply
|
DC 12V
|
|
Working Current
|
50mA / 12V/ 0.6W
|
|
Infrared Frequency
|
38 KHz
|
|
Infrared Transmission Range
|
32 Meters
|
Frequency:
|
TX Power
|
19dBm±1dBm
|
|
Rx Sensitivity
|
-136dBm
(LoRa，Spreading Factor=12，Bit Rate=293bps )
-121dBm
(FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
|
|
Antenna Type
|
Build-In Antenna
|
|
Communication Range
|
Up 10 Km, The Actual Transmission Distance Depends On The Environment.
|
|
Data Transfer Rate
|
0.3kbps～50kbps
|
|
Spread Technique
|
LoRa/FSK
|
|
Available Frequency
|
EU863-870，US902-928，AU915-928，
KR920-923，AS923，CN470-510
Configured Before Shipment
|
|
Power Supply
|
DC 12V
|
|
Working Current
|
50mA / 12V/ 0.6W
|
|
Infrared Frequency
|
38 KHz
|
|
Infrared Transmission Range
|
32 Meters
|
Physical:
|
Dimension
|
Diameter-106mm , Height-30.5mm
|
|
Weight
|
100g
|
|
Operating Temperature
|
-20℃ ～ 55℃
|
|
Environment Humidity Range
|
5% RH ~ 95% RH (No Condensation)
|
|
Storage Temperature
|
-40℃ ～ 85℃
|
