Description

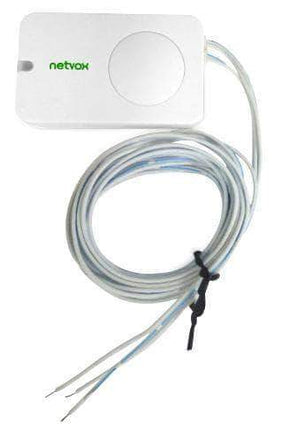

R311CA Netvox LoRaWAN Wireless Dry Contact Sensor Node
The R311CA device has a built-in reed switch sensor, and can be connected to a certain number of reed switches through external expansion. It can be used for door and window switch status detection. It can realize wireless alarm and other functions through built-in wireless module, and is compatible with LoRaWAN Protocol. It can be easily networked with other related devices. The R311CA is durable and ensures optimum use and is a low power consumption device. Due to their small size, they can be installed anywhere, they are wireless, so they take up very little space.
Features:
-
Wireless Range Of 10 Km
-
LoRaWAN™ Class A Compatible
-
Frequency Hopping Spread Spectrum (FHSS)
-
Improved Interference Immunity
-
Improved Power Management For Longer Battery Life
-
Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
-
Battery Life*2:
⁻ 5 Years
(Conditions: Ambient Temperature 25 °C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
-
Over-The-Air Updates
-
Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
-
Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
Battery: https://www.iot-store.com.au/products/lithium-button-cell-battery-cr2450-3v-600mah
Electric
|
Input Power
|
2pcs 3.0V CR2450 Button Battery
|
|
Working Voltage
|
DC 2.4V～3.0V
|
|
Standby Current
|
10uA /3.0V
|
|
Transmitting Current (Max)
|
120mA / 3.0V
|
|
Receiving Current (Max)
|
11mA / 3.0V
|
|
Battery Voltage Measurement Accuracy
|
±0.1V
|
Frequency
|
TX Power
|
19dBm±1dBm
|
|
Rx Sensitivity
|
-136dBm
(LoRa，Spreading Factor=12，Bit Rate=293bps )
-121dBm
(FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
|
|
Antenna Type
|
Build-In Antenna
|
|
Communication Range
|
10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment)
|
|
Data Transfer Rate
|
0.3kbps～50kbps
|
|
Spread Technique
|
LoRa/FSK
|
|
Available Frequency
|
AU915-928，AS923
|
Physical
|
Main Body Dimension
|
57mm X 35mm X 14mm
|
|
Weight
|
48.9 G
|
|
Operating Temperature
|
-20℃ ～ 55℃
|
|
Environment Humidity Range
|
<90% RH (No Condensation)
|
|
Storage Temperature
|
-40℃ ～ 85℃
|
Documentation:
Datasheet
User manual
Netvox LoRaWAN Catalog
Payload Format and Examples
Netvox LoRaWAN Application Command V1.9
Netvox LoRaWAN Application Devicetype V1.9
Example of payload (ConfigureCmd)_R718CK2
example of payload (ReportDataCmd)
Frequency Conversion (Sub frequencies of AU915)
Lora Calibrate Tool User Manual
Programming Instruction STlink
