Description

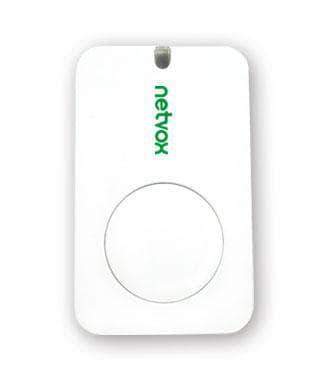

R311FA Netvox LoRaWAN Wireless Activity Detection Sensor
It can detect the sudden movement or vibration of the device and send an alarm signal to the gateway for processing. It uses the sx1276 wireless communication module.
Features:
-
Wireless Range of 10 Km (Actual Range May Vary Depending On Environment)
-
LoRaWAN™ Class A Compatible
-
Frequency Hopping Spread Spectrum (FHSS)
-
Improved Interference Immunity
- Improved Power Management For Longer Battery Life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
- Battery Life: 5 Years (Conditions: Ambient Temperature 25 °C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
Battery: https://www.iot-store.com.au/products/lithium-button-cell-battery-cr2450-3v-600mah
Electric
|
Input Power
|
2pcs 3.0V CR2450 Button Battery
|
|
Working Voltage
|
DC 2.4V～3.0V
|
|
Standby Current
|
40uA /3.0V
|
|
Transmitting Current (Max)
|
120mA / 3.0V
|
|
Receiving Current (Max)
|
11mA / 3.0V
|
|
Battery Voltage Measurement Accuracy
|
±0.1V
|
Frequency
|
TX Power
|
19dBm±1dBm
|
|
Rx Sensitivity
|
-136dBm
(LoRa，Spreading Factor=12，Bit Rate=293bps )
-121dBm
(FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
|
|
Antenna Type
|
Build-In Antenna
|
|
Communication Range
|
10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment)
|
|
Data Transfer Rate
|
0.3kbps～50kbps
|
|
Spread Technique
|
LoRa/FSK
|
|
Available Frequency
|
AU915-928，AS923
|
Physical
|
Main Body Dimension
|
57mm X 35mm X 14mm
|
|
Weight
|
48.9 G
|
|
Operating Temperature
|
-20℃ ～ 55℃
|
|
Environment Humidity Range
|
<90% RH (No Condensation)
|
|
Storage Temperature
|
-40℃ ～ 85
|
