Description

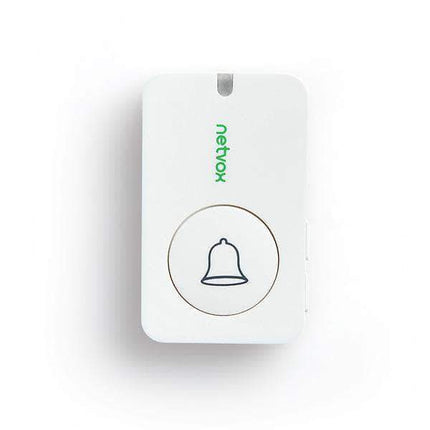

R313M Netvox LoRaWAN Wireless Door Bell Button
The Netvox R313M is a wireless LoRaWAN doorbell control device that detects the closing or disconnecting signal of the wireless doorbell switch and sends a wireless doorbell signal to the gateway for processing. The R313M uses the SX1276 wireless communication module. The wireless doorbell does not require wiring and is simple and flexible to install, and the communication is fully compatible with LoRaWAN™ Protocol (Class A).
Features:
-
Wireless Range Of 10 Km
-
LoRaWAN™ Class A Compatible
-
Frequency Hopping Spread Spectrum (FHSS)
-
Improved Interference Immunity
-
Improved Power Management For Longer Battery Life
-
Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
-
Battery Life*2:
⁻ 5 Years
(Conditions: Ambient Temperature 25 °C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
-
Over-The-Air Updates
-
Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
-
Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
Battery: https://www.iot-store.com.au/products/lithium-button-cell-battery-cr2450-3v-600mah
Electric:
|
Input Power
|
2pcs 3V CR2450 Button Battery
|
|
Working Voltage
|
DC 2.4V～3V
|
|
Standby Current
|
14uA/3.0V
|
|
Transmitting Current (Max)
|
120mA/3.0V
|
|
Receiving Current (Max)
|
11mA @3.0V
|
|
Low Voltage Threshold
|
2.4V
|
|
Battery Voltage Measurement Accuracy
|
±0.1V
|
Frequency:
|
Frequency Range
|
863MHz-928MHz 470MHz-510MHz
|
|
TX Power
|
19dBm±1dBm
|
|
Rx Sensitivity
|
-136dBm
(LoRa，Spreading Factor=12，Bit Rate=293bps )
-121dBm
(FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
|
|
Antenna Type
|
Build-In Antenna
|
|
Communication Range
|
Up To 10km, The Actual Transmission Distance Depends On The Environment.
|
|
Data Transfer Rate
|
0.3kbps～50kbps
|
|
Spread Technique
|
LoRa/FSK
|
|
Available Frequency
|
AU915-928, AS923
|
Physical:
|
Main Body Dimension
|
57mm X 35mm X 15.2mm
|
|
Weight
|
45g
|
|
Operating Temperature
|
-20℃ ～ 55℃
|
|
Environment Humidity Range
|
<90% RH (No Condensation)
|
|
Storage Temperature
|
-40℃ ～ 85℃
|
Documentation:
Datasheet
User manual
Netvox LoRaWAN Catalog
Battery Calculator:
Netvox Battery Calculator
Netvox LoRa Command Resolver:
Payload Format and Examples
Netvox LoRaWAN Application Command V1.9
Netvox LoRaWAN Application Devicetype V1.9
Example of payload (ConfigureCmd)_R718CK2
example of payload (ReportDataCmd)
Frequency Conversion (Sub frequencies of AU915)
Lora Calibrate Tool User Manual
Programming Instruction STlink
