Description

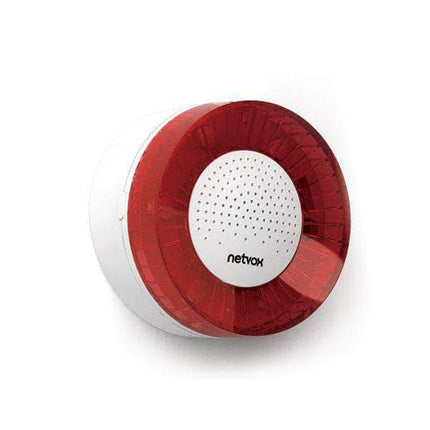

R602A Netvox LoRaWAN Wireless Siren
R602A is an intelligent wireless alarm that can communicate with other devices through LoRaWAN wireless network. It has high-power speakers and high-brightness LEDs for sound and light alarms. It uses SX1276 LoRaWAN wireless communication module.
Features:
-
Wireless Range Of 10 Km
-
LoRaWAN™ Class A Compatible
-
Frequency Hopping Spread Spectrum (FHSS)
-
Improved Interference Immunity
-
Improved Power Management For Longer Battery Life
-
Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
-
Battery Life*2:
⁻ 5 Years
(Conditions: Ambient Temperature 25 °C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
-
Over-The-Air Updates (Future)
-
Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
-
Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
Electric
|
Input Power
|
DC +12V
|
|
Working Current (Max)
|
250mA(DC 12V)
|
|
Standby Current (Max)
|
30mA(DC 12V)
|
|
Alarm Sound Level
(At Three Meters)
|
>=80dB
|
|
Alarm Light Illumination
|
LUX(TBD)
|
Frequency
|
Frequency Range
|
863MHz-928MHz 470MHz-510MHz
|
|
TX Power
|
19dBm±1dBm
|
|
Rx Sensitivity
|
-136dBm
(LoRa，Spreading Factor=12，Bit Rate=293bps )
-121dBm
(FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
|
|
Antenna Type
|
Build-In Antenna
|
|
Communication Range
|
Up To 10km, The Actual Transmission Distance Depends On The Environment.
|
|
Data Transfer Rate
|
0.3kbps～50kbps
|
|
Spread Technique
|
LoRa/FSK
|
|
Available Frequency
|
AU915-928，AS923
|
Physical
|
Dimension
|
Φ85mm * 52mm
|
|
Environment Temperature
|
-20℃ ～ 55℃
|
|
Environment Humidity Range
|
<90% RH (No Condensation)
|
