R718B Netvox LoRaWAN Wireless Temperature Sensor
R718B Netvox LoRaWAN Wireless Temperature Sensor

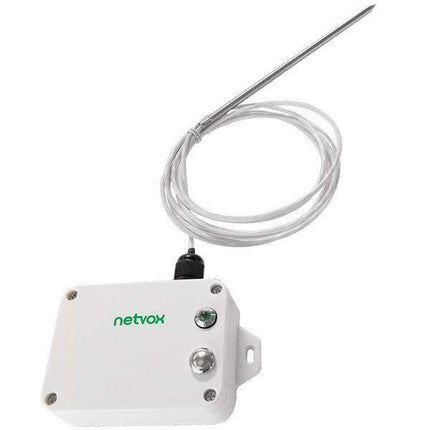

The Netvox R718B LoRaWAN Sensor is used to detect the temperature of medium and objects. R718B carries PT100 platinum thermal resistor. It uses SX1276 LoRWAN wireless communication module.
Features:
-
LoRaWAN™ Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management For Longer Battery Life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
- Battery Life: Please Refer To Web: Http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
- Over-The-Air Updates
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects
Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell
Electric:
|
Input Power |
2 X 3.6V ER14505 AA Lithium Batteries |
|
Sleeping Mode |
21uA |
|
Wake Up Mode |
6.3mA@3.3V |
|
Receiving Current (Max) |
11mA @3.3V |
|
Transmitting Current (Max) |
120mA/3.3V |
|
Battery Voltage Measurement |
±0.1V |
|
Low Voltage Threshold |
3.2V |
Frequency:
|
TX Power |
19dBm±1dBm |
|
Rx Sensitivity |
-136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps ) |
|
Antenna Type |
Build-In Antenna |
|
Communication Range |
10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment) |
|
Data Transfer Rate |
0.3kbps～50kbps |
|
Spread Technique |
LoRa/FSK |
|
Available Frequency |
AU915-928, AS923 |
Physical:
|
Dimension |
Main Part: L: 112mm*W: 65mm*H: 32mm |
|
Weight |
141g |
|
Environment Temperature Range |
-20℃ ～ 55℃ |
|
Environment Humidity Range |
<90% RH (No Condensation) |
|
Storage Temperature |
-40℃ ～ 85℃ |
Documentation:
Payload Format and Examples
Netvox LoRaWAN Application Command V1.9
Netvox LoRaWAN Application Devicetype V1.9
Example of payload (ConfigureCmd)_R718CK2
example of payload (ReportDataCmd)
Frequency Conversion (Sub frequencies of AU915)
Lora Calibrate Tool User Manual
Programming Instruction STlink
