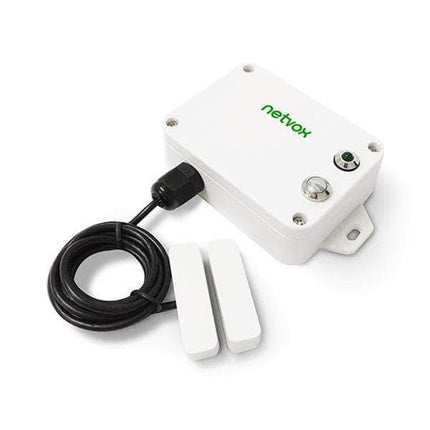

R718F Netvox LoRaWAN Wireless Reed Switch Open/Close Detection Sensor
R718F utilizes a reed switch to detect whether two objects are separated or not. An example of R718F’s application is to detect the state of a door or window for security purposes. It is based on SX1276 wireless communication module, and the communication is fully compatible with LoRaWAN™ Protocol (Class A).
The reed switch is on (conducting) within the magnetic range, and is off (non-conducting) when it's out of the magnetic range. The module can detect the closing and opening signals so that the state of the door window status can be detected.
Features:
-
Wireless Range Of 10 Km
-
LoRaWAN™ Class A Compatible
-
Frequency Hopping Spread Spectrum (FHSS)
-
Improved Interference Immunity
-
Improved Power Management For Longer Battery Life
-
Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
-
Battery Life*2:
⁻ 5 Years
(Conditions: Ambient Temperature 25 °C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
-
Over-The-Air Updates
-
Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
-
Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell
Electric
|
Input Power
|
2 X 3.6V ER14505 AA Lithium Batteries
(3.6V2400mah/Section）
|
|
Sleeping Mode
|
20uA
|
|
Wake Up Mode
|
6.3mA@3.3V
|
|
Receiving Current (Max)
|
11mA @3.3V
|
|
Transmitting Current (Max)
|
120mA/3.3V
|
|
Battery Voltage Measurement
Accuracy
|
±0.1V
|
|
Low Voltage Threshold
|
3.2V
|
Frequency
|
TX Power
|
19dBm±1dBm
|
|
Rx Sensitivity
|
-136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
|
|
Antenna Type
|
Build-In Antenna
|
|
Communication Range
|
10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment)
|
|
Data Transfer Rate
|
0.3kbps～50kbps
|
|
Spread Technique
|
LoRa/FSK
|
|
Available Frequency
|
AU915-928, AS923
|
Physical
|
Dimension
|
Main Part: L: 112mm*W: 65mm*H: 32mm
|
|
Weight
|
141g
|
|
Environment Temperature Range
|
-20℃ ～ 55℃
|
|
Environment Humidity Range
|
<90% RH (No Condensation)
|
|
Storage Temperature
|
-40℃ ～ 85℃
|
|
IP Rating (Main Part)
|
IP67
|
|
IP Rating (External Sensor)
|
IP67
|
