Description

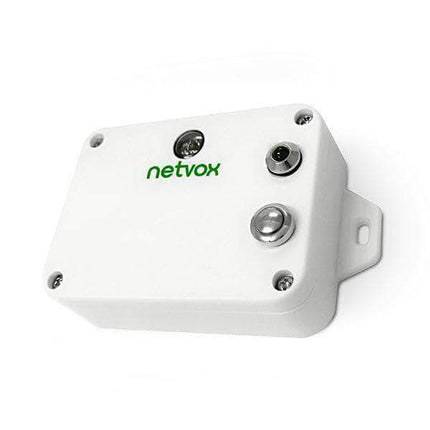

R718G Netvox LoRaWAN Wireless Light Sensor
The Netvox R718G LoRaWAN device has a built-in light sensor that can be used for ambient light intensity detection. It uses the SX1276 LoRaWAN wireless communication module. The R718G detects the ambient light intensity value and adds it to the gateway. The collected data is displayed in other devices.
Frequency Range: AU915-928，AS923
Features:
-
Compatible With LoRaWAN™ Protocol
-
2 X CR2450 3V Button Batteries
-
Built-In Antenna
-
Simple Operation And Device Configuration
-
Reports Battery Voltage And Light Level
Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell
Electric:
|
Input Power
|
2 X 3.6V ER14505 AA Lithium Batteries
(3.6V2400mah/Section）
|
|
Sleeping Mode
|
18uA
|
|
Wake Up Mode
|
6.3mA@3.3V
|
|
Receiving Current (Max)
|
11mA @3.3V
|
|
Transmitting Current (Max)
|
120mA/3.3V
|
|
Battery Voltage Measurement
Accuracy
|
±0.1V
|
|
Low Voltage Threshold
|
3.2V
|
Frequency:
|
TX Power
|
19dBm±1dBm
|
|
Rx Sensitivity
|
-136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
|
|
Antenna Type
|
Build-In Antenna
|
|
Communication Range
|
10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment)
|
|
Data Transfer Rate
|
0.3kbps～50kbps
|
|
Spread Technique
|
LoRa/FSK
|
|
Available Frequency
|
AU915, AS923
|
Physical:
|
Dimension
|
Main Part: L: 112mm*W: 65mm*H: 32mm
|
|
Weight
|
150g
|
|
Environment Temperature Range
|
-20℃ ～ 55℃
|
|
Environment Humidity Range
|
<90% RH (No Condensation)
|
|
Storage Temperature
|
-40℃ ～ 85℃
|
Documentation:
Datasheet
User manual
Netvox LoRaWAN Catalog
Battery Calculator:
Netvox Battery Calculator
Netvox LoRa Command Resolver:
Payload Format and Examples
Netvox LoRaWAN Application Command V1.9
Netvox LoRaWAN Application Devicetype V1.9
Example of payload (ConfigureCmd)_R718CK2
example of payload (ReportDataCmd)
Frequency Conversion (Sub frequencies of AU915)
Lora Calibrate Tool User Manual
Programming Instruction STlink
