R718IA Netvox LoRaWAN Wireless 0-5V ADC Sampling Interface

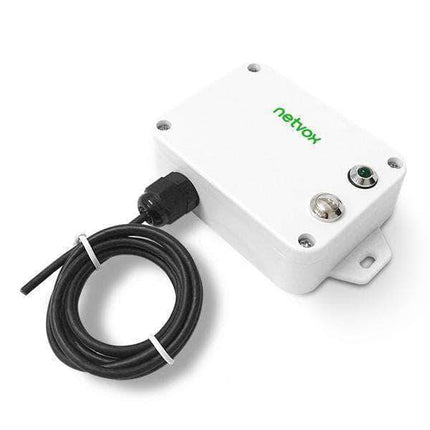

The Netvox R718IA LoRaWAN Sensor can be connected to an ADC sampling interface device. R718IA uses the SX1276 wireless communication module. The wireless communication is compatible with LoRaWAN protocol (class A).
The black cable is the ground line, red is the ADC sampling interface line, and the ADC sampling voltage range is 0-5V or 0-10V.
Features:
Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell
Electric:
|
Input Power
|
2 X 3.6V ER14505 AA Lithium Batteries
(3.6V2400mah/Section）
|
|
Sleeping Mode
|
22uA
|
|
Wake Up Mode
|
6.3mA@3.3V
|
|
Receiving Current (Max)
|
11mA @3.3V
|
|
Transmitting Current (Max)
|
120mA/3.3V
|
|
Battery Voltage Measurement
Accuracy
|
±0.1V
|
|
Low Voltage Threshold
|
3.2V
|
Frequency:
|
TX Power
|
19dBm±1dBm
|
|
Rx Sensitivity
|
-136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
|
|
Antenna Type
|
Build-In Antenna
|
|
Communication Range
|
10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment)
|
|
Data Transfer Rate
|
0.3kbps～50kbps
|
|
Spread Technique
|
LoRa/FSK
|
|
Available Frequency
|
AU915, AS923
|
Physical:
|
Dimension
|
Main Part: L: 112mm*W: 65mm*H: 32mm
|
|
Weight
|
141g
|
|
Environment Temperature Range
|
-20℃ ～ 55℃
|
|
Environment Humidity Range
|
<90% RH (No Condensation)
|
|
Storage Temperature
|
-40℃ ～ 85℃
|
|
IP Rating (Main Part)
|
IP67
|
|
IP Rating (External Sensor)
|
IP65
|
Documentation:
Datasheet
User Manual
Netvox LoRaWAN Catalog
Battery Calculator:
Netvox Battery Calculator
Netvox LoRa Command Resolver:
Payload Format and Examples
Netvox LoRaWAN Application Command V1.9
Netvox LoRaWAN Application Devicetype V1.9
Example of payload (ConfigureCmd)_R718CK2
example of payload (ReportDataCmd)
Frequency Conversion (Sub frequencies of AU915)
Lora Calibrate Tool User Manual
Programming Instruction STlink
