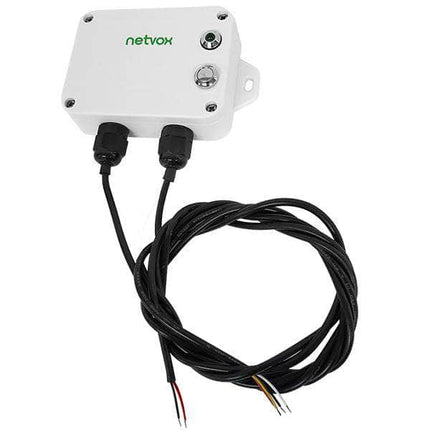

R718IJK LoRaWAN Wireless Multi-Sensor Interface For Industrial Sensors (0-24V ADC, Dry Contact and 4-20mA Sensors)
The R718IJK LoRaWAN Wireless Multi-Sensor Interface is used for detecting 4mA-20mA signal, 0-24 VDC/ADC samples and dry contact features which employs SX1276 wireless communication module. Its wireless communication meets standard LoRaWAN™ Protocol (Class A).
Features:
Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell
Electric:
|
Power Supply
|
2 ER14505 Lithium Batteries
(3.6 V, 2400mAh / Section) In Parallel
|
|
Battery Life
|
Battery Life Of 5 Years (Condition: Ambient Temperature 25 ℃, Report Once Every 15min, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
|
|
Sleep Current
|
22.7 UA
|
|
Wake-Up Current
|
6.3mA @ 3.3V
|
|
RF Receiving Current
|
11 MA @ 3.3V
|
|
RF Emission Current
|
120mA @ 3 .3 V
|
|
Battery Measurement Accuracy
|
± 0.1V
|
* Specific Electrical Characteristics Will Vary Depending On The Power Supply Voltage
Frequency:
|
Frequency Range
|
863MHz-928MHz 470MHz-510MHz
|
|
Power Output
|
US915 20dbm；
AS923 16dbm；
AU915 20dbm；
CN470 19.15dbm；
EU868 16dbm；
KR920 14dbm；
IN865 20dbm；
|
|
Receive Sensitivity
|
-136dBm
(LoRa, Spreading Factor = 12, Bit Rate = 293bps);
-121 DBm
( FSK, Frequency Deviation = 5kHz, Bit Rate = 1.2kbps)
|
|
Antenna Type
|
Built-In Antenna
|
|
Communication Distance
|
Up To 10 Km
(Visible Straight - Line Barrier-Free Transmission Distance, The Actual Transmission Distance Depends On The Environment )
|
|
Data Transfer Rate
|
0.3kbps ～ 50k Bps
|
|
Modulation System Mode
|
LoRa / FSK (Note: Choose One Of Them)
|
|
Supported LoRaWAN Band
|
AU915-928, AS923
|
Physical:
|
Size
|
L: 112 Mm * W: 88.19 Mm * H: 32 Mm
|
|
Body Weight
|
Approximately 141 G
|
|
Ambient Temperature Range
|
-20℃ ～ 55℃
|
|
Ambient Humidity Range
|
<90% RH (Non-Condensing)
|
Documentation:
Datasheet
User Manual
Netvox LoRaWAN Catalog
Battery Calculator:
Netvox Battery Calculator
Netvox LoRa Command Resolver:
Payload Format and Examples
Netvox LoRaWAN Application Command V1.9
Netvox LoRaWAN Application Devicetype V1.9
Example of payload (ConfigureCmd)_R718CK2
example of payload (ReportDataCmd)
Frequency Conversion (Sub frequencies of AU915)
Lora Calibrate Tool User Manual
Programming Instruction STlink
