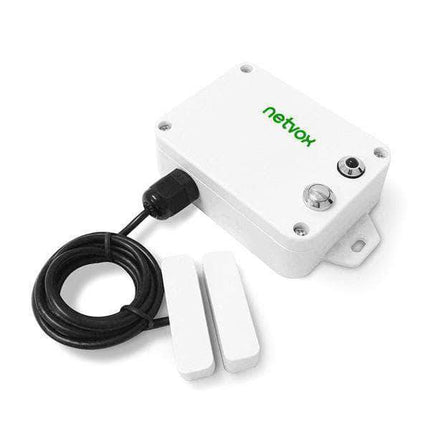

R718LB Netvox LoRaWAN Wireless Hall Type Open/Close Detection Sensor

Description

R718LB Netvox LoRaWAN Wireless Hall Type Open/Close Detection Sensor

R718LB device is equipped with a hall sensor, which can be used for door and window switch state detection. R718LB can realize wireless alarm and other functions through the built-in wireless module. R718LB applies SX1276 wireless communication module. Its wireless communication meets standard LoRaWAN™ Protocol (Class A).

Features:

  • LoRaWAN™ Class A compatible
  • Frequency Hopping Spread Spectrum (FHSS)
  • Improved Interference Immunity
  • Improved Power Management For Longer Battery Life
  • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
  • Battery Life: Please Refer To Web: Http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
  • Over-The-Air Updates
  • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
  • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
  • R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects

      Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell

      Electric

      Input Power

      2 X 3.6V ER14505 AA Lithium Batteries
      (3.6V 2400mah/Section)

      Sleeping Mode

      23uA

      Wake Up Mode

      6.3mA@3.3V

      Receiving Current (Max)

      11mA @3.3V

      Transmitting Current (Max)

      120mA/3.3V

      Battery Voltage Measurement
      Accuracy

      ±0.1V

      Low Voltage Threshold

      3.2V


      Frequency

      TX Power

      19dBm±1dBm

      Rx Sensitivity

      -136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
      -121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)

      Antenna Type

      Build-In Antenna

      Communication Range

      Up To10 Km, The Actual Transmission Distance Depends On The Environment.

      Data Transfer Rate

      0.3kbps~50kbps

      Spread Technique

      LoRa/FSK

      Available Frequency

      AU915-928,AS923


      Physical

      Dimension

      Main Part: L: 112mm*W: 65mm*H: 32mm

      Weight

      150g

      Environment Temperature Range

      -20℃ ~ 55℃

      Environment Humidity Range

      <90% RH  (No Condensation)

      Storage Temperature

      -40℃ ~ 85℃



      Documentation:

      Datasheet

      User Manual



      Netvox LoRaWAN Catalog

      Payload Format and Examples

      Netvox LoRaWAN Application Command V1.9

      Netvox LoRaWAN Application Devicetype V1.9

      Example of payload (ConfigureCmd)_R718CK2

      example of payload (ReportDataCmd)

      Frequency Conversion (Sub frequencies of AU915)

      Lora Calibrate Tool User Manual

      Programming Instruction STlink



      R718LB Netvox LoRaWAN Wireless Hall Type Open/Close Detection Sensor

      Product form
      Free pickup in our shop(s)

      SKU: R718LB-915

      $199.00 $149.00 Excl. GST

      $199.00 $149.00
      Product available in stock.

        • We ship from our stock in AU (Perth), pickup by prior booking
        • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
        • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

        Description

        R718LB Netvox LoRaWAN Wireless Hall Type Open/Close Detection Sensor

        R718LB device is equipped with a hall sensor, which can be used for door and window switch state detection. R718LB can realize wireless alarm and other functions through the built-in wireless module. R718LB applies SX1276 wireless communication module. Its wireless communication meets standard LoRaWAN™ Protocol (Class A).

        Features:

        • LoRaWAN™ Class A compatible
        • Frequency Hopping Spread Spectrum (FHSS)
        • Improved Interference Immunity
        • Improved Power Management For Longer Battery Life
        • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
        • Battery Life: Please Refer To Web: Http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
        • Over-The-Air Updates
        • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
        • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
        • R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects

            Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell

            Electric

            Input Power

            2 X 3.6V ER14505 AA Lithium Batteries
            (3.6V 2400mah/Section)

            Sleeping Mode

            23uA

            Wake Up Mode

            6.3mA@3.3V

            Receiving Current (Max)

            11mA @3.3V

            Transmitting Current (Max)

            120mA/3.3V

            Battery Voltage Measurement
            Accuracy

            ±0.1V

            Low Voltage Threshold

            3.2V


            Frequency

            TX Power

            19dBm±1dBm

            Rx Sensitivity

            -136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
            -121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)

            Antenna Type

            Build-In Antenna

            Communication Range

            Up To10 Km, The Actual Transmission Distance Depends On The Environment.

            Data Transfer Rate

            0.3kbps~50kbps

            Spread Technique

            LoRa/FSK

            Available Frequency

            AU915-928,AS923


            Physical

            Dimension

            Main Part: L: 112mm*W: 65mm*H: 32mm

            Weight

            150g

            Environment Temperature Range

            -20℃ ~ 55℃

            Environment Humidity Range

            <90% RH  (No Condensation)

            Storage Temperature

            -40℃ ~ 85℃



            Documentation:

            Datasheet

            User Manual



            Netvox LoRaWAN Catalog

            Payload Format and Examples

            Netvox LoRaWAN Application Command V1.9

            Netvox LoRaWAN Application Devicetype V1.9

            Example of payload (ConfigureCmd)_R718CK2

            example of payload (ReportDataCmd)

            Frequency Conversion (Sub frequencies of AU915)

            Lora Calibrate Tool User Manual

            Programming Instruction STlink
