Description

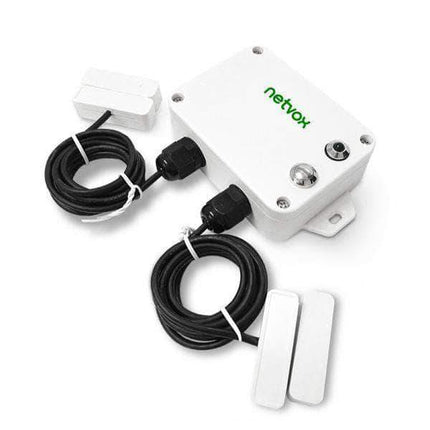

R718LB2 Netvox LoRaWAN Wireless 2-Gang Hall Type Open/Close Detection Sensor
R718LB2 device is equipped with 2-Gang hall sensors, which can be used for door and window switch state detection. R718LB2 can realize wireless alarm and other functions through the built-in wireless module. R718LB2 applies SX1276 wireless communication module. Its wireless communication meets standard LoRaWAN™ Protocol (Class A).
Features:
Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell
Electric
|
Input Power
|
2 X 3.6V ER14505 AA Lithium Batteries
(3.6V 2400mah/Section）
|
|
Battery Life Time
|
Battery Life Is 5 Years (Condition: Ambient Temperature 25℃ , Report Once Every 15 Minutes, Txpower = 20 DBm, LoRa Spreading Factor SF = 10)
|
|
Sleeping Mode
|
26uA
|
|
Wake Up Mode
|
6.3mA@3.3V
|
|
Receiving Current (Max)
|
11mA @3.3V
|
|
Transmitting Current (Max)
|
120mA/3.3V
|
|
Battery Voltage Measurement
Accuracy
|
±0.1V
|
Frequency
|
TX Power
|
19dBm±1dBm
|
|
Rx Sensitivity
|
-136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
|
|
Antenna Type
|
Build-In Antenna
|
|
Communication Range
|
10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment)
|
|
Data Transfer Rate
|
0.3kbps～50kbps
|
|
Spread Technique
|
LoRa/FSK
|
|
Available Frequency
|
AU915-928, AS923
|
Physical
|
Dimension
|
L: 112mm*W: 65mm*H: 32mm
|
|
Weight
|
150g
|
|
Environment Temperature Range
|
-20℃ ～ 55℃
|
|
Environment Humidity Range
|
<90% RH (No Condensation)
|
|
Storage Temperature
|
-40℃ ～ 85℃
|
Documentation:
Datasheet
User Manual
Netvox LoRaWAN Catalog
Payload Format and Examples
Netvox LoRaWAN Application Command V1.8.6
Example of payload (ConfigureCmd)_R718CK2
example of payload (ReportDataCmd)
Frequency Conversion (Sub frequencies of AU915)
Lora Calibrate Tool User Manual
Programming Instruction STlink
