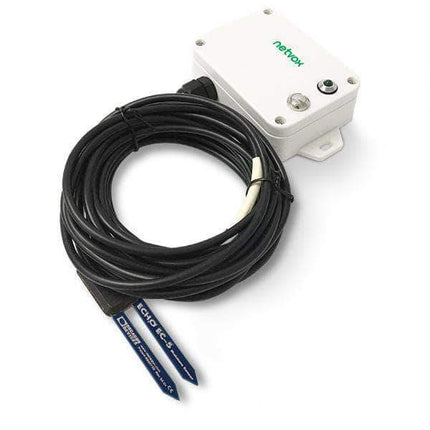

R718PB13 Netvox LoRaWAN Wireless Soil Moisture Sensor
R718PB13 Netvox LoRaWAN Wireless Soil Moisture Sensor
The Netvox R718PB13 device is a wireless communication device that detects the moisture content of the soil. R718PB13 can detect the moisture content of the soil and transmit the detected data to other devices through the wireless network. R718PB13 uses the SX1276 LoRaWAN wireless communication method. The device is compatible with the LoRaWAN protocol (Class A).
Features:
-
LoRaWAN™ Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management For Longer Battery Life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
- Battery Life: Please Refer To Web: Http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
- Over-The-Air Updates
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects
Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell
Electric
|
Power Supply |
2 Secctions Of ER14505 Battery AA SIZE (3.6V / Section) Parallel Power Supply |
|
Operating Current |
Battery Life Is About 3.4 Years (Condition: Ambient Temperature 25 ° C, Report Once Every 15 Mins, Txpower = 20 DBm, LoRa Spread Factor SF = 10) |
|
Sleeping Current |
38uA |
|
Wake Up Current |
6.3mA@3.3V |
|
TX Current |
120mA @3.3V |
|
RX Current |
11mA @3.3V |
|
Battery Measurement Accuracy |
±0.1V |
Frequency
|
Frequency Range |
AU915-928，AS923 |
|
TX Power |
19dBm±1dBm |
|
Rx Sensitivity |
-136dBm |
|
Antenna Type |
Build-In Antenna |
|
Communication Range |
Up To 10 Km, The Actual Transmission Distance Depends On The Environment. |
|
Data Transfer Rate |
0.3kbps～50kbps |
|
Spread Technique |
LoRa/FSK |
|
Available Frequency |
AU915-928, AS923 |
Physical
|
Size |
L: 112mm*W: 65mm*H: 32mm |
|
Ambient Temperature Range |
-20°C To 55°C |
|
Body Weight |
160g |
|
Ambient Humidity Range |
<90% RH (Non-Condensing) |
|
Storage Temperature Range |
-40°C To 85°C |
Documentation:
User Manual
Payload Format and Examples
Netvox LoRaWAN Application Command V1.8.6
Example of payload (ConfigureCmd)_R718CK2
example of payload (ReportDataCmd)
Frequency Conversion (Sub frequencies of AU915)
Lora Calibrate Tool User Manual
Programming Instruction STlink
