Description

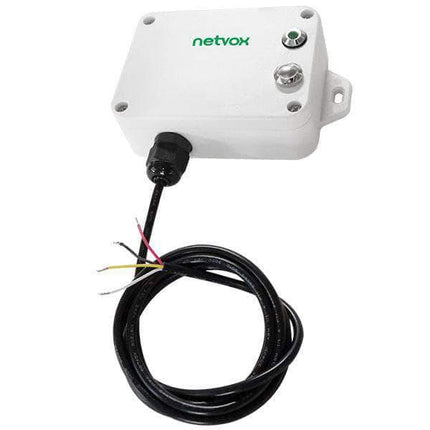

R718PDA Netvox Wireless LoRaWAN to RS232 Serial Port Transmission
The Netvox R718PDA LoRaWAN supports RS232 serial port transparent transmission (RS232 sensor power supply is DC12V), which can send read commands to the sensor supporting RS232 protocol according to the configured cycle time. The information of sensor reply will be directly reported to the gateway, and displayed in the interface on the gateway. The R718PDA uses SX1276 LoRaWAN wireless communication.
Features:
-
Wireless Range of 10km
- LoRaWAN Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management for Longer Battery Life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)
- Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
- Over-The-Air Updates (Future)
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data
- And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects
Electric:
|
Power Supply
|
DC 12V Adapter Power Supply
|
|
Working Current
|
TBD
|
Frequency:
|
Frequency Range
|
863MHz-928MHz 470MHz-510MHz
|
|
TX Power
|
19dBm±1dBm
|
|
Rx Sensitivity
|
-136dBm
(LoRa，Spreading Factor=12，Bit Rate=293bps )
-121dBm
(FSK, Frequency Deviation=5kHz, Bit Rate=1.2kbps)
|
|
Antenna Type
|
Build-In Antenna
|
|
Communication Range
|
Up To 10 Km, The Actual Transmission Distance Depends On The Environment.
|
|
Data Transfer Rate
|
0.3kbps～50kbps
|
|
Spread Technique
|
LoRa/FSK
|
|
Available Frequency
|
AU915-928, AS923
|
Physical:
|
Dimension
|
L:112mm*W:88.19mm*H:32mm
|
|
Weight
|
160g
|
|
Working Temp
|
-20°C ～ +55°C
|
|
Storage Temp
|
-40°C ～ +85°C
|
|
Humidity Detecting Range
|
＜90%RH (Noncondensing)
|
