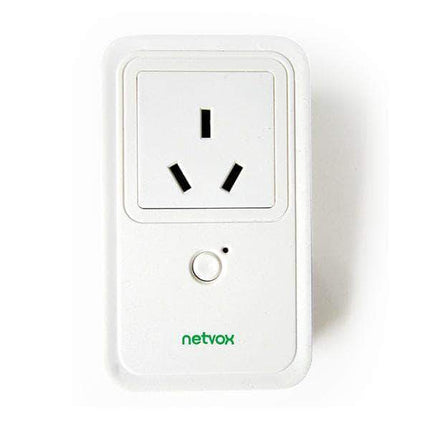

R809A Netvox LoRaWAN Wireless Power Plug with Power Meter
The R809A is a wireless power plug converter for indoor use. It can remotely control the output switch and detect the output power. It integrates the LoRa/FSK modulation communication wireless module SX1276, which can realize wireless remote control. R809A has a 10A/230VAC output load capability and is primarily used to measure electrical power consumption and wireless switch control.
The wireless communication is compatible with LoRaWAN™ Protocol (ClassC).
Features:
-
Wireless Range of 10km
- LoRaWAN Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management for Longer Battery Life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)
- Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
- Over-The-Air Updates (Future)
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data
- And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects
Electric:
|
Rated Working Power Supply
|
100-240VAC, 50/60Hz
|
|
Typical Operating Current
|
15mA/220VAC/1W
|
|
Typical Load Characteristics
|
Resistive Load: 16A/250VAC; P: 4000VA
Inductive Load: 8A/220VAC; P: 1760VA (COSφ=0.4)
Motor Load: 1.5HP/240VAC
White Lamp, Fluorescent Lamp, Gold Halogen Lamp: 3000W/220VAC
|
|
Relay Switch Life Times
|
100,000 Times
|
|
Current Measurement Accuracy Range
|
100mA~16A
|
|
Energy Measurement Error
|
<+-1%
|
Frequency:
|
TX Power
|
19dBm±1dBm
|
|
Rx Sensitivity
|
-136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
|
|
Antenna Type
|
Build-In Antenna
|
|
Communication Range
|
10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment)
|
|
Data Transfer Rate
|
0.3kbps～50kbps
|
|
Spread Technique
|
LoRa/FSK
|
|
Available Frequency
|
AU915 - AS923
|
Physical:
|
Dimension
|
95mm*58mm*42.5mm (Without Plug Part)
|
|
Environment Temperature Range
|
-20℃ ～ 50℃
|
|
Environment Humidity Range
|
<90% RH (No Condensation)
|
|
Storage Temperature
|
-40℃ ～ 85℃
|
Documentation:
Datasheet
User manual
Netvox LoRaWAN Catalog
Payload Format and Examples
Netvox LoRaWAN Application Command V1.9
Netvox LoRaWAN Application Devicetype V1.9
Example of payload (ConfigureCmd)_R718CK2
example of payload (ReportDataCmd)
Frequency Conversion (Sub frequencies of AU915)
Lora Calibrate Tool User Manual
Programming Instruction STlink
