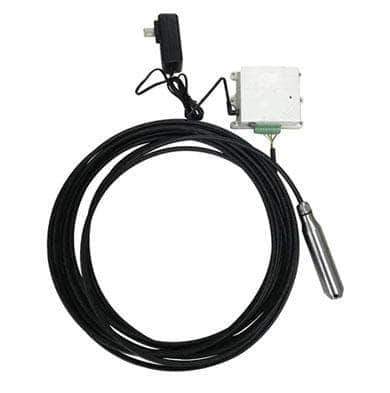

RA0711 Netvox LoRaWAN Wireless Liquid Level Sensor
The RA0711 is a wireless communication device that detects the depth of liquid. RA0711 detects the depth of liquid in the container. The wireless liquid level sensor uses a solid state, continuous (multilevel) fluid level sensor for measuring levels in water, non-corrosive water-based liquids and dry fluids (powders). The communication is fully compatible with LoRaWAN™ Protocol (Class A).
Features:
-
Wireless Range of 10 Km
-
LoRaWAN™ Class A Compatible
-
Frequency Hopping Spread Spectrum (FHSS)
-
Improved Interference Immunity
-
Improved Power Management For Longer Battery Life
-
Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
-
Battery Life*2:
⁻ 5 Years
(Conditions: Ambient Temperature 25 °C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
-
Over-The-Air Updates
-
Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
-
Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
Electric
| Power Supply
|
Adapter DC Powered（12V/1.5A）
|
|
Working Current
|
<90mA
|
|
RX Current
|
11mA @3.3V
|
|
TX Current
|
120mA @3.3V
|
|
Water Level Sensor Measurement Range
|
0-50m（Optional）
|
|
Water Level Sensor Accuracy
|
0.25%FS
|
Frequency
| Frequency Range
|
AU915MHz，923MHz
|
|
TX Power
|
19dBm（Typical）
|
|
Rx Sensitivity
|
-121dBm
(Frequency Deviation=5kHz,Bit Rate=1.2kb/S)
|
|
Build-In Antenna
|
Build-In Antenna
|
|
Communication Range
|
2km（Typical Output Power）
|
|
Data Transfer Rate
|
1.2～50kbps
|
|
Spread Technique
|
FSK/OOK
|
Physical
| Dimension
|
111mm*86mm*41mm
|
|
Working Temp
|
-10°C ～ +50°C
|
|
Storage Temp
|
-40°C ～ +85°C
|
