Description

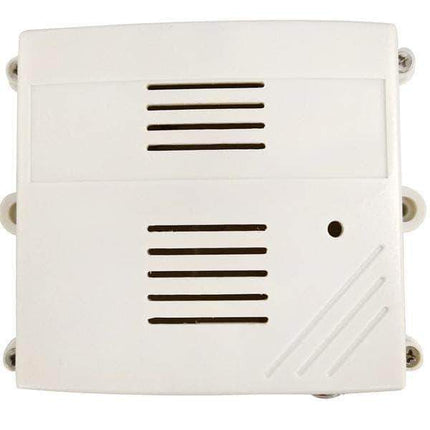

RA0715 Netvox LoRaWAN Wireless CO2 Temperature Humidity Sensor
Netvox RA0715 is designed to monitor temperature, humidity and CO2 for indoor air quality (IAQ) applications based on loRaWAN wireless connectivity. The communication is fully compatible with LoRaWAN™ Protocol (Class A).
Features:
-
Wireless Range of 10km
- LoRaWAN Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management for Longer Battery Life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)
- Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
- Over-The-Air Updates (Future)
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data
- And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- Uses SX1276 Wireless Communication Module
Electric
|
Power Supply Power Supply
|
DC Power Supply, DC12V/1A
|
|
Operating Current 1
|
80mA (No RF Signal Emission)
|
|
Operating Current 2
|
120mA (With RF Signal Emission)
|
Frequency
|
TX Power
|
19dBm±1dBm
|
|
Rx Sensitivity
|
-136dBm
(LoRa，Spreading Factor=12，Bit Rate=293bps )
-121dBm
(FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
|
|
Antenna Type
|
Build-In Antenna
|
|
Communication Range
|
10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment)
|
|
Data Transfer Rate
|
0.3kbps～50kbps
|
|
Spread Technique
|
LoRa/FSK
|
|
Available Frequency
|
AU915-928，AS923
|
Physical
|
Dimension
|
111mm*86mm*42mm
|
|
Working Temp
|
-20°C ～ +55°C
|
|
Storage Temp
|
-40°C ～ +85°C
|
|
Humidity Detecting Range
|
＜90%RH
|
Documentation:
Datasheet
User manual
Netvox LoRaWAN Catalog
Payload Format and Examples
Netvox LoRaWAN Application Command V1.9
Netvox LoRaWAN Application Devicetype V1.9
Example of payload (ConfigureCmd)_R718CK2
example of payload (ReportDataCmd)
Frequency Conversion (Sub frequencies of AU915)
Lora Calibrate Tool User Manual
Programming Instruction STlink
