Description
RAK Raspberry Pi 4B 4GB Kit with LTE CAT 4 (4G LTE)
Cellular Gateway/Modem based on Raspberry Pi 4B 4GB.
Build your cellular developer gateway for IoT with the RAK Raspberry Pi4 base kit - including Pi 4 (4GB), case, power supply, cellular PiHAT, and antenna.
The Raspberry Pi 4 Model B is the latest addition to the popular Raspberry Pi series. It offers an excellent increase in processor speed, multimedia performance, memory, and connectivity over the previous generation Raspberry Pi 3 Model B+ while maintaining backward compatibility and similar power consumption.
- The RAK2013 PiHAT with EG95-E is an LTE Cat 4 (3G/4G) cellular modem suitable for Australia and New Zealand, etc.
|
Bands
|
EG95-E
|
|
LTE-FDD
|
B1/3/7/8/20/28A
|
|
WCDMA
|
B1/8
|
|
GSM
|
B3/8
|
|
Maximum data rates(Kbps)
|
|
LTE
|
Max. 150 (DL)/Max. 50 (UL)
|
|
DC-HSPA+
|
Max. 42 (DL)/Max. 5.76 (UL)
|
|
WCDMA
|
Max. 384 (DL)/Max. 384 (UL)
|
|
EDGE
|
Max. 296 (DL)/Max. 236.8 (UL)
|
|
GPRS
|
Max. 107 (DL)/Max. 85.6 (UL)
|
|
Supported protocols
|
|
TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/CMUX/HTTPS/SMTP/MMS/FTPS/SMTPS/SSL/FILE
|
Develop your IoT project or launch your first cellular IoT gateway with the RAK Raspberry Pi4 Kit.
To make it even better, we added heat sinks to the top of the Raspberry Pi4.
Features
Raspberry Pi4
- Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
- Memory: 4GB LPDDR4
- Connectivity: 2 .4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE, Gigabit Ethernet, 2 × USB 3.0 ports, 2 × USB 2.0 ports.
- SD card support: Micro SD card slot for loading operating system and data storage
- Input power:
- 5V DC via USB-C connector (minimum 3A1)
- Power over Ethernet (PoE)–enable (requires separate RAK PoE HAT)
- Environment: Operating temperature 0–50ºC
RAK2013 Cellular IoT HAT
- Quectel EG95-E for CAT4 LTE (based on the selected variant)
- Supports Nano SIM card
- Integrates audio codec and audio amplifier
- Integrates MikroBus interface to support sensor extended board
- Supports USB connector for higher data rate
- Supports I2C, GPIOs, UART, and ADC interfaces for Raspberry board
- Supports EEPROM to configure IOs automatically

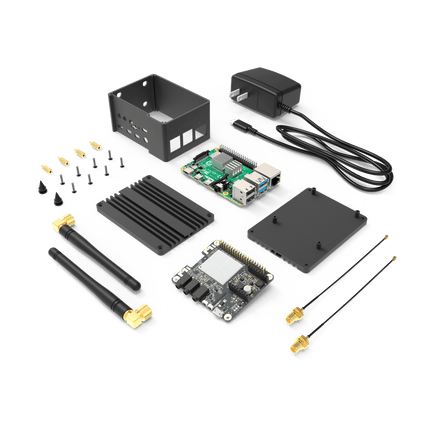

Included in the package:
- 1x Raspberry Pi 4 Model B 4GB RAM
- 1x Enclosure (92 x 68.3 x 57.2 mm)
- 1x Power adapter
- 1x RAK2013 PiHAT
- 2x LTE Antenna (1x for EG95)
