RAK Sensor Probe Modular Probe
The Sensor Probe is an accessory for the Sensor Hub solution platform. It supports up to 2 WisBlock sensors in various combinations to provide the needed data.
With the pre-selected sensor combinations, you can measure the most popular environmental parameters to build your solution quickly and easily.
The Sensor Probes are weatherproof with an IP67 rating and can be used indoors or outdoors.

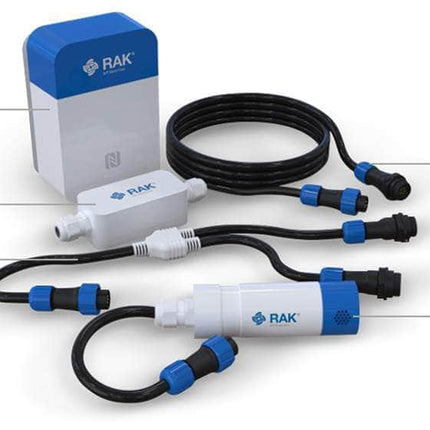

Several Sensor Probes can be connected to a single Sensor Hub port using the Splitter cable. The distance between the Sensor Hub and Sensor Probe can be extended via the Extension cable.
NOTE: The Sensor Probe could not be used as a standalone product. You need the RAK2560 Sensor Hub in order to use this probe.
Features
- Auto-identification of the sensor type
- One-wire protocol
- Waterproof (IP67-rated for the probe body)
- Supports up to 2 preselected WisBlock sensor modules per Sensor Probe
|
Sensor Probe
|
Sensor
|
Specification
|
|
Sensor Probe TH (Temperature and Humidity)
|
RAK1901
|
±2.0 °C temperature accuracy
-40 to +125 °C temperature range
±2.0 % RH humidity accuracy
0 to 100% humidity range
|
|
Sensor Probe PR
(Barometric Pressure)
|
RAK1902
|
260-1260 hPa pressure range
|
|
Sensor Probe 3X (3-Axis Acceleration)
|
RAK1904
|
User-selectable scales of ±2g/±4g/±8g/±16g
1 Hz to 5.3 kHz data acquisition rates
|
|
Sensor Probe THPR
|
RAK1901 & RAK1902
|
±2.0 °C temperature accuracy
-40 to +125 °C temperature range
±2.0 % RH humidity accuracy
0 to 100% humidity range
260-1260 hPa pressure range
|
|
Sensor Probe TH3X
|
RAK1901 & RAK1904
|
±2.0 °C temperature accuracy
-40 to +125 °C temperature range
±2.0 % RH humidity accuracy
0 to 100% humidity range
User-selectable scales of ±2g/±4g/±8g/±16g
1 Hz to 5.3 kHz data acquisition rates
|
|
Sensor Probe PR3X
|
RAK1902 & RAK1904
|
260-1260 hPa pressure range
User-selectable scales of ±2g/±4g/±8g/±16g
1 Hz to 5.3 kHz data acquisition rates
|
Sensor Probe Features:
- Auto-identification of the sensor type
- One-wire protocol
- Waterproof (IP67-rated for the probe body)
- Supports up to 2 preselected WisBlock sensor modules
