RAK Wireless WisBlock GNSS Location Module RAK1910

Description



RAK Wireless WisBlock GNSS Location Module RAK1910

RAK1910 is a WisBlock Sensor which extends the WisBlock system with GPS location capabilities. A ready to use SW library and tutorial makes it easy to build up a GPS based location tracker.

RAK1910 supports both GPS and GLONASS satellites for location acquisition. It can get a location ­x within 1 second and has a high accuracy of 2.5m in outdoor usage.

RAK1910 combined with the RAK4631 WisBlock Core is ready to go system for a GPS-based location tracker that can send location information using LoRaWan® communication, LoRa® point to point connections, and BLUETOOTH® Low Energy.

RAK1910 is ideal for battery-powered applications because of its low power consumption. In addition, the WisBlock system allows to power down the module complete to reduce the power consumption of the system even more.

RAK1910 location sensor can be joined with other WisBlock sensors like an acceleration sensor or an environment sensor to collect additional data.

Key Features

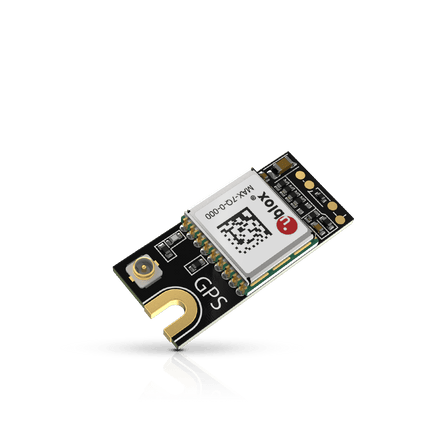

  • Using the U-Blox MAX-7Q GPS module
  • GNSS support for GPS/QZSS and GLONASS
  • Low power consumption
  • Small form factor
  • Fast location fix.
    • 29 s from cold start to first fix.
    • 1 s from hot start
  • High accuracy of 2.5m
  • 10Hz update rate
  • 1 m/s velocity accuracy
  • 5 degrees Heading accuracy

Package Inclusion

  • 1pc RAK1910
  • 1pc Active GPS Antenna

Documentation



RAK Wireless WisBlock GNSS Location Module RAK1910

Product form

SKU: RAK1910

$45.00 $40.00 Excl. GST

$40.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description



    RAK Wireless WisBlock GNSS Location Module RAK1910

    RAK1910 is a WisBlock Sensor which extends the WisBlock system with GPS location capabilities. A ready to use SW library and tutorial makes it easy to build up a GPS based location tracker.

    RAK1910 supports both GPS and GLONASS satellites for location acquisition. It can get a location ­x within 1 second and has a high accuracy of 2.5m in outdoor usage.

    RAK1910 combined with the RAK4631 WisBlock Core is ready to go system for a GPS-based location tracker that can send location information using LoRaWan® communication, LoRa® point to point connections, and BLUETOOTH® Low Energy.

    RAK1910 is ideal for battery-powered applications because of its low power consumption. In addition, the WisBlock system allows to power down the module complete to reduce the power consumption of the system even more.

    RAK1910 location sensor can be joined with other WisBlock sensors like an acceleration sensor or an environment sensor to collect additional data.

    Key Features

    • Using the U-Blox MAX-7Q GPS module
    • GNSS support for GPS/QZSS and GLONASS
    • Low power consumption
    • Small form factor
    • Fast location fix.
      • 29 s from cold start to first fix.
      • 1 s from hot start
    • High accuracy of 2.5m
    • 10Hz update rate
    • 1 m/s velocity accuracy
    • 5 degrees Heading accuracy

    Package Inclusion

    • 1pc RAK1910
    • 1pc Active GPS Antenna

    Documentation
