Description

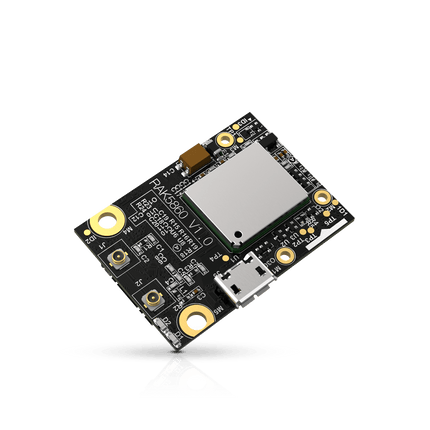

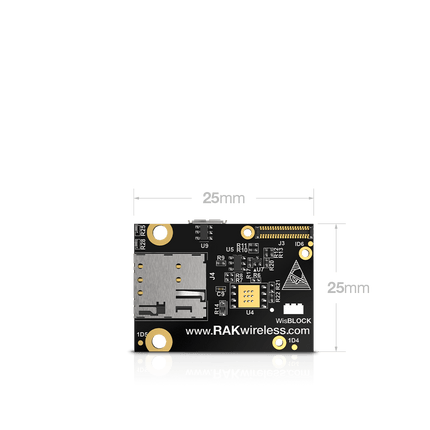

RAK Wireless WisBlock NB-IoT Interface Module RAK5860
RAK Wireless RAK5860 is a WisBlock IO that extends the WisBlock system with an LTE wireless connection. It supports beside standard LTE communication the new CAT M1 and CAT NB2 standards.
RAK5860 has in addition a GNSS location option that can use both GPS and Glonass satellites.
RAK5860 is the solution when your LoRa® application needs access to IoT but is outside the coverage of WiFi networks or LoRaWan® gateways.
RAK5860 adds wireless communication options to your solution. It can be used for example as a gateway between your LoRa nodes over LTE.
RAK5860 can be comfortably programmed with the Quectel AT command interface.
RAK5860 is ideal for battery-powered applications because the WisBlock system allows to power down the module complete to reduce the power consumption of the system.
Key Features
- Based on the Quectel BG77 module
- UART communication with WisBlock Core microcontroller
- Programmable with Quectel AT command set
- iPEX connectors for external LTE and GPS antennas
- Nano SIM and ESIM options
- Supports
- LTE CAT M1
- LTE CAT NB2
- LTD FDD
- GNSS location
Package Inclusion
- 1pc RAK5860
- 1pc Active GPS Antenna
- 1pc LTE Antenna
