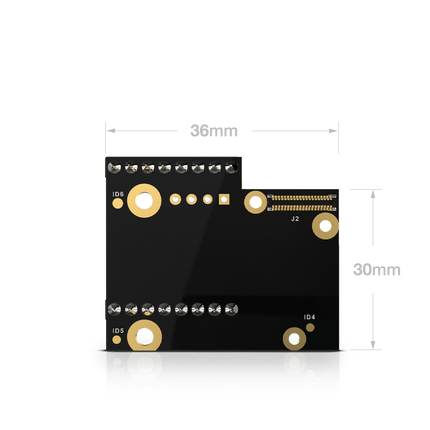

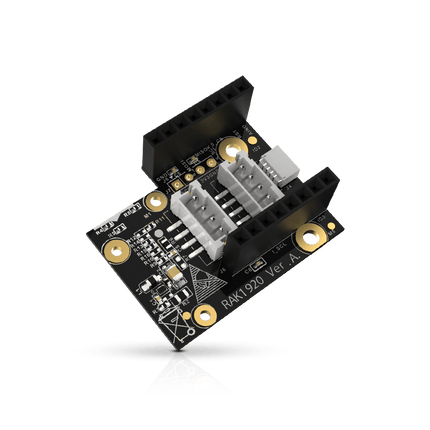

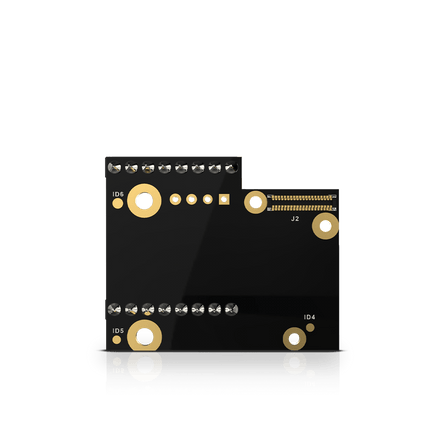

RAK Wireless WisBlock Sensor Adapter Module RAK1920
RAK1920 is a WisBlock IO which extends the WisBlock system with the option to connect sensor breakouts from MikroElektronika, Sparkfun and SeeedStudio to WisBlock.
RAK1920 is the interface to all Click! boards of MikroElektronika. Its second connector supports all 3.3V modules of Sparkfun with the QWIIC connector. And it has two Grove compatible connectors. The first connector is for all I2C and digital IO Grove sensors from SeeedStudio, the second one supports UART and analog Grove sensors.
RAK1920 combined with the RAK4631 WisBlock Core gives your solution an interface to standard sensors of MikroElektronika, Sparkfun, and SeeedStudio. This interface is the bridge between such sensors and LoRaWan® communication, LoRa® point to point connections or BLE.
RAK1920 is ideal for battery-powered applications because the WisBlock system allows to power down the module complete to reduce the power consumption of the system even more.
Key Features
- Sensor adapter board to connect Click!, QWICC based, and Grove-based sensors to WisBlock.
- Small form factor
- 1 Click! compatible slot
- 2 Grove compatible connectors
- 1 QWIIC compatible connector
- 3V and 5V sensor support
- PTC thermistor to prevent output power overload
