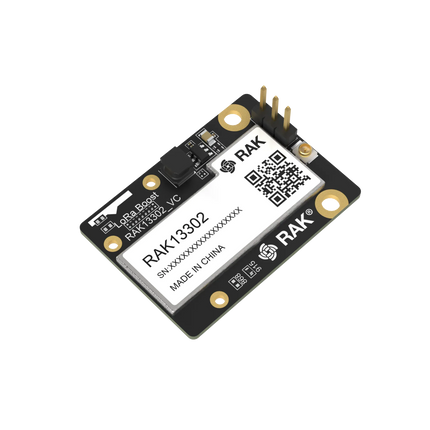

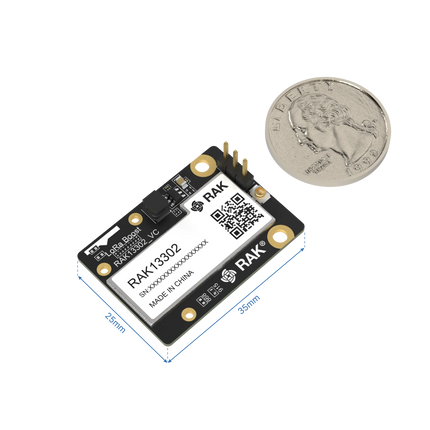

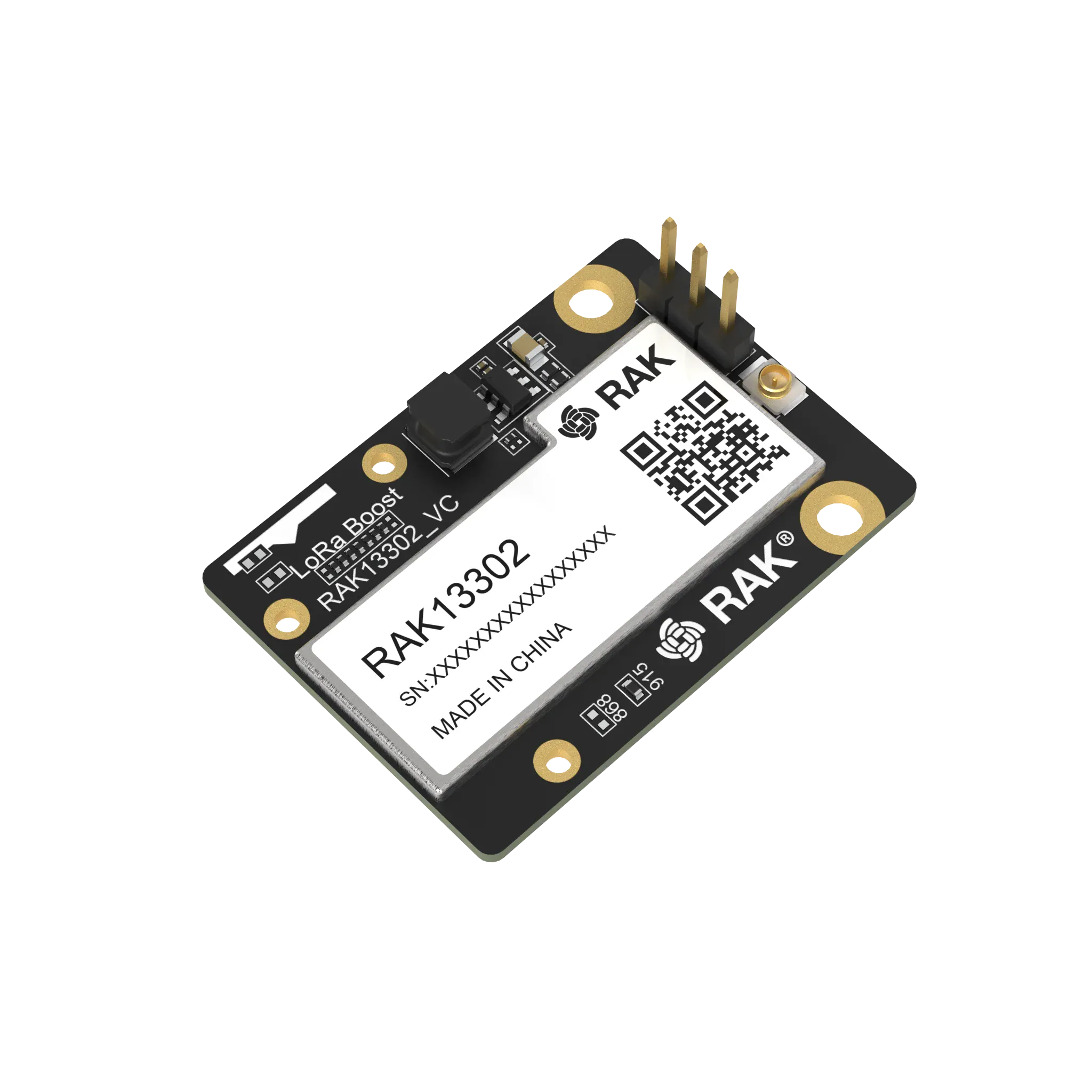

RAK13302 1W LoRa Transceiver Module SX1262 + SKY66122 Booster
The RAK13302 LoRa module is a 1W LoRa Transceiver module that is compatible with Meshtastic, LoRa P2P and LoRaWAN. It is designed to extend communication range with amplified RF transmission power. The module fits on the Wisblock IO slot (only compatible with RAK3401 WisBlock Core), RAK6421 RPi WisBlock HAT and WisGate Connect IO slot.
It is built on the Semtech SX1262 module for LoRa, and adds a SKY66122 booster LoRa front-end connectivity. It also has an integrated RF filter stage to deliver 1W transmission power with improved receiver sensitivity. The results in longer range, more stable links, and stronger mesh reliability.
Compatibility Note
Due to its higher power consumption, the RAK13302 1W Module for LoRa requires a 5 V supply and cannot operate from 3.3 V alone. You can use the following power options:
- Using a battery with the WisBlock Base Board (Recommended to have USB or Solar Charging 5V for continuous operation).
- External 5 V supply via its power connector
Note: This module is approved for the US915 LoRaWAN® band (United States). Due to transmission power restrictions in other regions (e.g.EU), the 800MHz variant should not be used with the possible maximum transmission power.
Why You Need RAK13302 1W Module?
The RAK13302 module for LoRa connectivity delivers reliable long-range wireless communication with high signal stability and flexible integration options for LoRaWAN and P2P networks.
Why it’s useful:
-
Extended Range: 1 W output power for broader coverage.
-
Versatile Integration: Compatible with Raspberry Pi and WisBlock Base Boards.
-
Flexible Operation: Supports LoRaWAN OTAA/ABP and LoRa P2P modes.
-
Meshtastic-Ready: Fully compatible with Meshtastic firmware.
-
Improved Reliability: Integrated RF filter enhances receiver sensitivity for stable links.
Key Features
- Based on Semtech’s SX1262 LoRa chip (offers lower receive power and stronger integration for modern long-range deployments)
- Includes SKY66122 booster for LoRa connectivity
- Compliant with LoRaWAN specification
- Supports 902–928 MHz and 863-870 MHz
- Activation by OTAA/ABP
- 1W LoRa module for LoRaWAN and (Point-to-Point) P2P connectivity
- Meshtastic firmware compatible
- Supply Voltage: 5.0 V
- Operating Temp: –40 °C to 85 °C
Use Case Examples of RAK13302 1W Module
Ideal for IoT networks that demand strong signal performance and long-distance communication in real-world environments.
Use Case #1: Long-Range Environmental Monitoring
A smart agriculture team deployed LoRa-based field sensors powered by this 1W module for LoRa connectivity to collect data across wide farmlands. The 1W transmission power ensured uninterrupted coverage in remote areas.
Use Case #2: City-Wide Lighting Control
A municipal project used the WisBlock 1W LoRa Module to link hundreds of streetlights under one network. The high receiver sensitivity allowed consistent operation across urban blocks.
What’s in the Box
- 1 pc WisBlock LPWAN Wireless Module RAK13302
- 1 pc PCB Antenna for LoRa（MHF1 Connector）
- 1 pc Amplifier Connection Cable
- 1 set Screw
