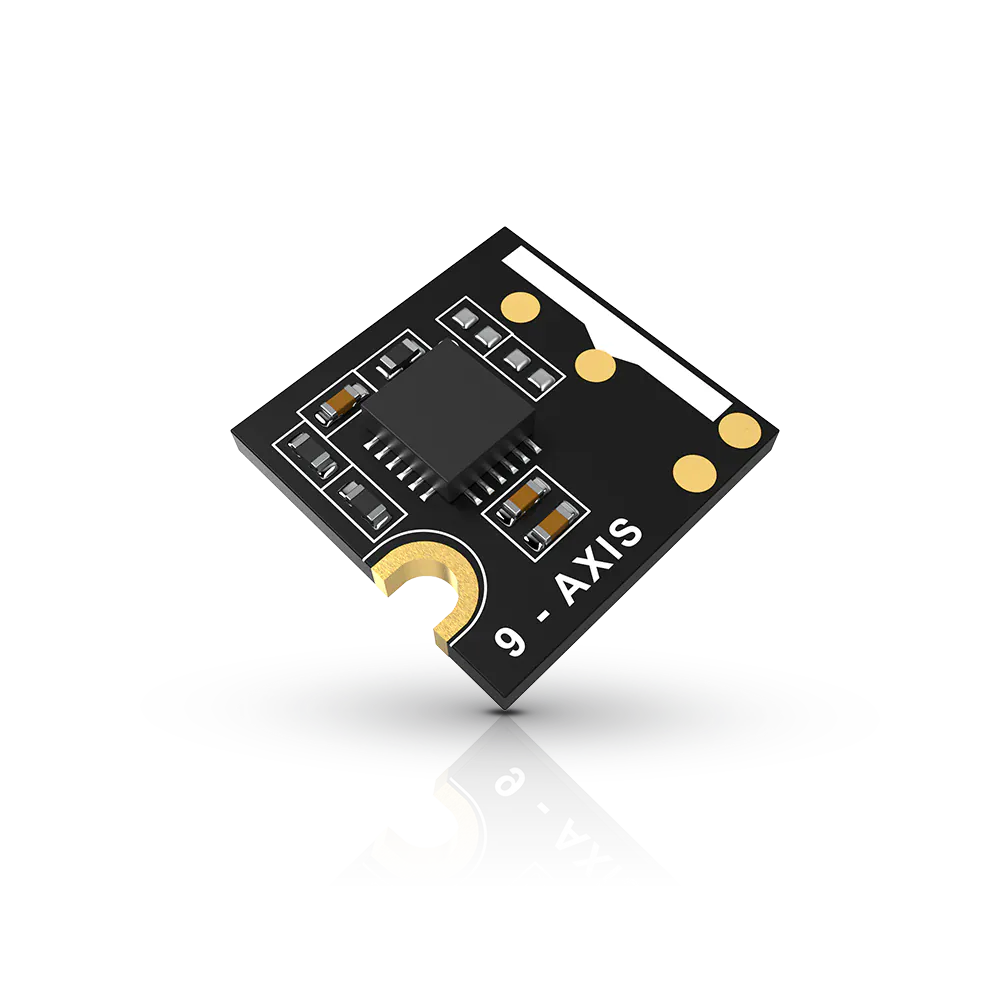

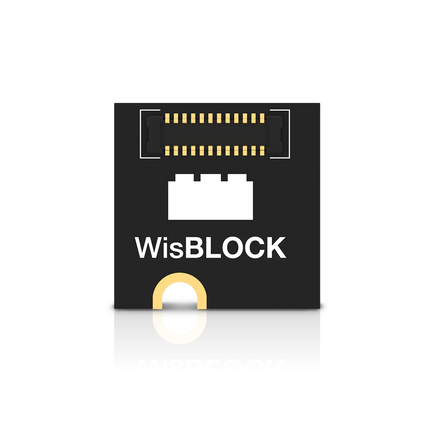

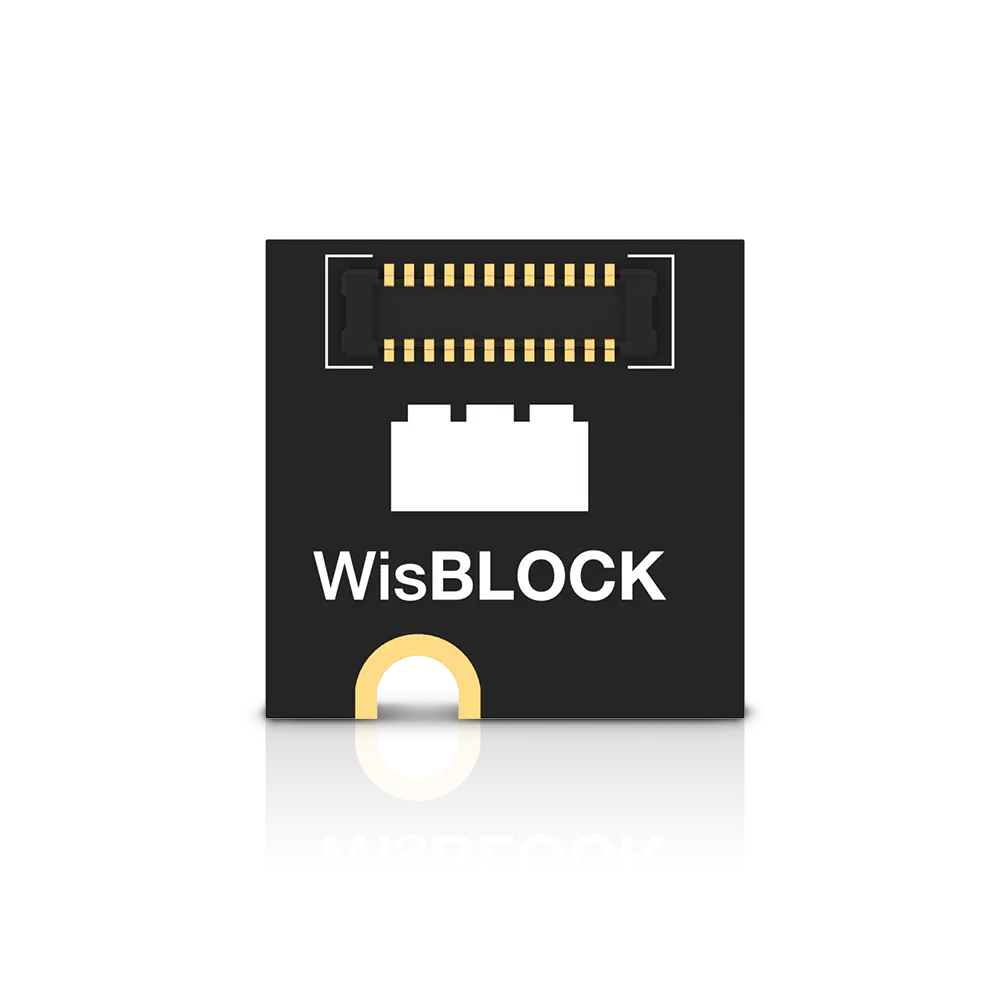

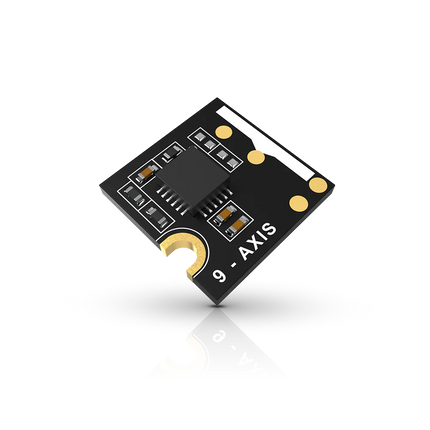

RAK1905 Wisblock 9DOF Motion Sensor TDK MPU9250
The RAK1905 is based on the TDK MPU9250 9DOF Motion Sensor. It combines a 3-Axis gyroscope, 3-Axis accelerometer and 3-Axis magnetometer.
RAK1905's scale from ±2g to ±16g and ±250 to ±2000 degrees/sec can be adjusted to the requirements of your application. The geomagnetic sensor has a range of ±4800 μT.
RAK1905 combined with any WisBlock Core module is a ready to go system for navigation, orientation measurement, tilt sensing, platform stabilization and robotic systems. The acquired data can be send using LoRaWan® communication, LoRa® point to point connections, BLE or WiFi, depending on the Core module.
RAK1905 is ideal for battery-powered applications because of its low power consumption.
Features
- Based on TDK MPU9250 9DOF Motion Sensor
- Adjustable Gyroscope range ±250, ±500, ±1000, ±2000°/sec
- Adjustable acceleration sensor range ±2g, ±4g, ±8g and ±16g
- Magnetometer full scale measurement range of ±4800μT
- Digital Motion Processor(DMP)
- I2C Interface
- Supply voltage: 3.3V
- Size 10 x 10 x 1 mm
