RAK2461 WisNode Bridge Digital DI DO RS485 to LoRaWAN
WisNode Bridge IO Lite (RAK2461) bridges different Digital Inputs, Outputs (Relay), and RS-485 communication to LoRaWAN® for industrial applications. The device relays data using the LoRaWAN network as a means of wirelessly transmitting to and from the end devices.
The RAK2461 is the ultimate solution for seamless LoRaWAN communication in indoor industrial environments. Engineered with industrial-grade reliability and based on the RAK3172-T LoRaWAN module, it ensures long-range connectivity even in harsh conditions, ranging from -20° C to +70° C. With flexible mounting options, it's easy to install in any setting. Whether for industrial automation or smart city infrastructure. The RAK2461 offers unparalleled performance and durability. Experience reliable long-range communication with the RAK2461 today!
The device comes in two variants:
- RAK2461 WisNode Bridge IO Lite – RS485-DIx4-DOx1 – One RS485 interface, four digital inputs(DI), one digital output(DO)
- RAK2461 WisNode Bridge IO Lite – RS485-DOx4 – One RS485 interface, four digital outputs(DO)
Product Features
- LoRaWAN 1.0.3 protocol stack
- Class support: A, B, & C
- 1x RS-485 host port
- 4x Photocoupler DI ports and 1x Relay NC/NO port (optional)
- 4x Relay NC/NO port (optional)
- Power input: 9.0 V ~ 24.0 V
- Power output 9.0 V ~ 24.0 V (depending on input)
- Based on the RAK3172-T module

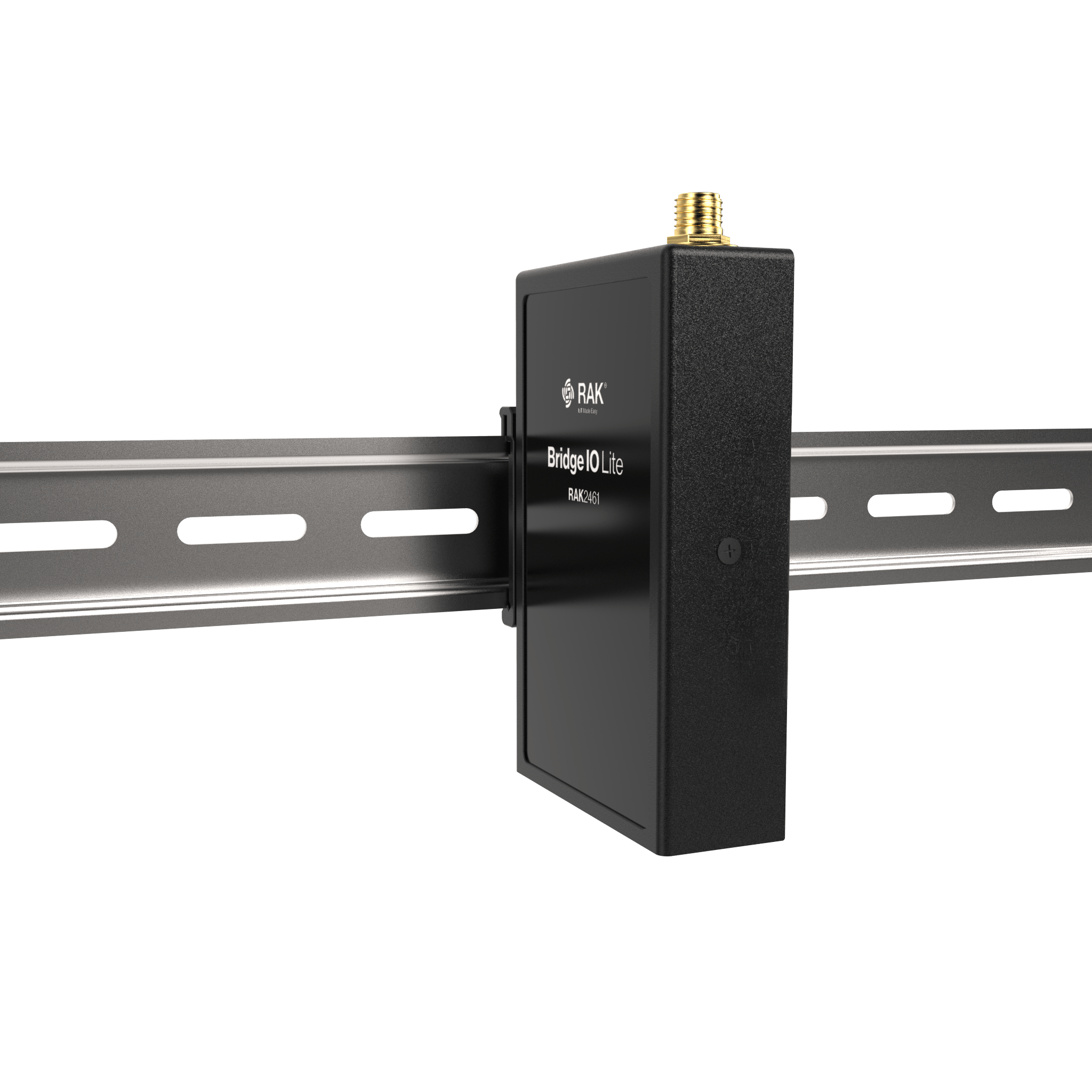

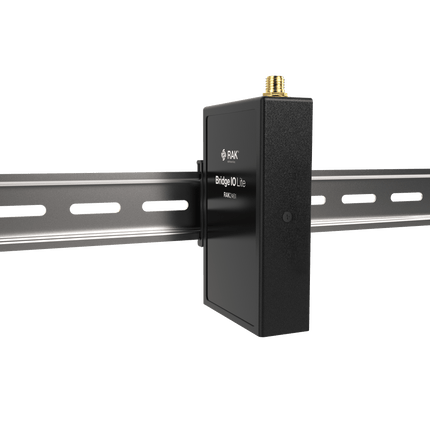

- Wall and DIN rail mounting
Package Inclusion
- 1x RAK2461 WisNode Bridge IO Lite (RS485-DIx4-DOx1 or RS485-DOx4)
- 1x Wall and DIN rail Mounting Kit
- 1x Screw Kit
- 1x LoRa Antenna
- 1x 4-Pin Terminal Block
- 2x 8-Pin Terminal Block
- 1x Power Adapter
- 1x USB Cable(Type C Male to Type A Male)
