RAK7246 LoRaWAN Developer Gateway WisGate Developer

Description



RAK7246 LoRaWAN Developer Gateway WisGate Developer

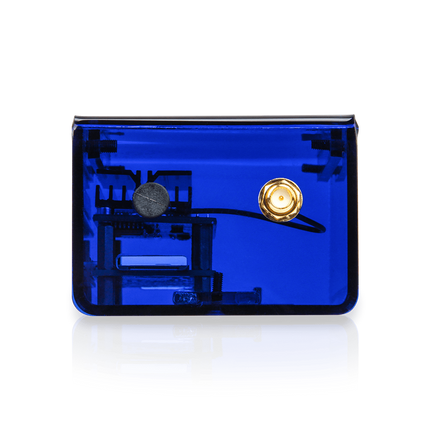

The RAK7246 is a LoRaWAN® developer gateway. It is a device composed of a RAK2246 Pi HAT LPWAN Concentrator module and Raspberry Pi Zero W.

This concentrator module is a Class A and C compliant based on Semtech® SX1308 chip, which allows for simultaneous reception over 8 LoRa channels.

RAK7246 is an ideal choice for prototype design, concept verification and demonstrations, development evaluation and other scenarios. It is developer-friendly due to its minimalistic design that reduces cost and allows for easily accessing the internals. It is easy to set-up, which makes it a good choice for both experienced and novice LoRa specialists.

Product Documentation

You can find all the documentation for this product on this link. To download and see instructions for installing the Precompiled Firmware Image to your SD Card, please use this link.

Key Features

  • Using SX1308 baseband processor, full 8 uplink channels and 1 downlink channel LoRaWAN® Gateway;
  • The Pre-installed radiator guarantees stable thermal performance
  • Tx max 20dbm, Rx min -139dbm @ SF12 at 125kHz;
  • Covers the entirety of the LoRa high-frequency band space: RU864, IN865, EU868, US915, AU915, KR920, AS923;
  • Power supply 5V / 2.5A (power adapter not included)

Package Details

  • Product Dimensions: 96mm x 66mm x 47mm
  • Enclosure Material: Acrylic
  • Ingress Protection Rating: IP30

Package Inclusions

  • 1x RAK7246 LPWAN Developer Gateway  (RAK2246 and Raspberry Pi Zero W inside)
  • 1x LoRa Antenna
  • 1x 16GB TF Card with pre-installed firmware
  • 1x USB Cable



RAK7246 LoRaWAN Developer Gateway WisGate Developer

Product form

SKU: RAK7246 707028

$249.00 $199.00 Excl. GST

$199.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description



    RAK7246 LoRaWAN Developer Gateway WisGate Developer

    The RAK7246 is a LoRaWAN® developer gateway. It is a device composed of a RAK2246 Pi HAT LPWAN Concentrator module and Raspberry Pi Zero W.

    This concentrator module is a Class A and C compliant based on Semtech® SX1308 chip, which allows for simultaneous reception over 8 LoRa channels.

    RAK7246 is an ideal choice for prototype design, concept verification and demonstrations, development evaluation and other scenarios. It is developer-friendly due to its minimalistic design that reduces cost and allows for easily accessing the internals. It is easy to set-up, which makes it a good choice for both experienced and novice LoRa specialists.

    Product Documentation

    You can find all the documentation for this product on this link. To download and see instructions for installing the Precompiled Firmware Image to your SD Card, please use this link.

    Key Features

    • Using SX1308 baseband processor, full 8 uplink channels and 1 downlink channel LoRaWAN® Gateway;
    • The Pre-installed radiator guarantees stable thermal performance
    • Tx max 20dbm, Rx min -139dbm @ SF12 at 125kHz;
    • Covers the entirety of the LoRa high-frequency band space: RU864, IN865, EU868, US915, AU915, KR920, AS923;
    • Power supply 5V / 2.5A (power adapter not included)

    Package Details

    • Product Dimensions: 96mm x 66mm x 47mm
    • Enclosure Material: Acrylic
    • Ingress Protection Rating: IP30

    Package Inclusions

    • 1x RAK7246 LPWAN Developer Gateway  (RAK2246 and Raspberry Pi Zero W inside)
    • 1x LoRa Antenna
    • 1x 16GB TF Card with pre-installed firmware
    • 1x USB Cable
