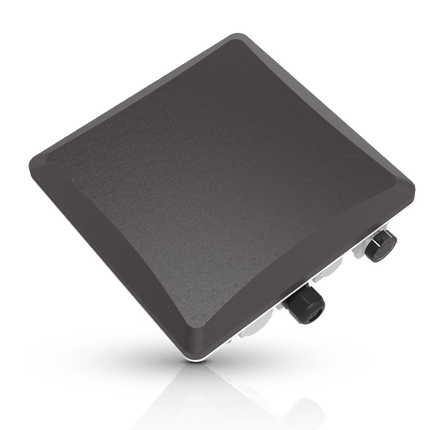

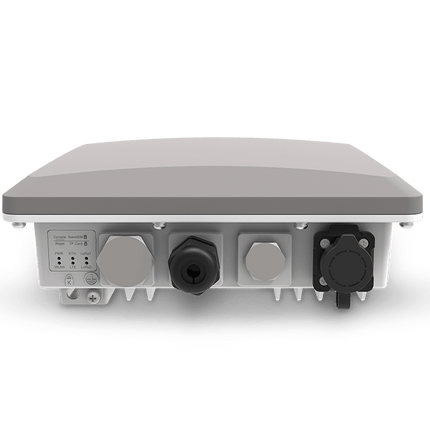

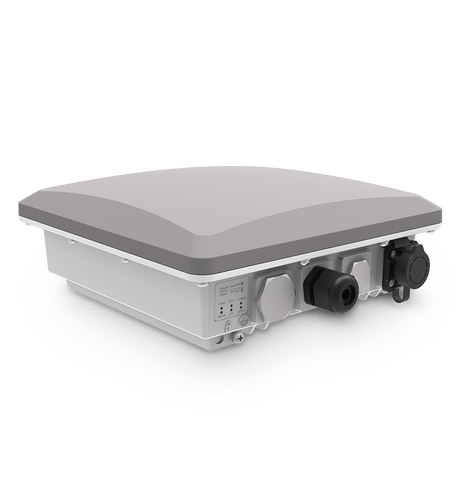

RAK7289 WisGate Edge Pro Outdoor LoRaWAN Gateway Multichannel
RAK7289 WisGate Edge Pro Outdoor LoRaWAN Gateway, 8 or 16 channels LoRa, 4G, WIFI, GPS, POE
RAK7289 WisGate Edge Pro is an ideal outdoor LoRaWAN Gateway for IoT commercial deployment. With its industrial-grade components, it achieves a high standard of reliability.
Supports 8 or 16 LoRa channels, multi-backhaul with Ethernet, Wi-Fi, and Cellular connectivity. Optionally there is a dedicated port for different power options, solar panels, and batteries. With its new enclosure design, it allows the LTE, Wi-Fi, and GPS antennas to be inside the enclosure.
The gateway provides for a solid out-of-the-box experience for quick deployment. Additionally, since its software and UI sits on top of OpenWRT it is perfect for the development of custom applications (via the open SDK).
Thus, the RAK7289 is suited for any use case scenario, be it rapid deployment or customization with regards to UI and functionality.
Product Features
- Hardware
- IP67/NEMA-6 industrial-grade enclosure with cable glands
- PoE (802.3af) + Surge Protection
- Dual LoRa Concentrators 8 or 16 channels
- Backhaul: Wi-Fi, LTE and Ethernet
- GPS
- Supports DC 12V or Solar power supply with Electricity monitoring (Solar Kit optional)
- Internal antenna for Wi-Fi, GPS, and LTE, External antenna for LoRa
- Software
- Built-in Network Server
- OpenVPN
- Software and UI sit on top of OpenWRT
- LoRaWAN 1.0.3
- LoRa Frame filtering (node whitelisting)
- MQTT v3.1 Bridging with TLS encryption
- Buffering of LoRa frames in Packet Forwarder mode in case of NS outage (no data loss)
- Full duplex (optional)
- Listen Before Talk (optional)
- Fine timestamping (optional)
Package Inclusion
- 8 or 16 Channels
- 1pc Gateway
- 1pc Ethernet Gable Gland
- 1pc POE Injector
- 1pc Mounting Brackets
- 1set Screws
- Antenna is not included (please add 3dBi or 5.8dBi antenna to your order)
Documentation
