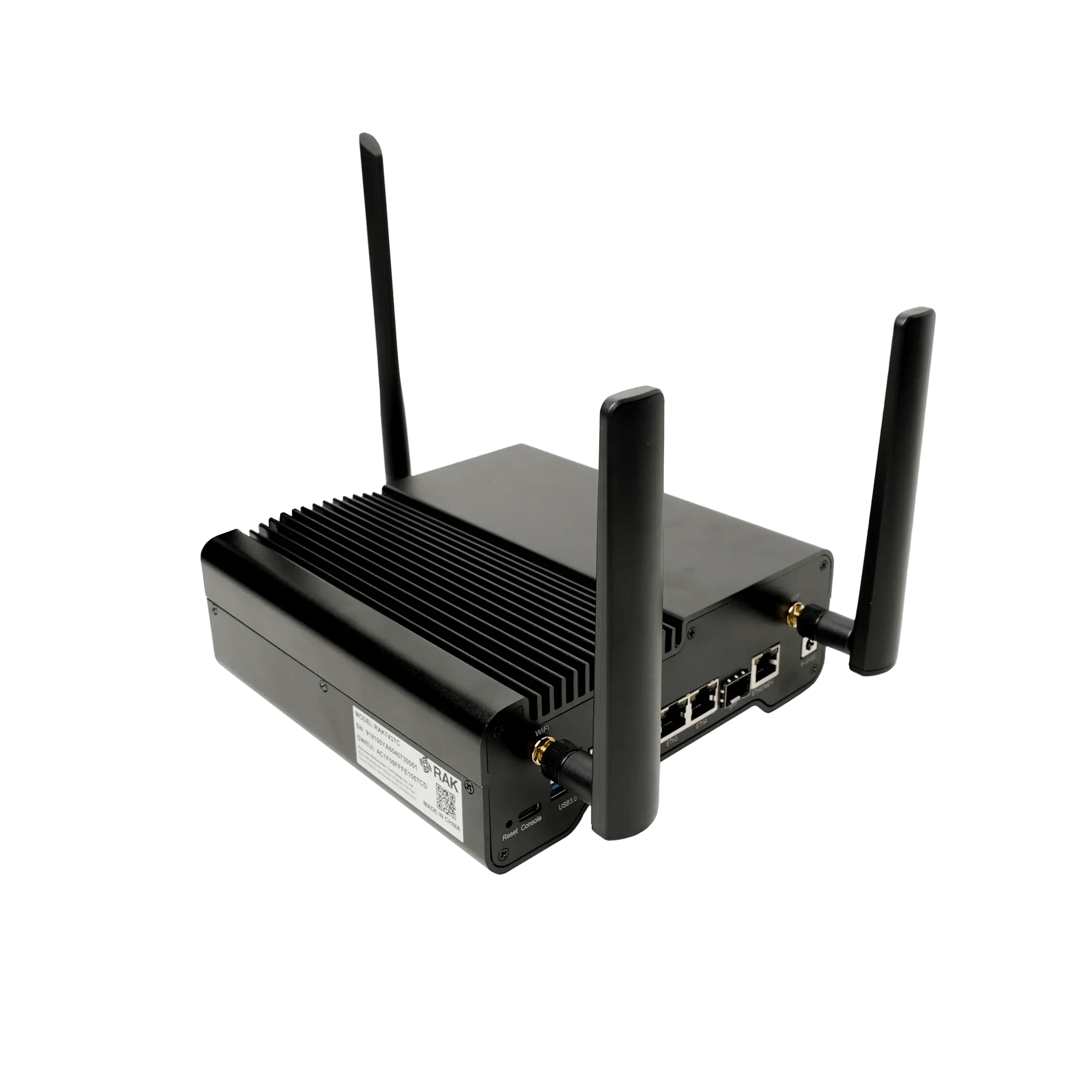

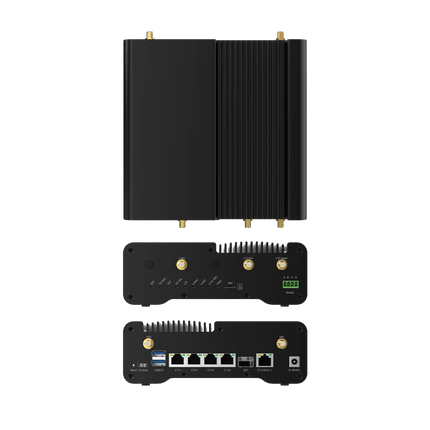

RAK7437 Industrial BACnet Gateway for LoRaWAN BMS MQTT
BACnet Gateway for LoRaWAN RAK7437 bridges wireless LoRaWAN sensors with existing BACnet/IP building and industrial automation systems—without changing established architectures.
It exposes LoRaWAN sensor data as native BACnet/IP objects, while simultaneously forwarding the same data via MQTT for analytics, monitoring, or cloud platforms.
Designed for permanent installations, RAK7437 runs WisGateOS 2 (OpenWRT-based) and delivers predictable behaviour, long-term stability, and controlled system growth.
- Native BACnet/IP object exposure (no proprietary middleware)
- Parallel BACnet/IP and MQTT data paths
- Built-in frame buffering for network interruptions

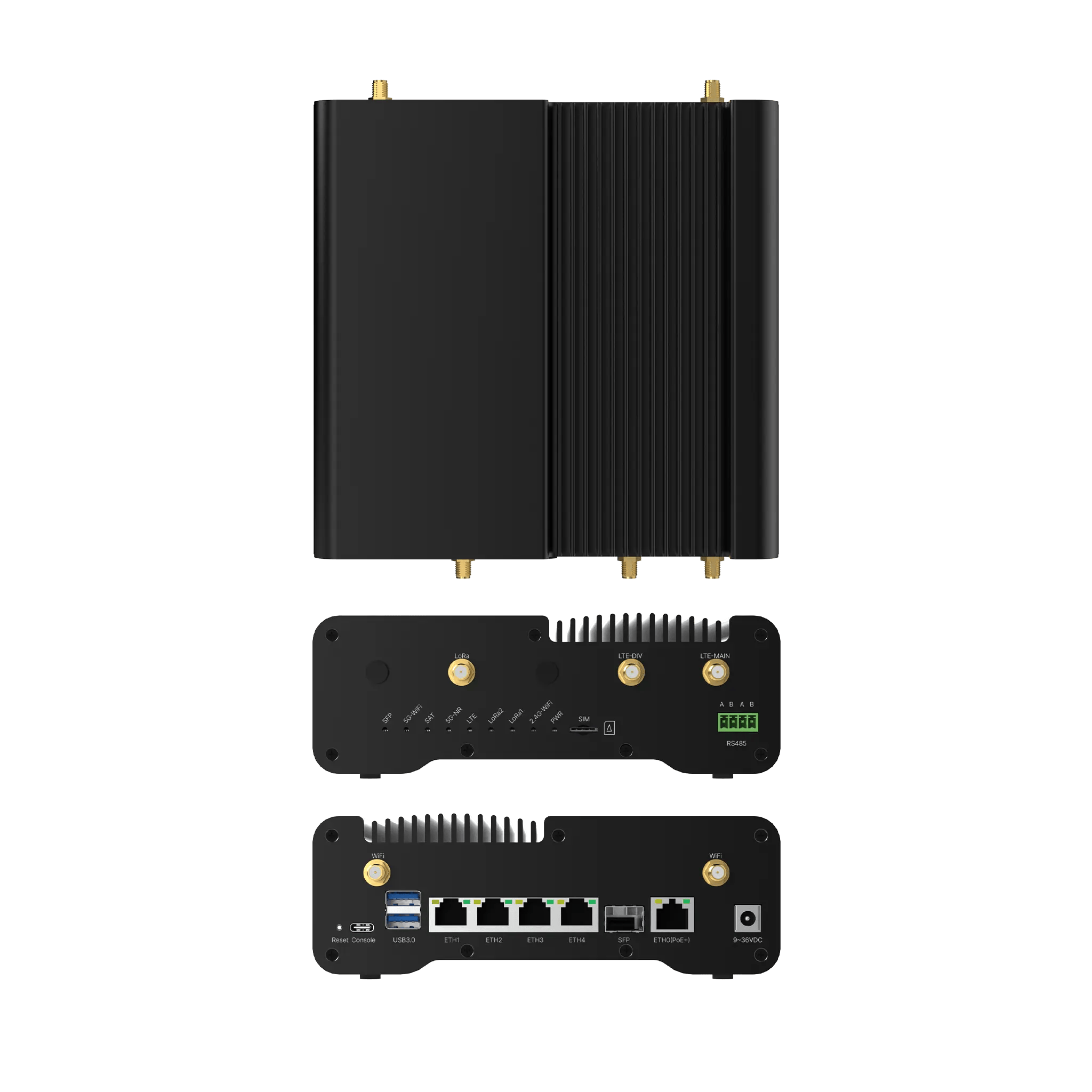

- IP30 industrial enclosure with PoE and wide DC input

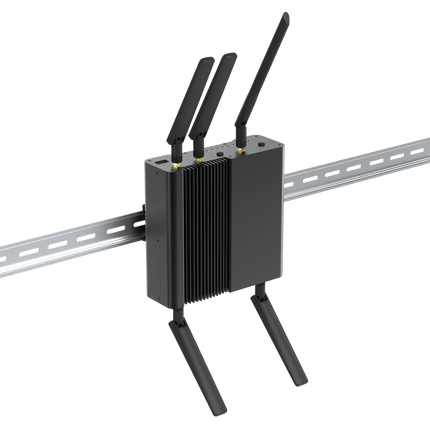

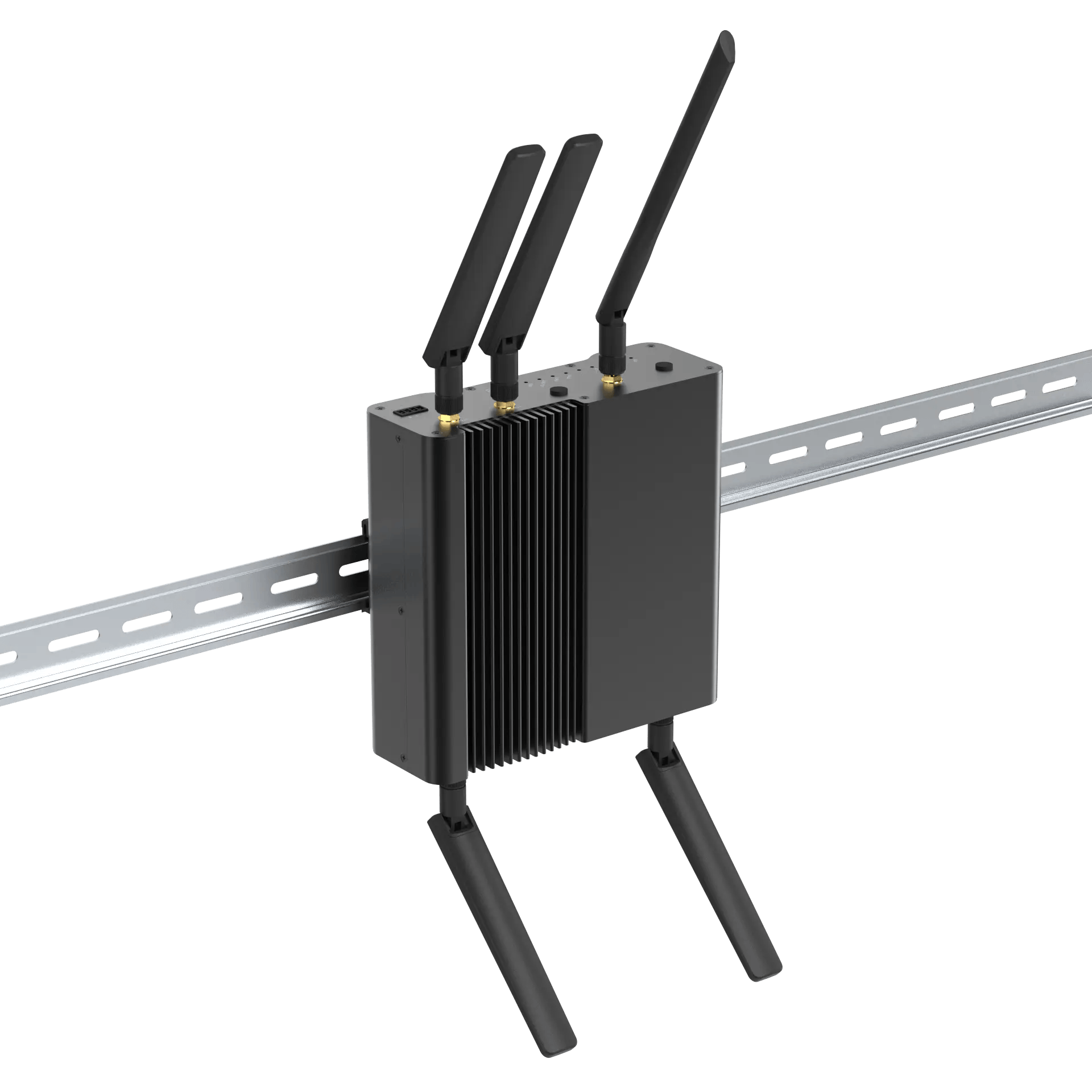

- Designed for cabinets, control rooms, and field enclosures
Who Is BACnet Gateway for LoRaWAN RAK7437 Designed For?
BACnet Gateway for LoRaWAN RAK7437 is designed for organisations that need to integrate LoRaWAN sensing into existing BACnet environments without disrupting ongoing operations.
It is well-suited for:
-
Building owners and facility managers
Expand sensor coverage while preserving existing BACnet/IP logic, graphics, alarms, and schedules.
-
System integrators and automation engineers
Deliver predictable LoRaWAN-to-BACnet integrations with stable object mapping and controlled polling behavior.
-
Industrial operators and infrastructure teams
Deploy wireless sensing alongside wired automation systems under continuous, long-term operation.
-
Retrofit and modernisation projects
Add sensors for LoRaWAN where rewiring is impractical, cost-prohibitive, or operationally risky.
-
Organisations requiring parallel data access
Use BACnet/IP for BMS operation and MQTT for analytics or cloud platforms without coupling the two.
RAK7437 is engineered for permanent industrial installations where long-term reliability and consistent system behaviour are critical.
Why You Need an Industrial LoRaWAN BACnet Gateway
Modern operations often require expanding data coverage without disrupting established systems or workflows. An industrial gateway for LoRaWAN supports this need by enabling reliable data acquisition across harsh and mixed environments.
Why it’s useful:
-
System continuity: Extends existing infrastructure without altering current automation logic
-
Operational reliability: Maintains data delivery during network interruptions
-
Deployment flexibility: Adapts to varied sites and backhaul constraints

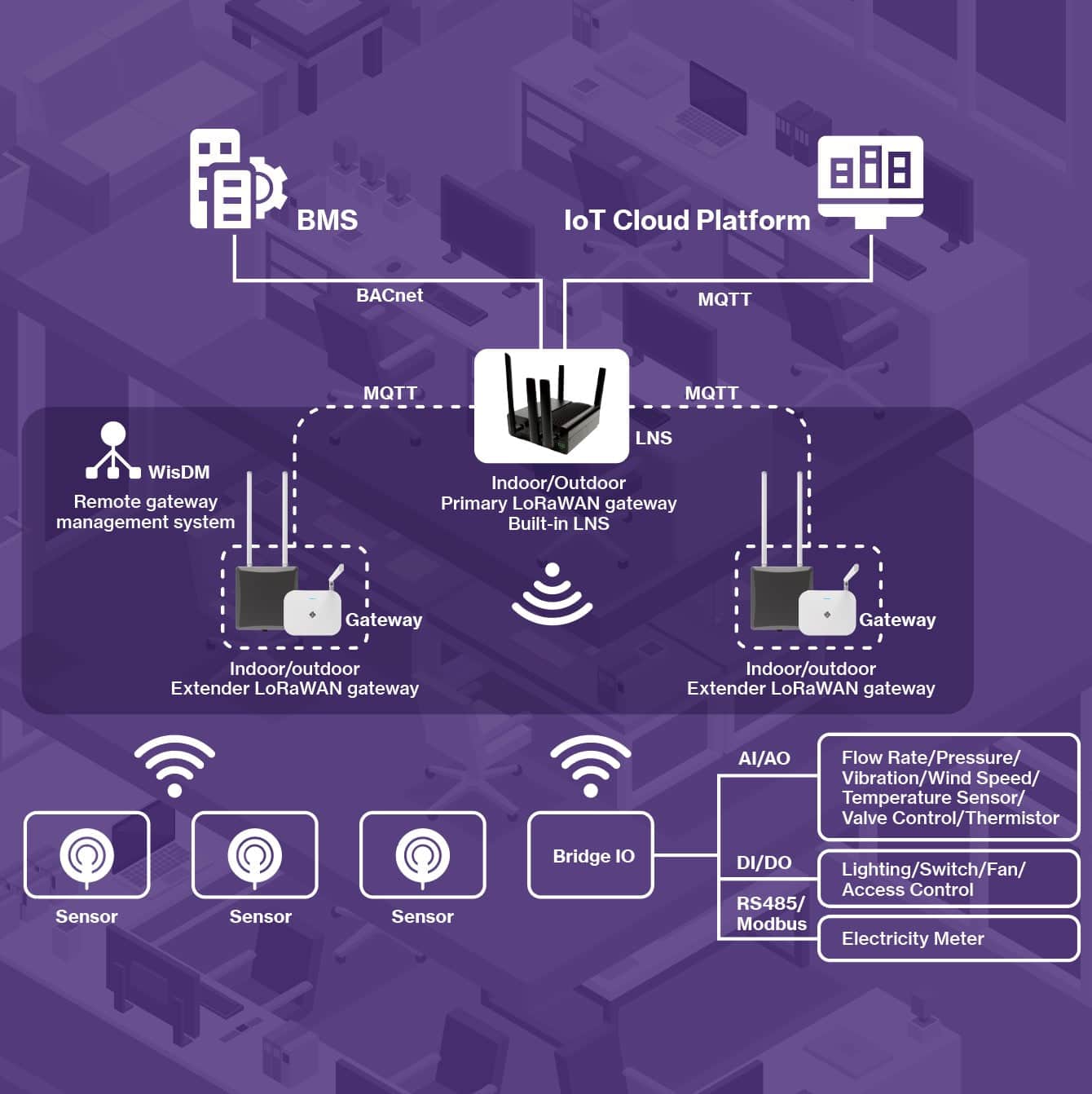

How LoRaWAN Integrates into BACnet Building Management Systems
RAK7437 acts as a central LoRaWAN termination and integration point, aggregating data from distributed LoRaWAN sensors and exposing the data as standard BACnet/IP objects.
How it works:
- LoRaWAN sensors send data wirelessly to BACnet Gateway for LoRaWAN RAK7437.
- The gateway decodes the data and maps each sensor to a BACnet/IP object.
- The building management system discovers and polls these objects like wired devices.
What stays unchanged:
- Existing BACnet logic and control rules.
- Graphics, alarms, schedules, and trends.
- Certified BMS workflows and commissioning processes.
Why this matters:
- Wireless sensing is added without architectural changes.
- System behaviour remains predictable as deployments scale.

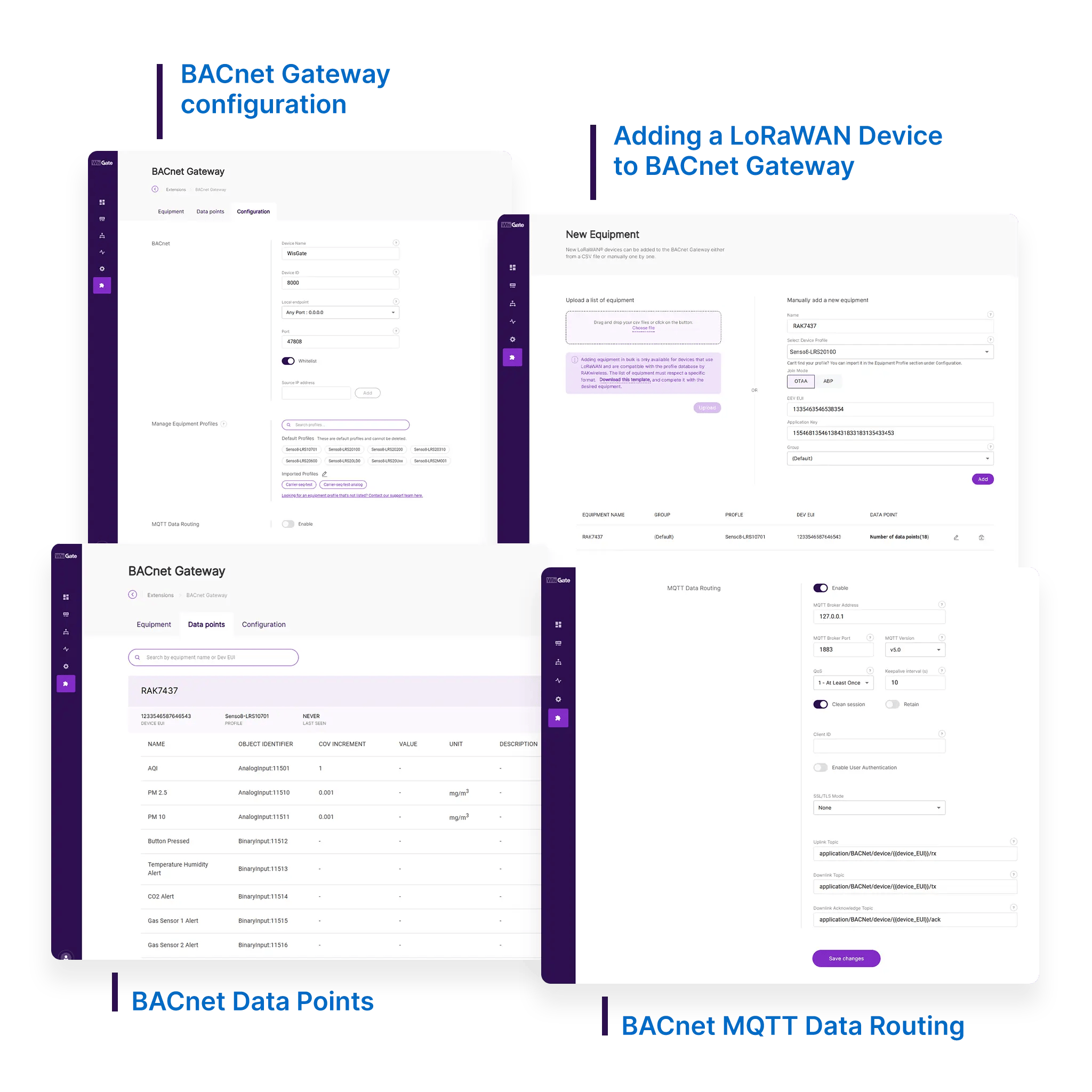

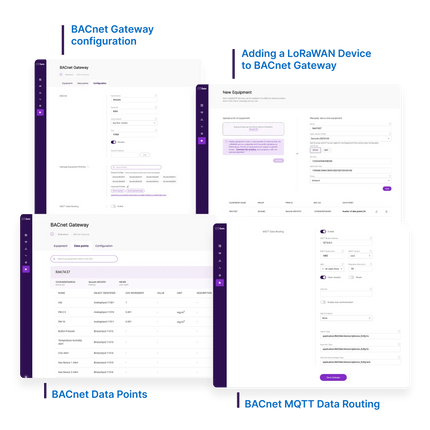

BACnet Data Point Mapping
RAK7437 uses a standardised BACnet data point model that is decoupled from individual LoRaWAN devices.
- Each LoRaWAN sensor is mapped to predefined BACnet object types
- BACnet object IDs and naming remain stable over time
- Sensor replacement does not require BMS reconfiguration
As a result, sensor replacement or upgrades do not require:
- Reconfiguration of BACnet objects
- Changes to BMS logic or rules
- Updates to existing dashboards or graphics
This approach simplifies maintenance and reduces engineering effort throughout the system lifecycle.
BACnet Access Control
- Supports BACnet device whitelisting.
- Only authorised BACnet clients are allowed to read data from the gateway.
- Prevents unauthorised device access on the BACnet network.
Performance Characteristics
- Designed to handle high-frequency and batch BACnet read requests.
- Maintains stable response behavior under large data point loads.
- Preserves consistent BACnet object mapping during continuous operation.
Parallel BACnet and MQTT Data Architecture
BACnet Gateway for LoRaWAN RAK7437 provides two independent data paths from the same LoRaWAN sensor data.
-
BACnet/IP path:
Delivers native BACnet objects to the building management system for polling, alarms, and trending.
-
MQTT path:
Forwards the same data to cloud platforms, analytics tools, or monitoring systems.
These data paths are isolated. Changes to the MQTT configuration do not affect BACnet behavior. Local buffering preserves data during network outages.
BACnet-based building automation and MQTT-based analytics run in parallel without interference.
Outcome:
BACnet-based building automation and MQTT-based analytics run in parallel without interference.
Industrial Design for Retrofit and Long-Term Operation
BACnet Gateway for LoRaWAN RAK7437 is built for permanent installation in environments where reliability, physical durability, and long service life are required.
This design allows wireless LoRaWAN sensing to be added to existing building and industrial systems without frequent maintenance, rework, or operational disruption.
Use Case Examples for BACnet Gateway for LoRaWAN RAK7437
The following examples illustrate how organisations apply BACnet Gateway for LoRaWAN RAK7437 as a gateway for LoRaWAN for building automation to address operational constraints, validate outcomes, and sustain repeatable performance in production environments.
Use Case #1: Industrial Retrofit with BACnet Integration
A facilities team faced limited sensor coverage and manual readings. Sensors for LoRaWAN added via the gateway increased data points by 3×. BACnet mapping tested via staged reads showed <2% latency variance. Production ran continuously.
Use Case #2: Distributed Monitoring Across Multiple Sites
Across five sites, baseline data loss averaged 8%. After deployment, buffered forwarding reduced loss to under 0.5%, validated through week-long packet audits. Rollout followed identical configurations. This approach demonstrated how a single industrial IoT gateway for buildings can support standardised monitoring across distributed locations.
Comparison Table: BACnet Gateway for LoRaWAN RAK7437 vs Common LoRaWAN BACnet Gateways
| Feature |
BACnet Gateway for LoRaWAN RAK7437 (This product)
|
MultiTech |
Robustel |
Milesight |
Wattsense |
| Production-Grade Industrial Gateway |
Yes |
Yes |
Yes |
Yes |
Yes |
| Built-in Frame Buffering |
Yes |
Limited |
Limited |
No |
No |
| Parallel BACnet + MQTT |
Yes |
No |
Partial |
No |
No |
| OpenWRT-Based OS |
Yes |
No |
No |
No |
No |
| BACnet Object Stability |
Yes |
Partial |
Partial |
Partial |
Yes |
| Cellular Option |
Yes (RAK7437C) |
Yes |
Yes |
Yes |
No |
| Retrofit-Focused Design |
Yes |
Yes |
Yes |
Partial |
Yes |
| Best Use Case |
Long-term BMS + IoT |
BMS extension |
Industrial WAN |
Cost-sensitive BMS |
Fast retrofit |
Why Choose BACnet Gateway for LoRaWAN RAK7437?
BACnet Gateway for LoRaWAN RAK7437 is designed for projects where integration risk, long service life, and operational predictability matter more than feature count.
It is chosen when deployments must:
- Fit into existing BACnet environments without future rework.
- Remain supportable and understandable years after installation.
- Scale gradually without forcing architectural decisions upfront.
Rather than optimising for fast demos or simplified use cases, BACnet Gateway for LoRaWAN RAK7437 prioritises clarity, control, and long-term maintainability. This makes it a practical choice for building owners, integrators, and operators who need a gateway that can be installed once and operated consistently over time.

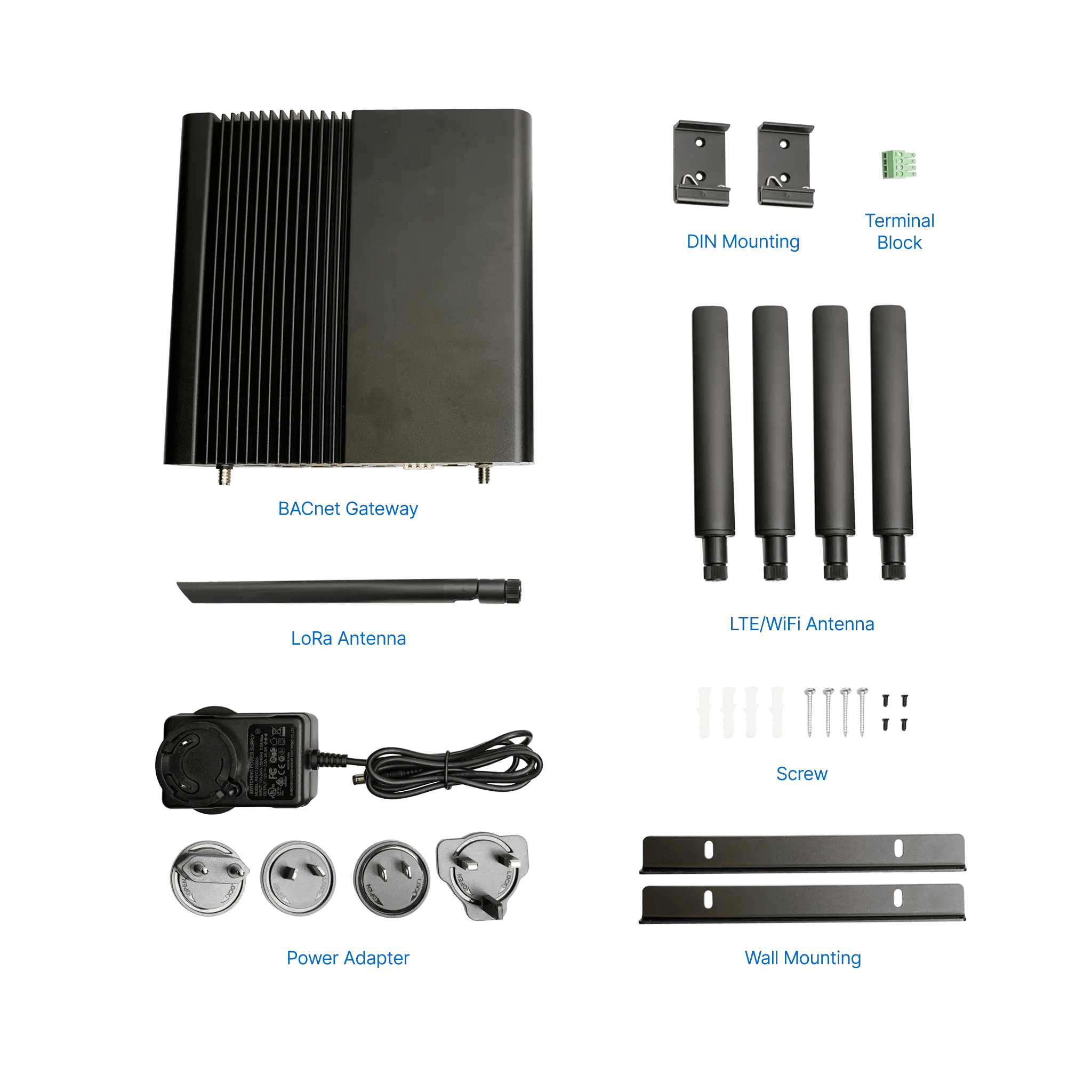

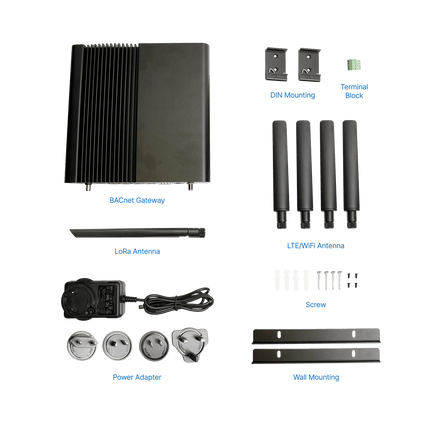

What’s in the Box
- 1 pc BACnet Gateway
- 2 pc LTE Antenna (RAK7437C variant only)
- 2 pc Wifi Antenna
- 1 pc LoRa Antenna
- 2 pc Wall Mounting Kit
- 2 pc Din Mounting Kit
- 1 pc Power Adapter
- 1 pc Terminal block
- 1 Screw Set
