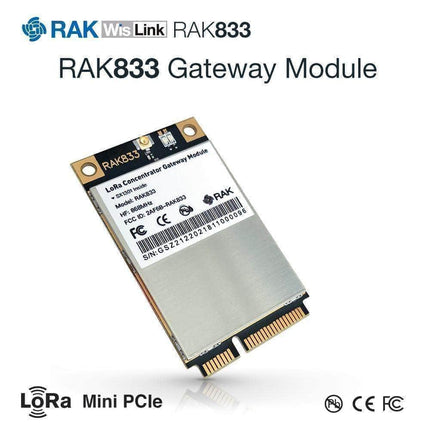

RAK833 SPI Industrial Grade Mini PCIe LoRaWAN Gateway Concentrator Module SX1301
The RAK833 is a LoRa concentrator card with mini PCIe form factor based on SX1301, which enables easy integration into an existing router and other network equipment with Lora Gateway capabilities.
RAK833 are a complete and cost-efficient LoRa gateway solution offering up to 10 programmable parallel demodulation paths. It targeted at smart metering fixed networks and Internet of Things applications with up to 500 nodes per km2 in the moderately interfered environment. The modules have the industry standard PCI Express Mini Card form factor, which enables easy integration into an application board and is also ideal for manufacturing of small series.
Key Features
- SX1301 provides 8 uplink and 1 downlink LoRa demodulation paths
- Max Tx Power of 20dBm
- RX sensitivity of -136dBm
- Full LoRaWAN 1.0.2 stack support
- Compact size in the form of a mPCIe 52pin form factor card
- Compatible with 3.3V mPCIe type slots, common for 3G/LTE modules

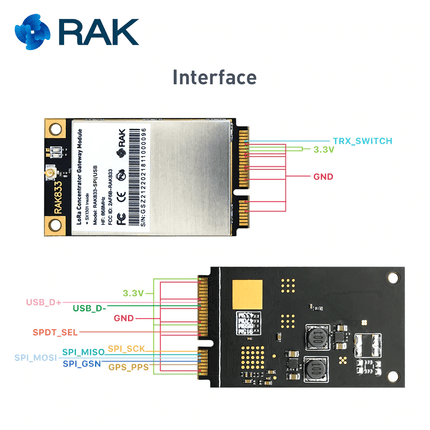

- With an option for SPI interface board or both SPI and USB interfaces
- Perfect for a Plug-and-Play Setup when used together with the mPCIe to USB adapter
Documents
RAK833 LoRa Gateway DataSheet
RAK833 SPI Brochure
RAK833 LoRa Gateway Reliability Test Report
