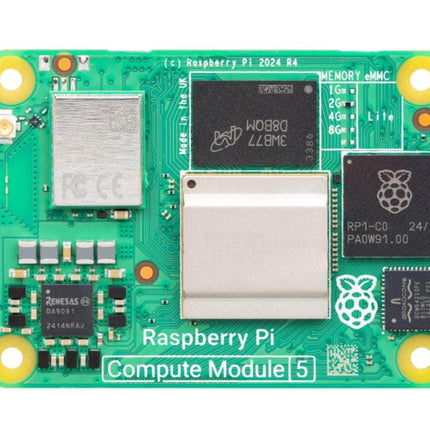

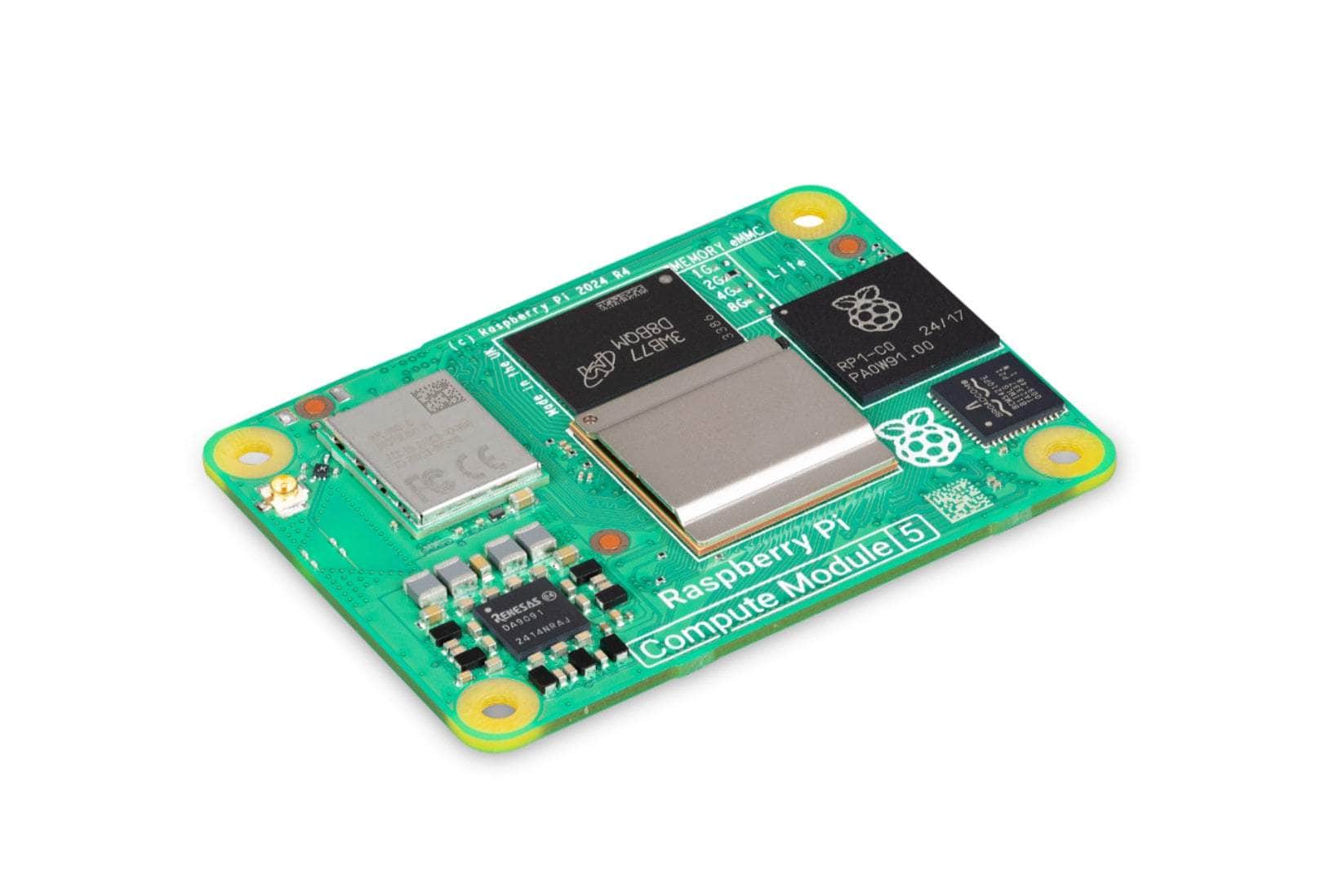

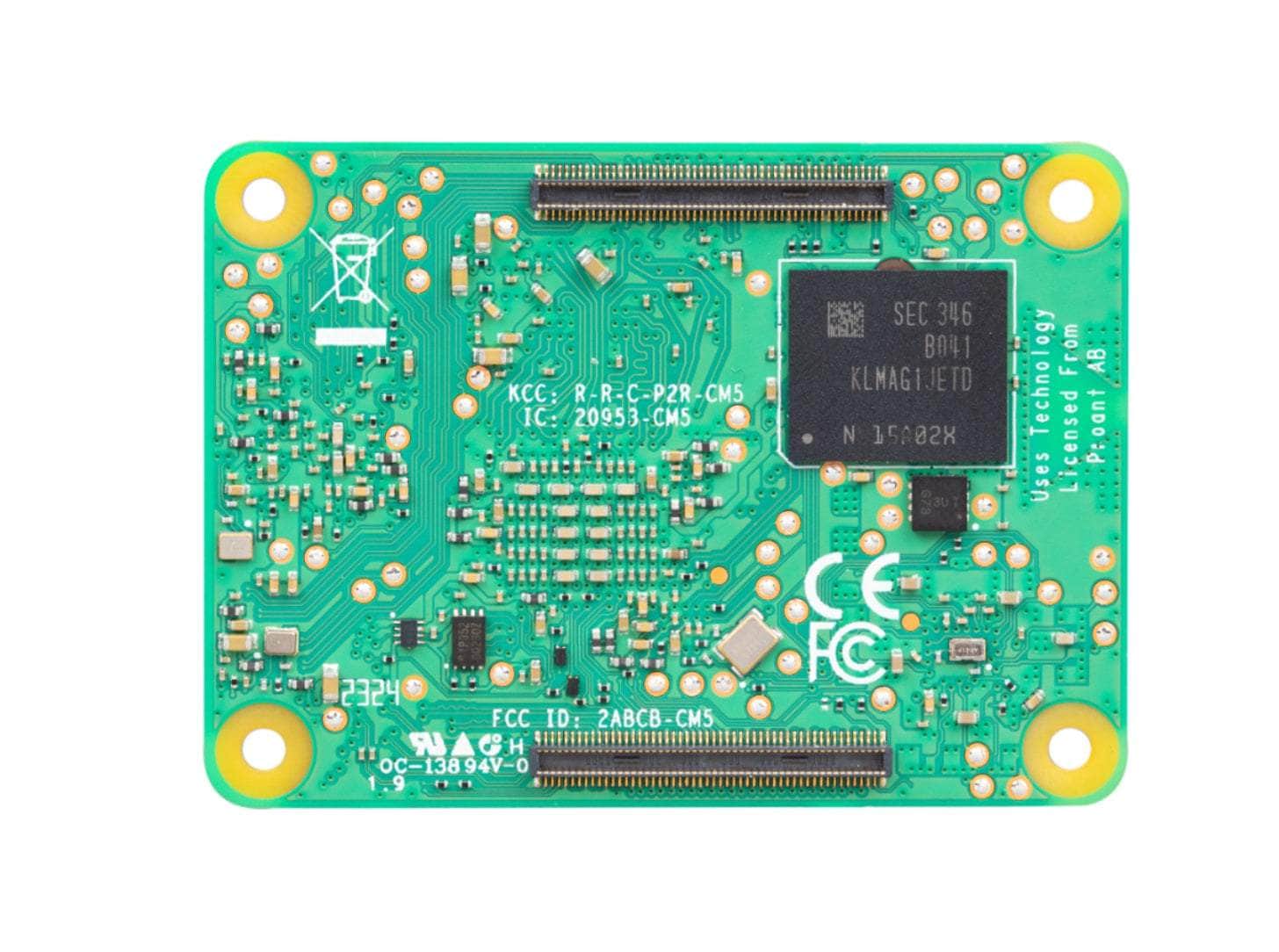

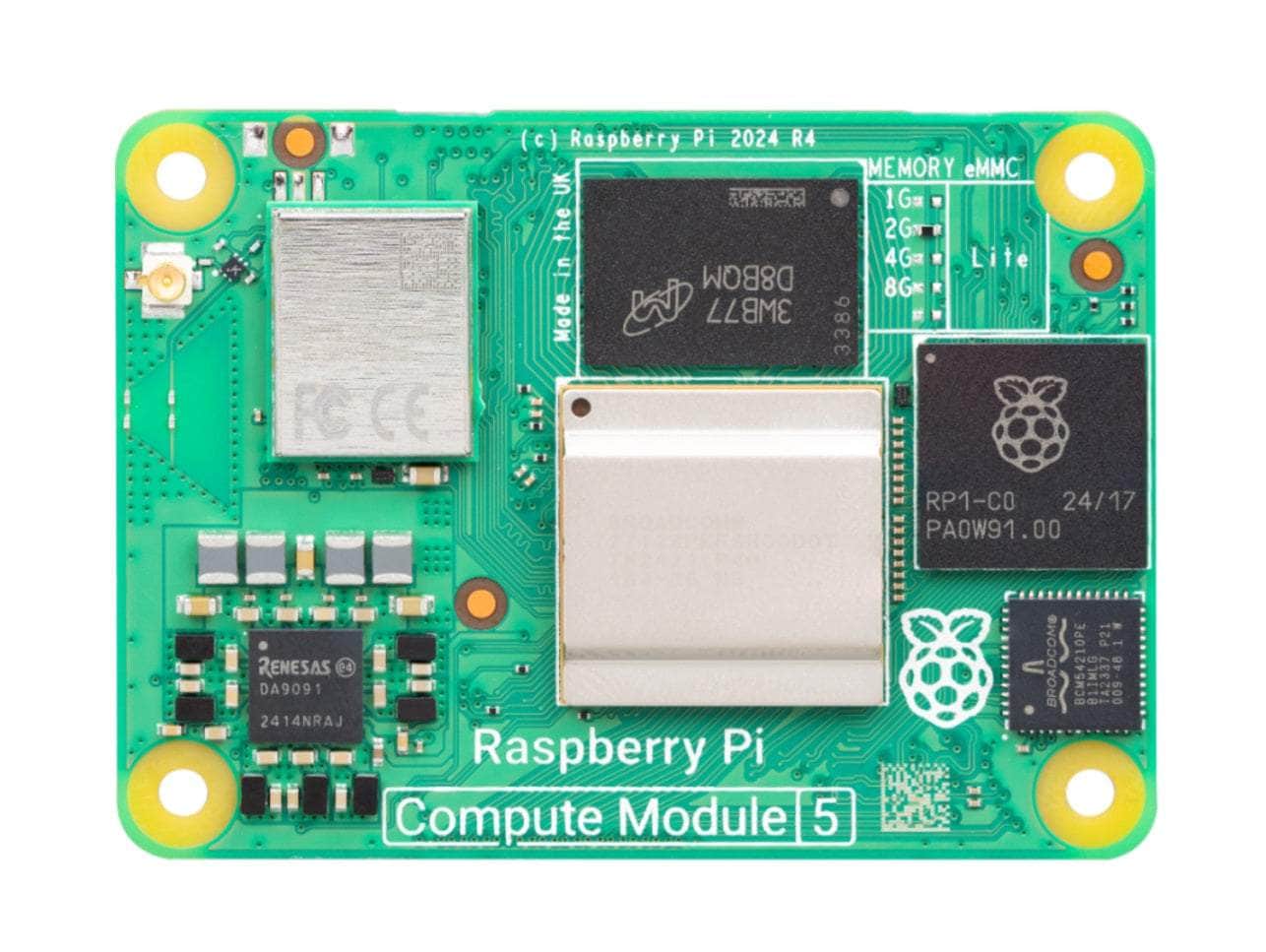

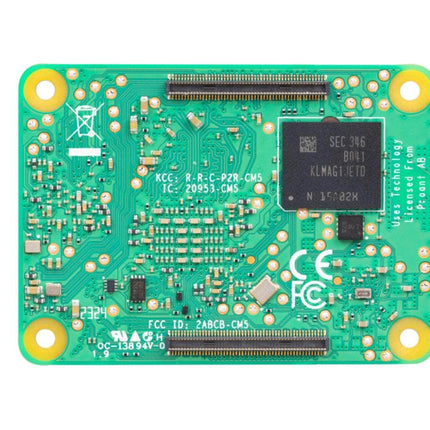

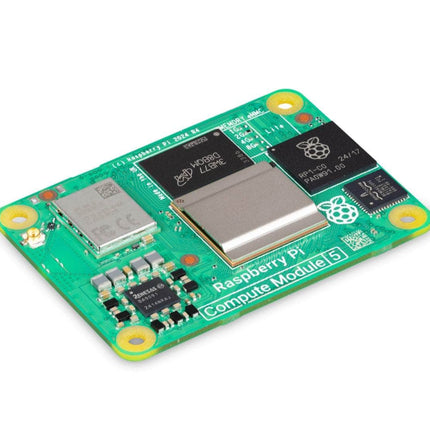

Raspberry Pi Compute Module 5 is a powerful system on module that delivers the performance of Raspberry Pi 5 in a compact form factor, making it ideal for embedded applications.
Similar the Compute Module 4 (CM4), the CM5 offers a range of options for eMMC storage (from 0GB, 16GB, 32GB, and now 64GB) and SDRAM (2GB, 4GB, 8GB, and now 16GB), as well as both wireless and non-wireless versions.
-
New processor: Upgraded from CM4 CPU model BCCM2711, quad-core Arm Cortex-A72, 1.5GHz to CM5 CPU model BCCM2712, quad-core Arm Cortex-A76, 2.4GHz.
-
New manufacturing process: Enhanced from CM4's 28nm to CM5's 16nm
-
Higher memory speed: Improved from CM4 LPDDR4-3200 to CM5 LPDDR4-4267
-
More memory options: Includes versions with 16GB SDRAM and 64GB eMMC flash memory
-
More powerful video output: CM5 supports dual 4K60P output and HDR
-
Stronger power supply: CM5's power interface has been upgraded from 5V3A to 5V5A, supporting the PD protocol
-
Extensive I/O interfaces: Including PCIe 2.0, USB 3.0, MIPI DSI/CSI-2, and up to 30 GPIOs supporting various protocols (UART, I2C, SPI, etc.).
-
GPU upgraded from CM4's 600MHz VideoCore VI to CM5's 800MHz VideoCore VII
- CM5 supports 4Kp60 HEVC decoder and OpenGL ES 3.1, Vulkan 1.2
