Raspberry Pi Pico Basic Kit, MicroPython Programming Learning Kit

Description



Raspberry Pi Pico Basic Kit, MicroPython Programming Learning Kit

Tested and selected by Professional Engineer, With Rich Tutorials And Resources
Fast Getting Started With Raspberry Pi Pico And MicroPython Programming.

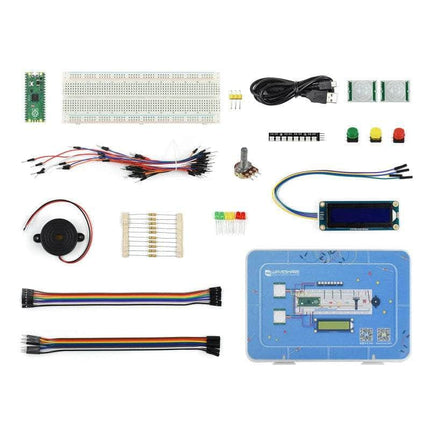

What's In The Kit


Raspberry Pi Pico With Pre-Soldered Header

A Low-Cost, High-Performance Microcontroller Board With Flexible Digital Interfaces

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 2MB of on-board Flash memory
  • Castellated module allows soldering direct to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 26 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 3 x12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support
ITEM DESCRIPTION
LCD1602 RGB Module LCD1602 RGB backlight character LCD, using I2C bus to display text or adjust RGB backlight
PIR motion sensor Pyroelectric IR sensor, outputs electric switch signal when IR array from human/animal body is detected
8-Bit WS2812 RGB LED 8x RGB LED, play around with cool light effects by programming
Alarm Quality active announciator, used for alarming or playing music
Single-joint potentiometer Adjustable potentiometer, 0~10K range, used for ADC test, volume/brightness adjustment, etc.
Round buttons Three colors, for button/switch detection
5mm LED Three colors, for experiments like traffic light, PWM adjusted light, etc.
330R resistors Providing current-limit protection when connected with LED in series

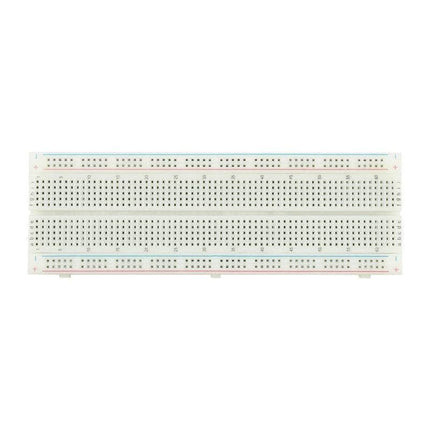

Breadboard and wires
Jumper wires		 Quality 830 breadboard and sorts of wires, easy for connecting components
Plastic box Customized box for storing the modules and components






Raspberry Pi Pico Basic Kit, MicroPython Programming Learning Kit

Product form
Free pickup in our shop(s)

SKU: Raspberry-Pi-Pico-Basic-Kit

$69.00 $59.00 Excl. GST

$59.00
New stock coming, dispatch in 8-10 days.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description



    Raspberry Pi Pico Basic Kit, MicroPython Programming Learning Kit

    Tested and selected by Professional Engineer, With Rich Tutorials And Resources
    Fast Getting Started With Raspberry Pi Pico And MicroPython Programming.

    What's In The Kit


    Raspberry Pi Pico With Pre-Soldered Header

    A Low-Cost, High-Performance Microcontroller Board With Flexible Digital Interfaces

    • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
    • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
    • 264KB of SRAM, and 2MB of on-board Flash memory
    • Castellated module allows soldering direct to carrier boards
    • USB 1.1 with device and host support
    • Low-power sleep and dormant modes
    • Drag-and-drop programming using mass storage over USB
    • 26 × multi-function GPIO pins
    • 2 × SPI, 2 × I2C, 2 × UART, 3 x12-bit ADC, 16 × controllable PWM channels
    • Accurate clock and timer on-chip
    • Temperature sensor
    • Accelerated floating-point libraries on-chip
    • 8 × Programmable I/O (PIO) state machines for custom peripheral support
    ITEM DESCRIPTION
    LCD1602 RGB Module LCD1602 RGB backlight character LCD, using I2C bus to display text or adjust RGB backlight
    PIR motion sensor Pyroelectric IR sensor, outputs electric switch signal when IR array from human/animal body is detected
    8-Bit WS2812 RGB LED 8x RGB LED, play around with cool light effects by programming
    Alarm Quality active announciator, used for alarming or playing music
    Single-joint potentiometer Adjustable potentiometer, 0~10K range, used for ADC test, volume/brightness adjustment, etc.
    Round buttons Three colors, for button/switch detection
    5mm LED Three colors, for experiments like traffic light, PWM adjusted light, etc.
    330R resistors Providing current-limit protection when connected with LED in series
    Breadboard and wires
    Jumper wires    		 Quality 830 breadboard and sorts of wires, easy for connecting components
    Plastic box Customized box for storing the modules and components
