Raspberry Pi SSD 512GB Kit for Raspberry Pi 5

Description

Raspberry Pi SSD 512GB Kit for Raspberry Pi 5

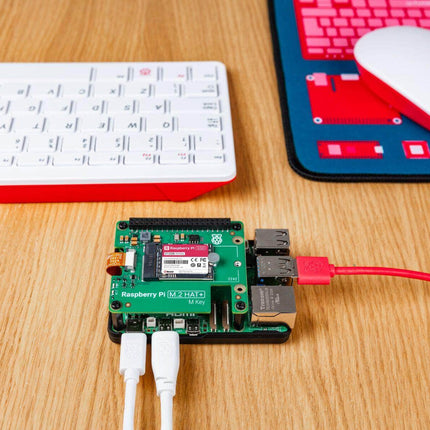

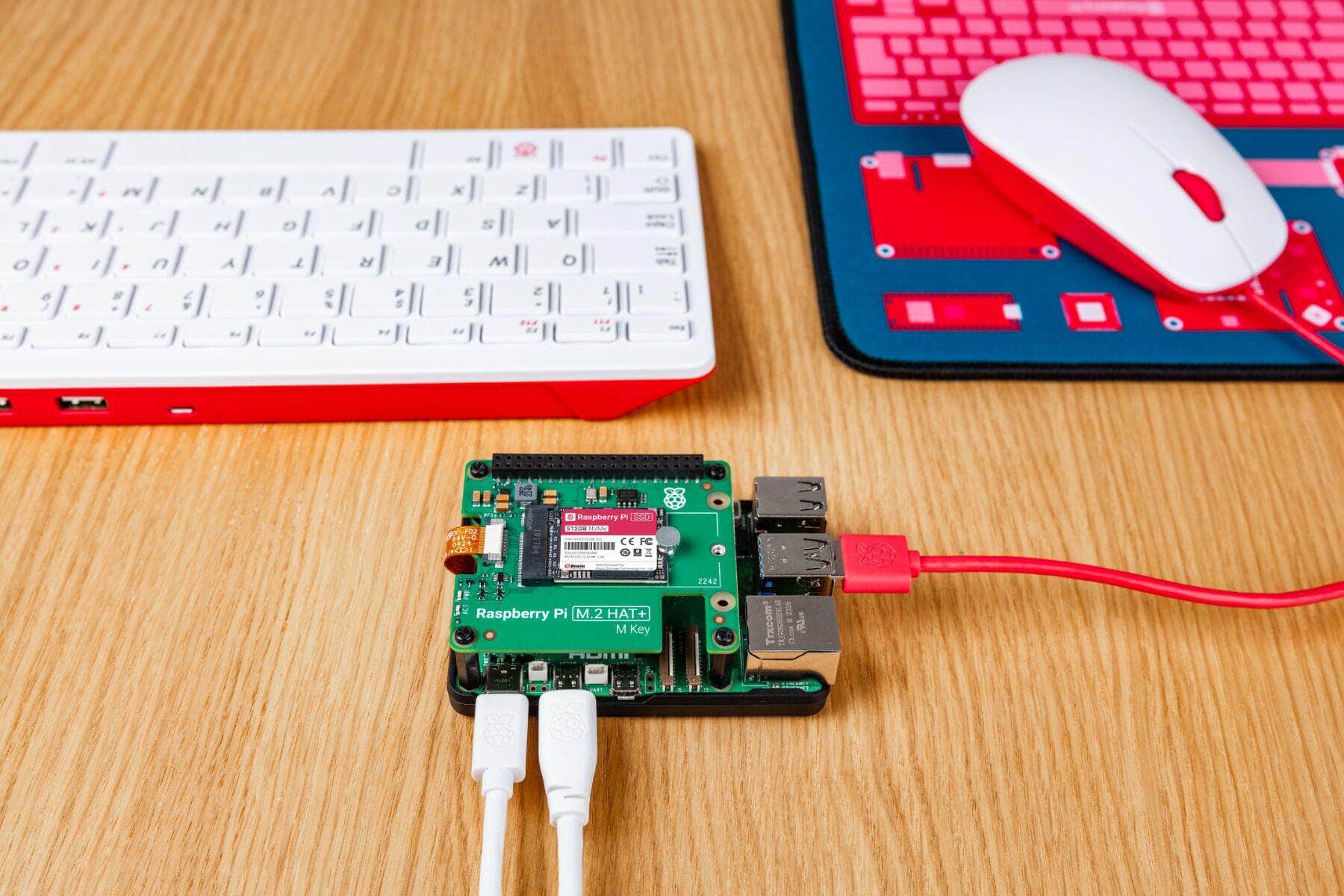

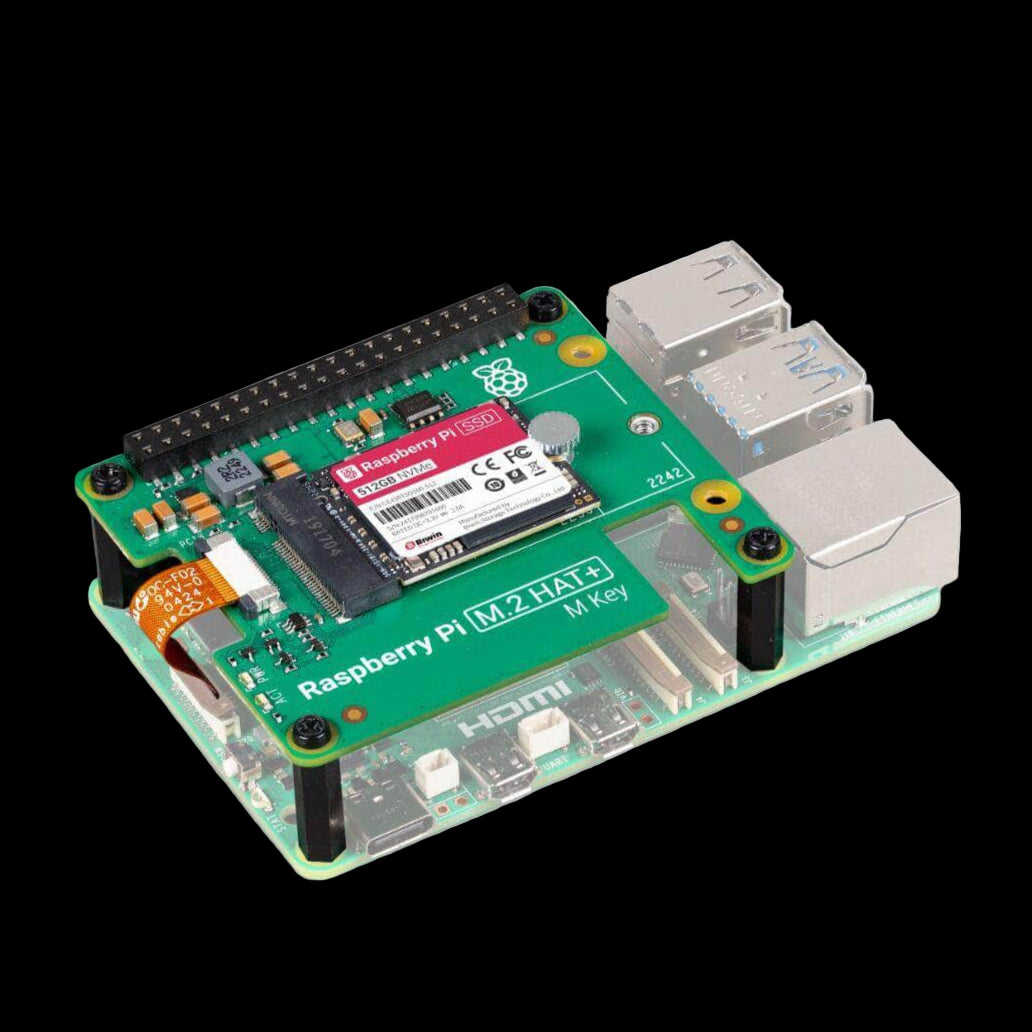

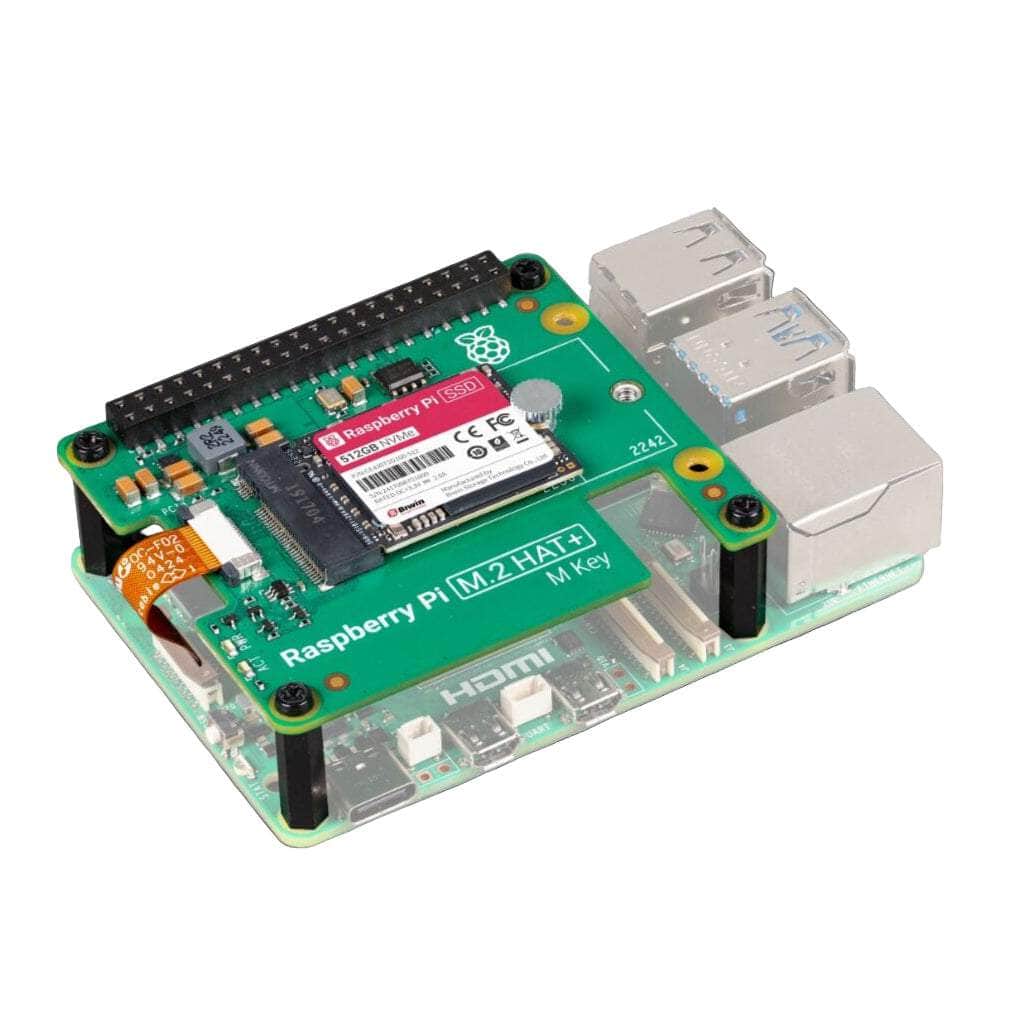

The Raspberry Pi SSD Kit is a Raspberry Pi M.2 HAT+ with a Raspberry Pi NVMe SSD. It unlocks outstanding performance for I/O intensive applications on Raspberry Pi 5, including super-fast startup when booting from SSD.

Feature

  • SSD + M.2 HAT+ Bundle for Raspberry Pi 5
  • 512GB NVMe – 50k IOPS (4kB random reads) / 90k IOPS (4kB random writes)
  • Conforms to the Raspberry Pi HAT+ specification
  • SSD Pre-assembled to the HAT+(512GB)
  • Standoffs/screws included

Specification

Capacity

512GB

Operating temperature

0℃ to 50℃ (ambient)

Production lifetime:

The Raspberry Pi SSD Kit will remain in production until at least

January 2032

Compliance

For a full list of local and regional product approvals,

Please visit pip.raspberrypi.com


Hardware Overview


Part List

Raspberry Pi M.2 HAT+ (with PCI-E cable)

X1

Raspberry Pi NVMe 2230 SSD - 512GB

X1

16mm GPIO Stacking Header

X1

Nylon Standoff/Screw set

X1

Raspberry Pi SSD 512GB Kit for Raspberry Pi 5

Product form
Free pickup in our shop(s)

SKU: 112990287

$139.00 $119.00 Excl. GST

$119.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    Raspberry Pi SSD 512GB Kit for Raspberry Pi 5

    The Raspberry Pi SSD Kit is a Raspberry Pi M.2 HAT+ with a Raspberry Pi NVMe SSD. It unlocks outstanding performance for I/O intensive applications on Raspberry Pi 5, including super-fast startup when booting from SSD.

    Feature

    • SSD + M.2 HAT+ Bundle for Raspberry Pi 5
    • 512GB NVMe – 50k IOPS (4kB random reads) / 90k IOPS (4kB random writes)
    • Conforms to the Raspberry Pi HAT+ specification
    • SSD Pre-assembled to the HAT+(512GB)
    • Standoffs/screws included

    Specification

    Capacity

    512GB

    Operating temperature

    0℃ to 50℃ (ambient)

    Production lifetime:

    The Raspberry Pi SSD Kit will remain in production until at least

    January 2032

    Compliance

    For a full list of local and regional product approvals,

    Please visit pip.raspberrypi.com


    Hardware Overview


    Part List

    Raspberry Pi M.2 HAT+ (with PCI-E cable)

    X1

    Raspberry Pi NVMe 2230 SSD - 512GB

    X1

    16mm GPIO Stacking Header

    X1

    Nylon Standoff/Screw set

    X1
