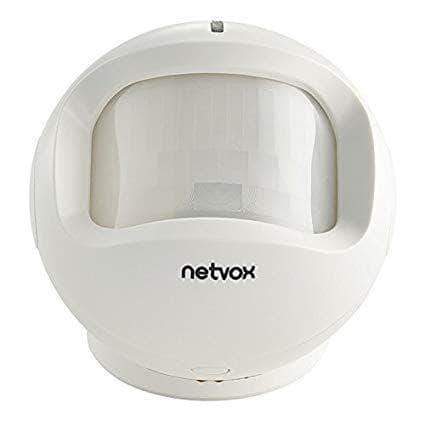

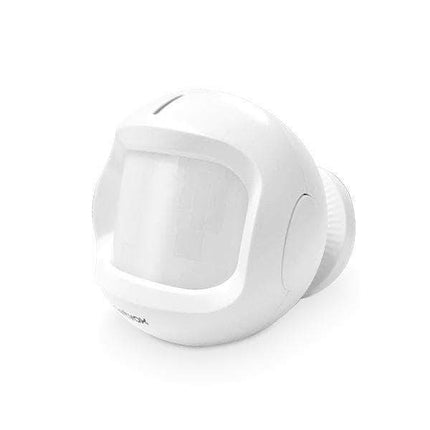

RB11E Netvox LoRaWAN Wireless Occupancy Temperature Light Sensor

Description

RB11E Netvox LoRaWAN Wireless Occupancy Temperature Light Sensor

RB11E is a long distance LoRaWAN™ PIR-Based Device (Class A). RB11E combines motion detection, temperature, and illumination sensors. With real-time motion detection, RB11E senses the movement of people, animal or other objects and if a person or an object moves in the monitoring area, RB11E will detect the infrared signal and report the status information to the gateway. Users can execute different instructions or scenes according to different configurations. RB11E also reports temperature and light level. It is mainly used for indoor detection.

Features:

  • Wireless Range of 10km
  • LoRaWAN Class A compatible
  • Frequency Hopping Spread Spectrum (FHSS)
  • Improved Interference Immunity
  • Improved Power Management for Longer Battery Life
  • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)
  • Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
  • Over-The-Air Updates (Future)
  • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data
  • And Set Alerts Via SMS Text And Email (Optional)
  • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
  • Uses SX1276 Wireless Communication Module

Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell

Electric

Power Supply

2pcs Of 3.6V ER14505 AA

Operating Voltage Range

3V~3.6V

Standby Current

110uA

Transmitting Current (Max)

120mA

Receiving Current (Max)

11mA

 Measurement Accuracy

±0.1V


Physical

Dimension

78mm*78.8mm*82.2mm

Weight

125.8g

Operating Humidity

<90%RH

Operating Temperature

-20°C ~ 55°C

Storage Temperature

-40°C ~ 85°C

Built-In Devices

Tamper Switch, Light Sensor, Temperature Sensor



Documentation:

Datasheet

User manual

Netvox LoRaWAN Catalog

Payload Format and Examples

Netvox LoRaWAN Application Command V1.9

Netvox LoRaWAN Application Devicetype V1.9

Example of payload (ConfigureCmd)_R718CK2

example of payload (ReportDataCmd)

Frequency Conversion (Sub frequencies of AU915)

Lora Calibrate Tool User Manual

Programming Instruction STlink



RB11E Netvox LoRaWAN Wireless Occupancy Temperature Light Sensor

Product form

SKU: RB11E-923

$199.00 $179.00 Excl. GST

$179.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    RB11E Netvox LoRaWAN Wireless Occupancy Temperature Light Sensor

    RB11E is a long distance LoRaWAN™ PIR-Based Device (Class A). RB11E combines motion detection, temperature, and illumination sensors. With real-time motion detection, RB11E senses the movement of people, animal or other objects and if a person or an object moves in the monitoring area, RB11E will detect the infrared signal and report the status information to the gateway. Users can execute different instructions or scenes according to different configurations. RB11E also reports temperature and light level. It is mainly used for indoor detection.

    Features:

    • Wireless Range of 10km
    • LoRaWAN Class A compatible
    • Frequency Hopping Spread Spectrum (FHSS)
    • Improved Interference Immunity
    • Improved Power Management for Longer Battery Life
    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)
    • Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
    • Over-The-Air Updates (Future)
    • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data
    • And Set Alerts Via SMS Text And Email (Optional)
    • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
    • Uses SX1276 Wireless Communication Module

    Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell

    Electric

    Power Supply

    2pcs Of 3.6V ER14505 AA

    Operating Voltage Range

    3V~3.6V

    Standby Current

    110uA

    Transmitting Current (Max)

    120mA

    Receiving Current (Max)

    11mA

     Measurement Accuracy

    ±0.1V


    Physical

    Dimension

    78mm*78.8mm*82.2mm

    Weight

    125.8g

    Operating Humidity

    <90%RH

    Operating Temperature

    -20°C ~ 55°C

    Storage Temperature

    -40°C ~ 85°C

    Built-In Devices

    Tamper Switch, Light Sensor, Temperature Sensor



    Documentation:

    Datasheet

    User manual

    Netvox LoRaWAN Catalog

    Payload Format and Examples

    Netvox LoRaWAN Application Command V1.9

    Netvox LoRaWAN Application Devicetype V1.9

    Example of payload (ConfigureCmd)_R718CK2

    example of payload (ReportDataCmd)

    Frequency Conversion (Sub frequencies of AU915)

    Lora Calibrate Tool User Manual

    Programming Instruction STlink
