reCamera 2002 64GB Open Source AI Camera

Description

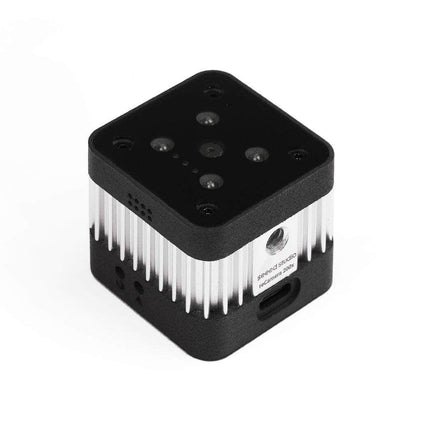

reCamera 2002 64GB Open Source AI Camera

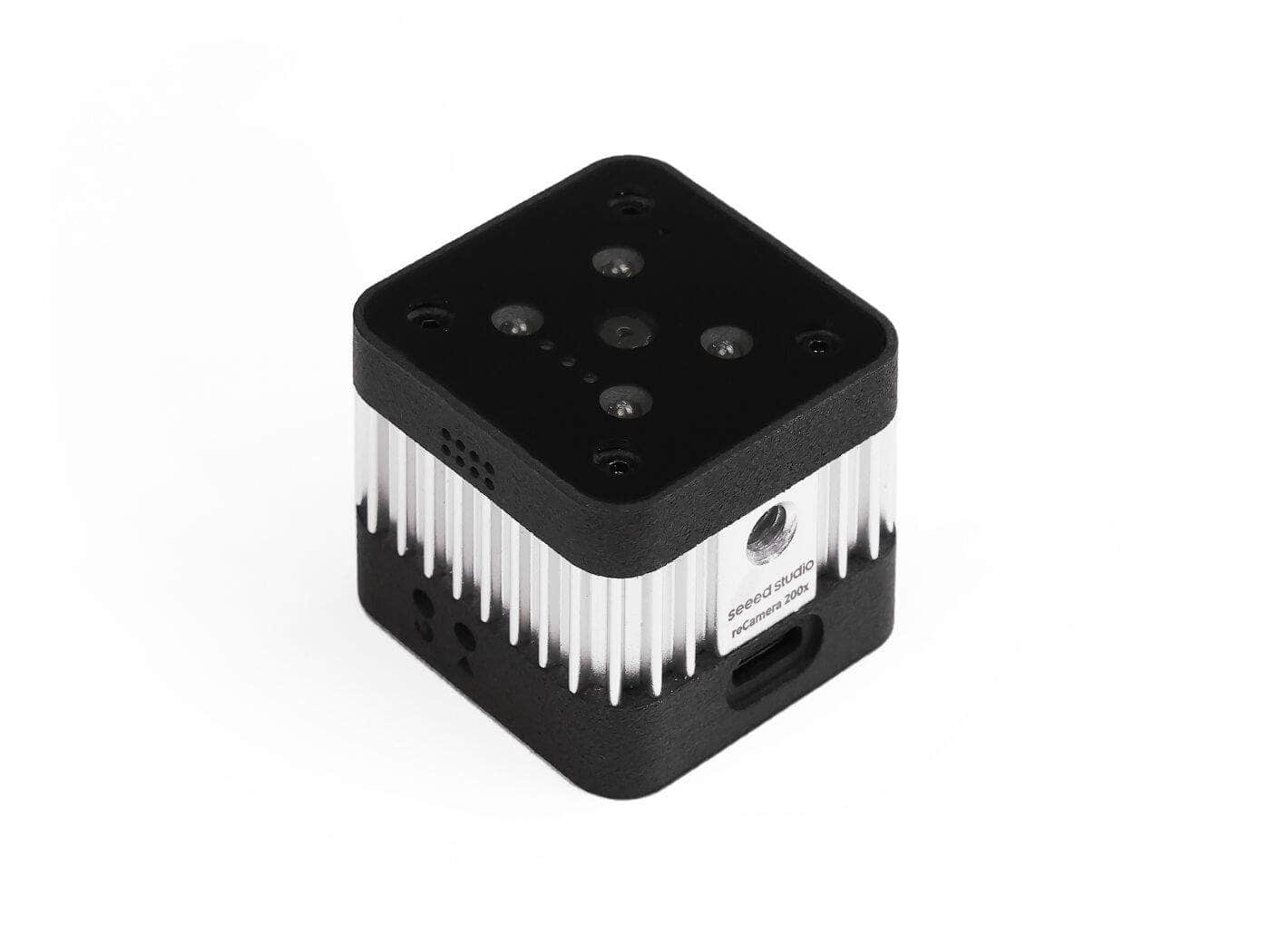

reCamera is a pocket-sized, modular AI camera powered by a RISC-V SoC running Linux. Featuring 1 TOPS @INT8, a 5MP camera, built-in YOLOv11, and support for custom AI models and Node-RED, it’s the fastest way for developers to deploy AI vision into any system.

Features:

  1. From Demo to Production in Days, Not Months

Ready Custom AI Models: Built-in YOLO11 with commercial license, Roboflow & SenseCraft AI support.

One-Line Deployment: Quick YOLO model deployment with a single command.

Easy Integration: Pocket-size, PoE&CAN-bus for expasion, Magnetic and 1/4" Thread Mount.

Reliable Performance: Optimized heat dissipation for stability.

  1. Code or No-Code: Vision AI for Every Developer's Workflow

No-Code for Beginners: Node-RED for effortless custom workflows.

Pro-Code for Experts: C++ SDK and OpenCV C++ APIs for deeper diving.

Dedicated Accessories: Gimbals and more to enhance reCamera’s functionality.

Seeed Vision AI Ecosystem: From MCUs to high-end robotics, Seeed full Vision AI matrix ensures the ideal pair with reCamera.

  1. Modular by Design, Customizable by Demand

Fully Open Source: Tailor reCamera to your needs.

Modular Design: Combine/Mix and match sensor, base, and core boards for endless configurations.

Plug & Swap: Easily assemble the reCamera for your unique needs.



Walk through the whole pipeline to discover how reCamera, the tiny yet powerful AI camera, simplifies and speed up your vision AI development.

Specification

reCamera 200x Series

reCamera 2002

reCamera 2002w

Processor System

Al Performance

1TOPS@Int8

SOC

SG2002

CPU

C906@1GHz + C906@700MHz

MCU

8051@8KB SRAM

Memory

256MB

Video Encode

5MP @ 30Fps

Camera

Sensor

OV5647

Resolution

5M(2592*1944) Pixels

Chip

1/4" CMOS Sensor

Pixel Size

1.4um

Output Format

RAW 10

Maximum Frame Rate

full size: 15fps

Aperture

F2.8

Equivalent Focal Length

3.46mm

Field of View

65°

Distortion

<1%

Lens structure

5P

Storage

eMMC

8GB/64GB

Expansion

removable TF card (up to 2TB, not included)

I/O

Ethernet

100Mbps

Wireless

/

WIFI2.4G/5G BT4.2/5.0

USB

USB Type-C(2.0)

Button

1x Reset Button, 1x Boot Button

Fill Light

0.3w White Light

LED Indicator

1x Power indicator,

1x eMMC status indicator,

1x CPU status(User LED)

Audio

Mic

On-board Mic

Speaker

External Speaker

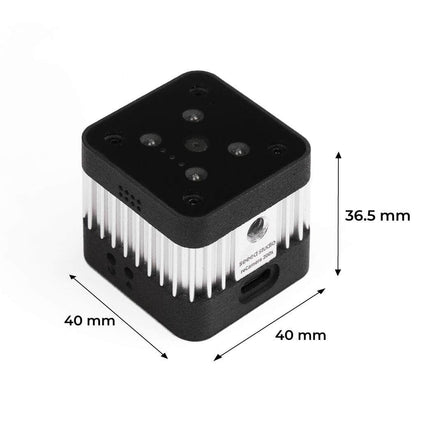

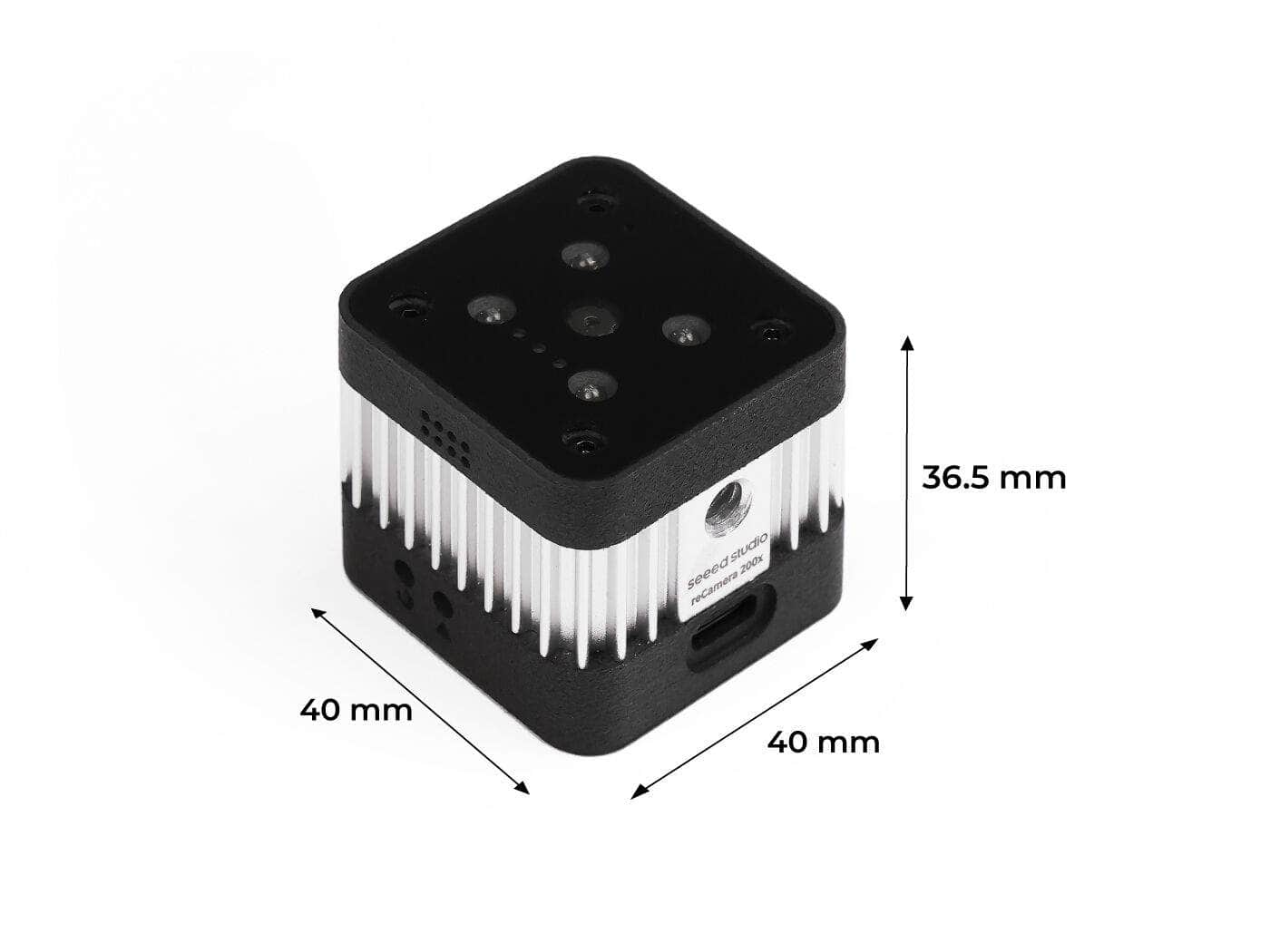

Dimension

40x40x36.5mm

Power

5V/1A USB Type C

Operation Temperature

-20~50°C

Operation Humidity

95%


Hardware Overview


Application

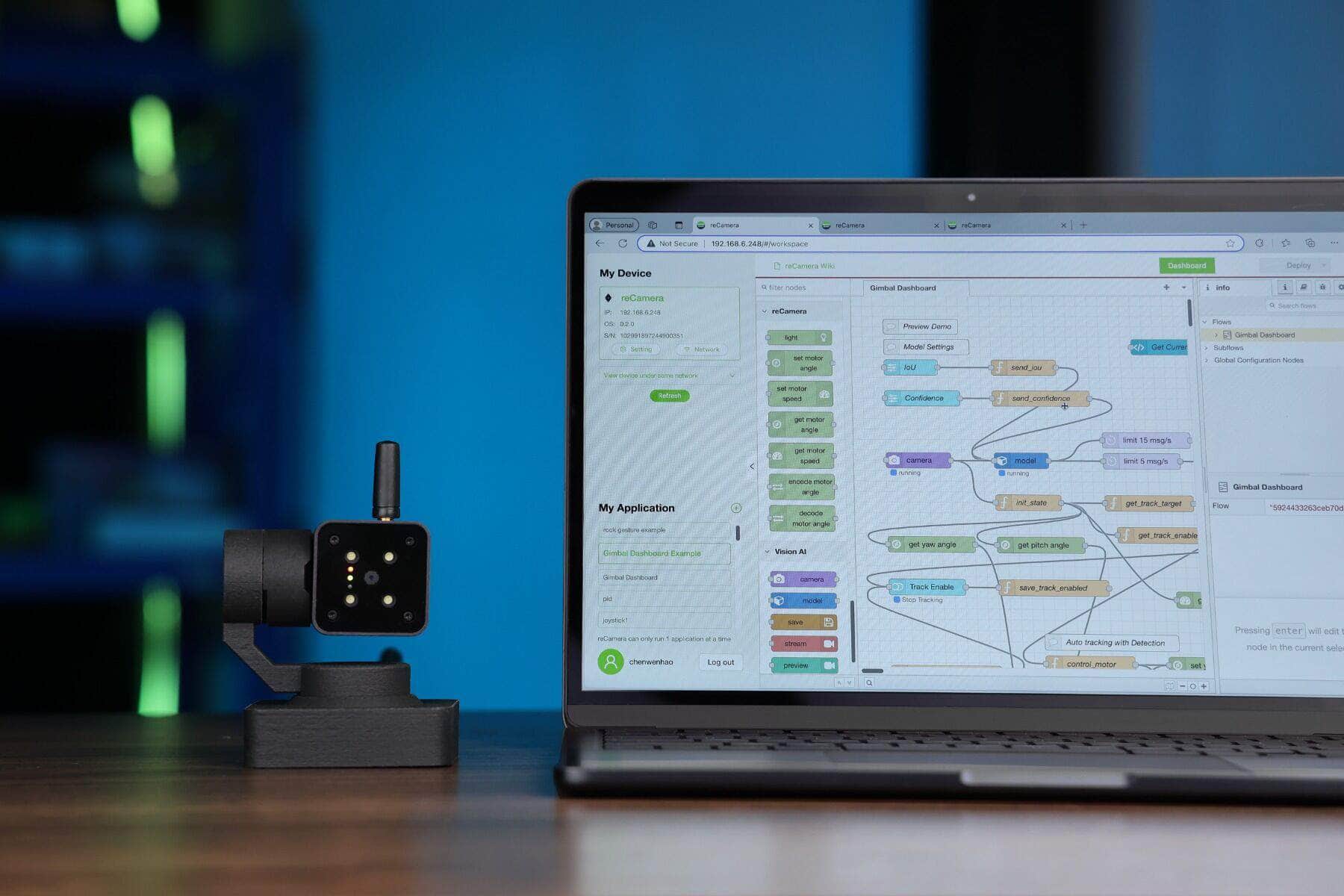

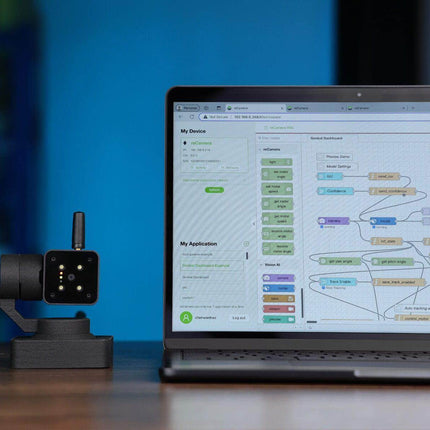

Node-RED for Effortless Custom Vision AI Workflows

With its plug and play design, and built-in YOLO 11 models, you can effortlessly drag and drop to start using reCamera. Set up custom vision AI workflows and preview AI Model processing on Node-RED, all with zero complex coding.

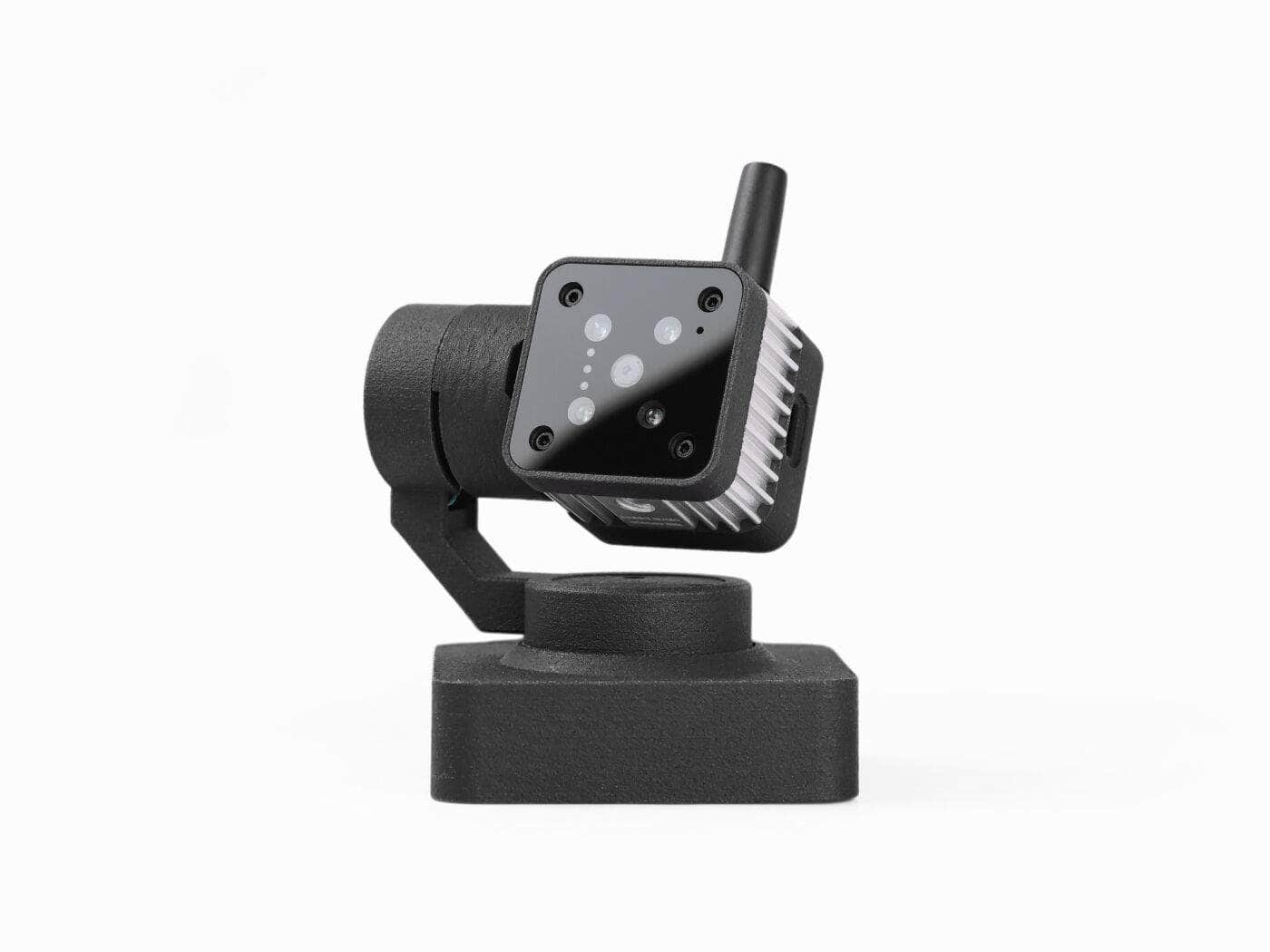

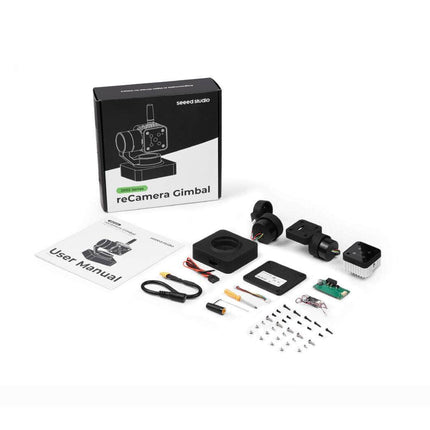

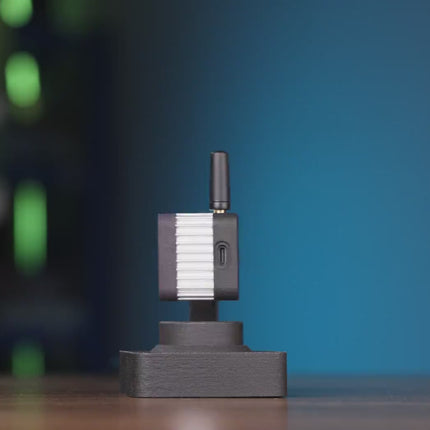

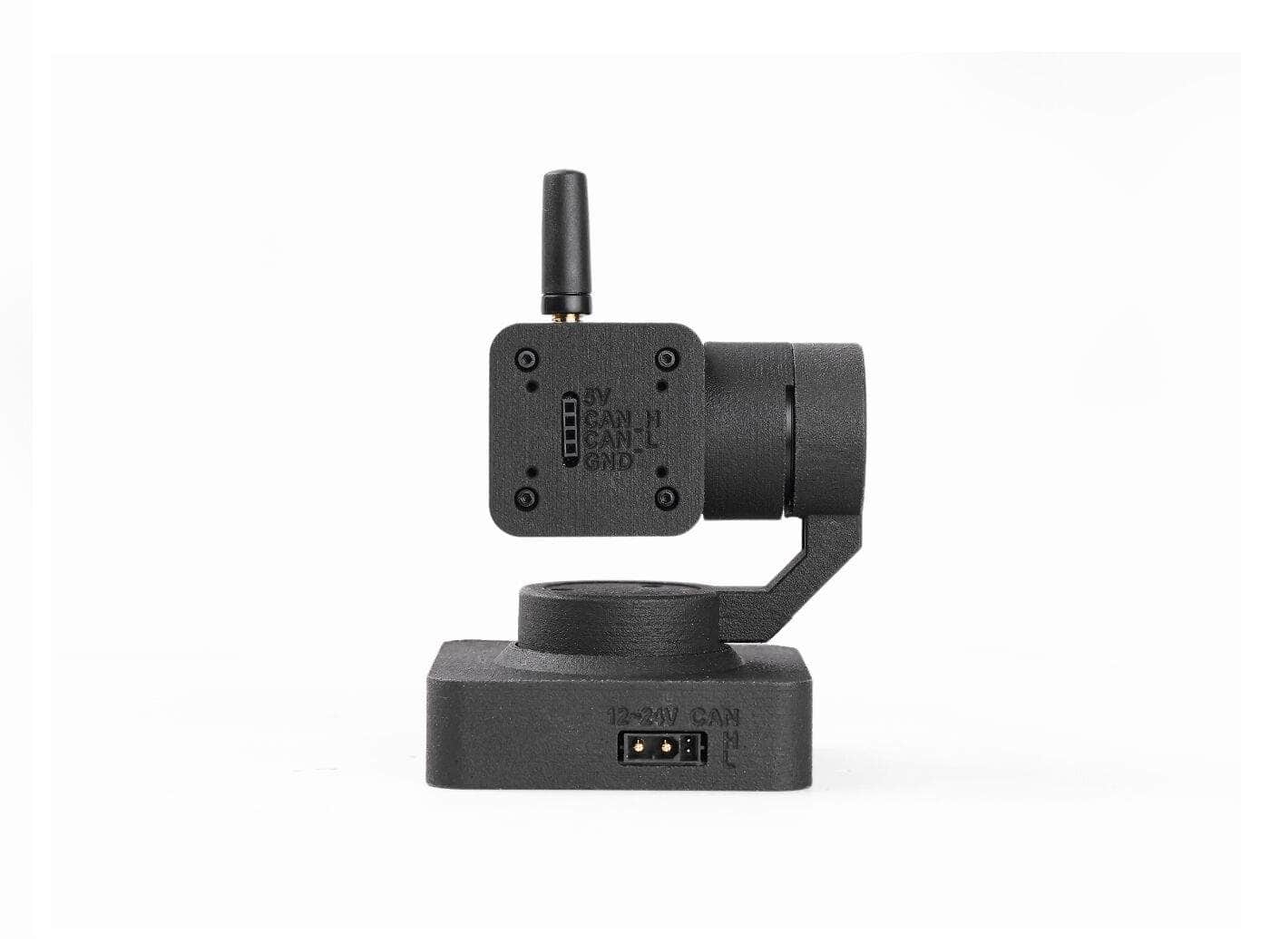

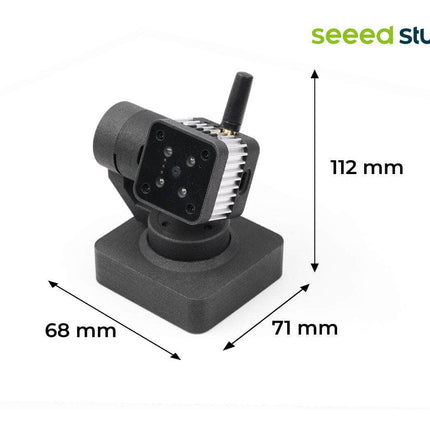

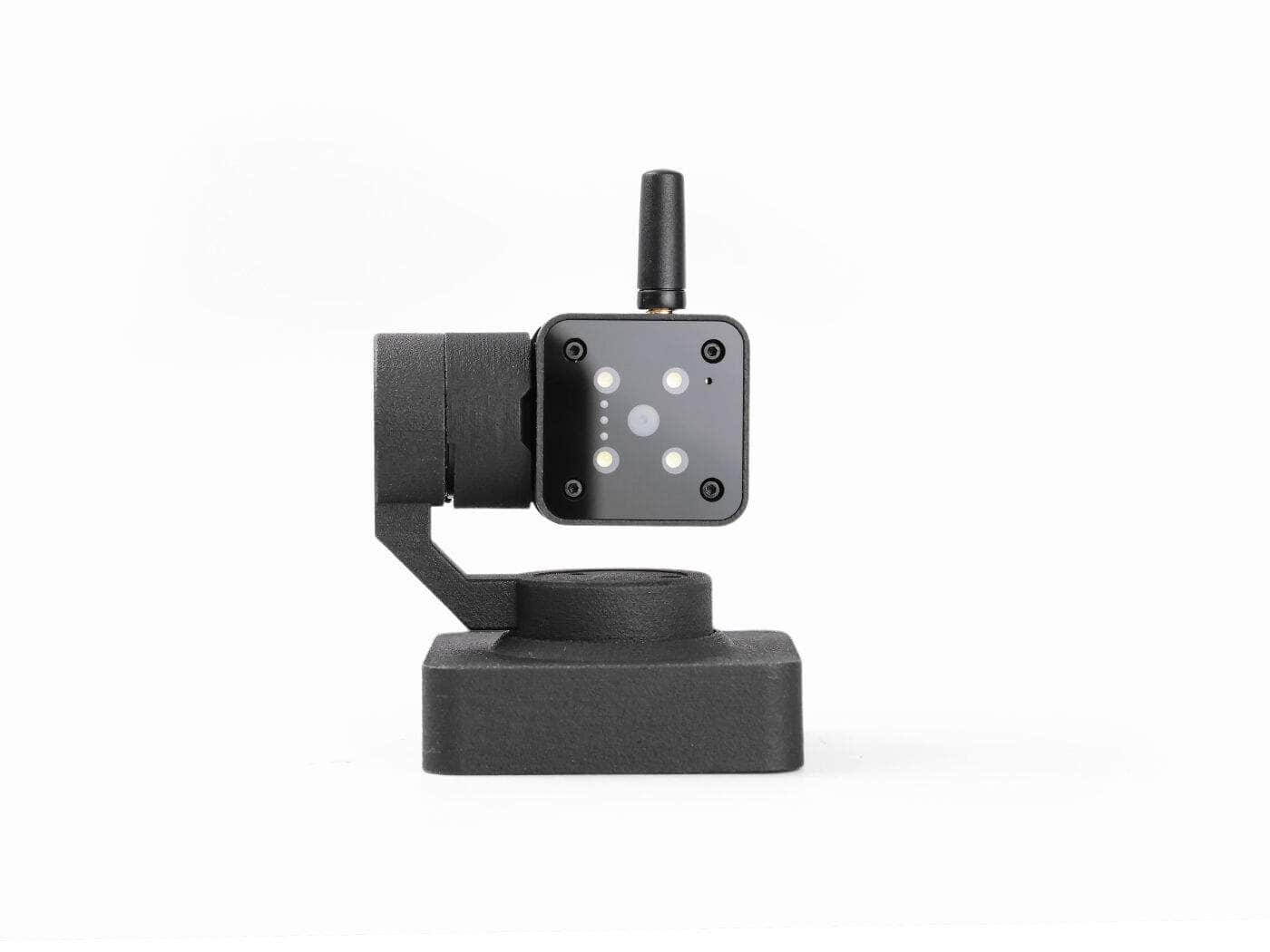

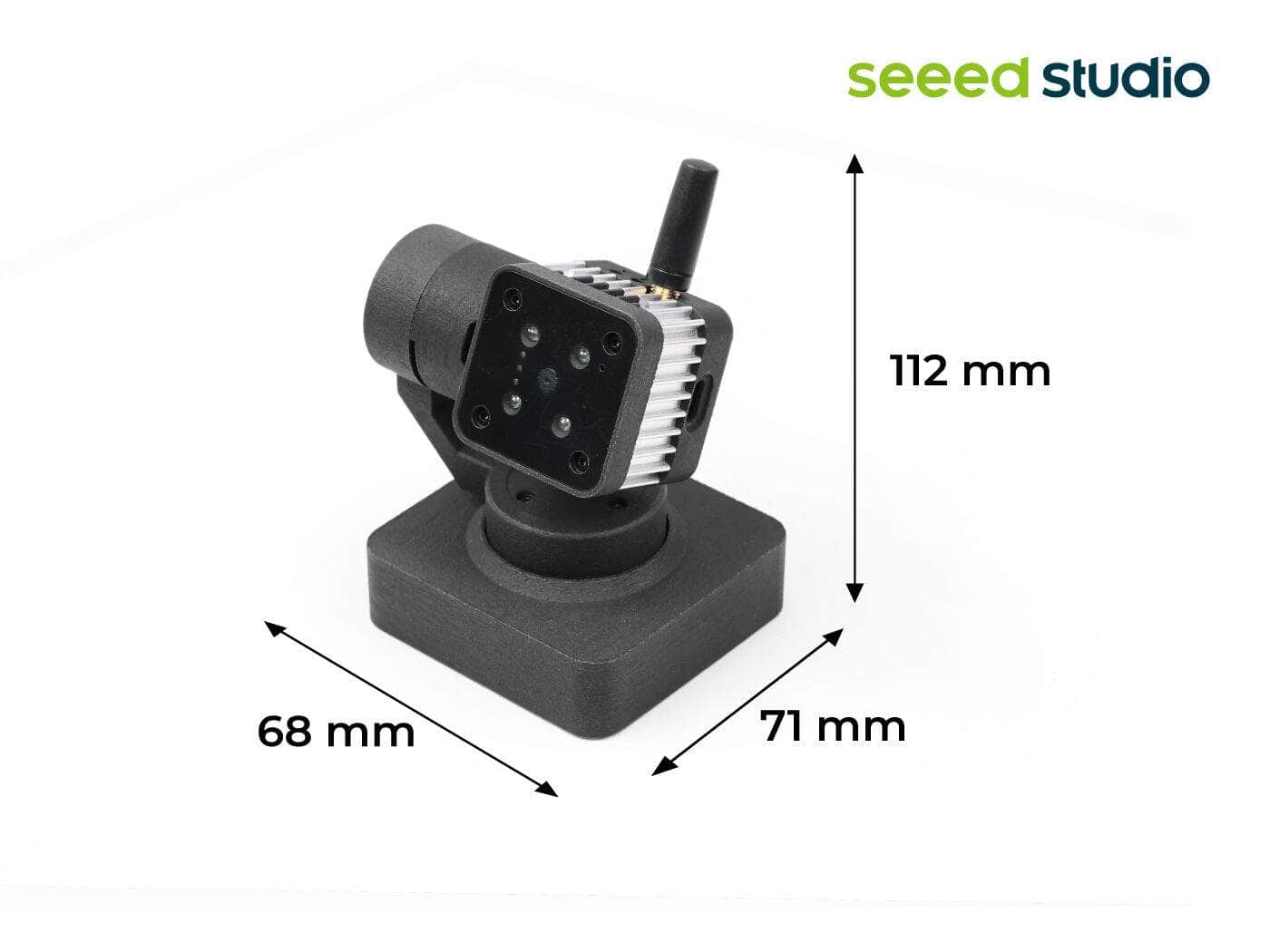

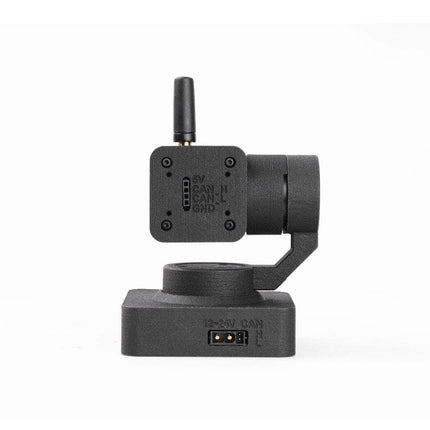

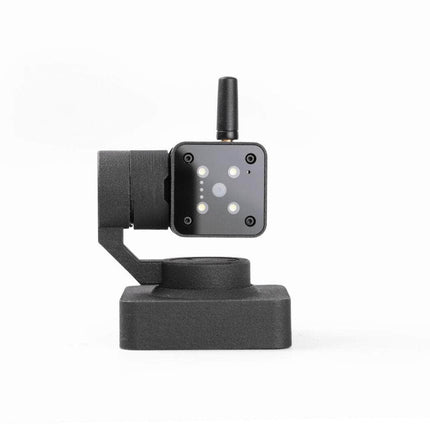

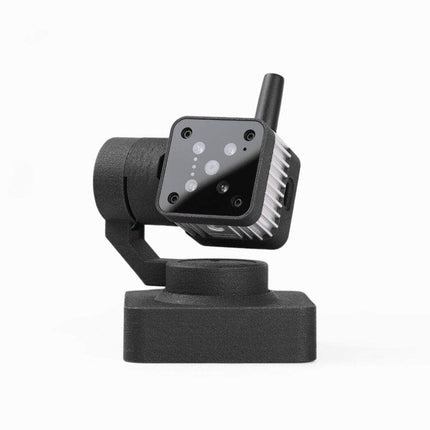

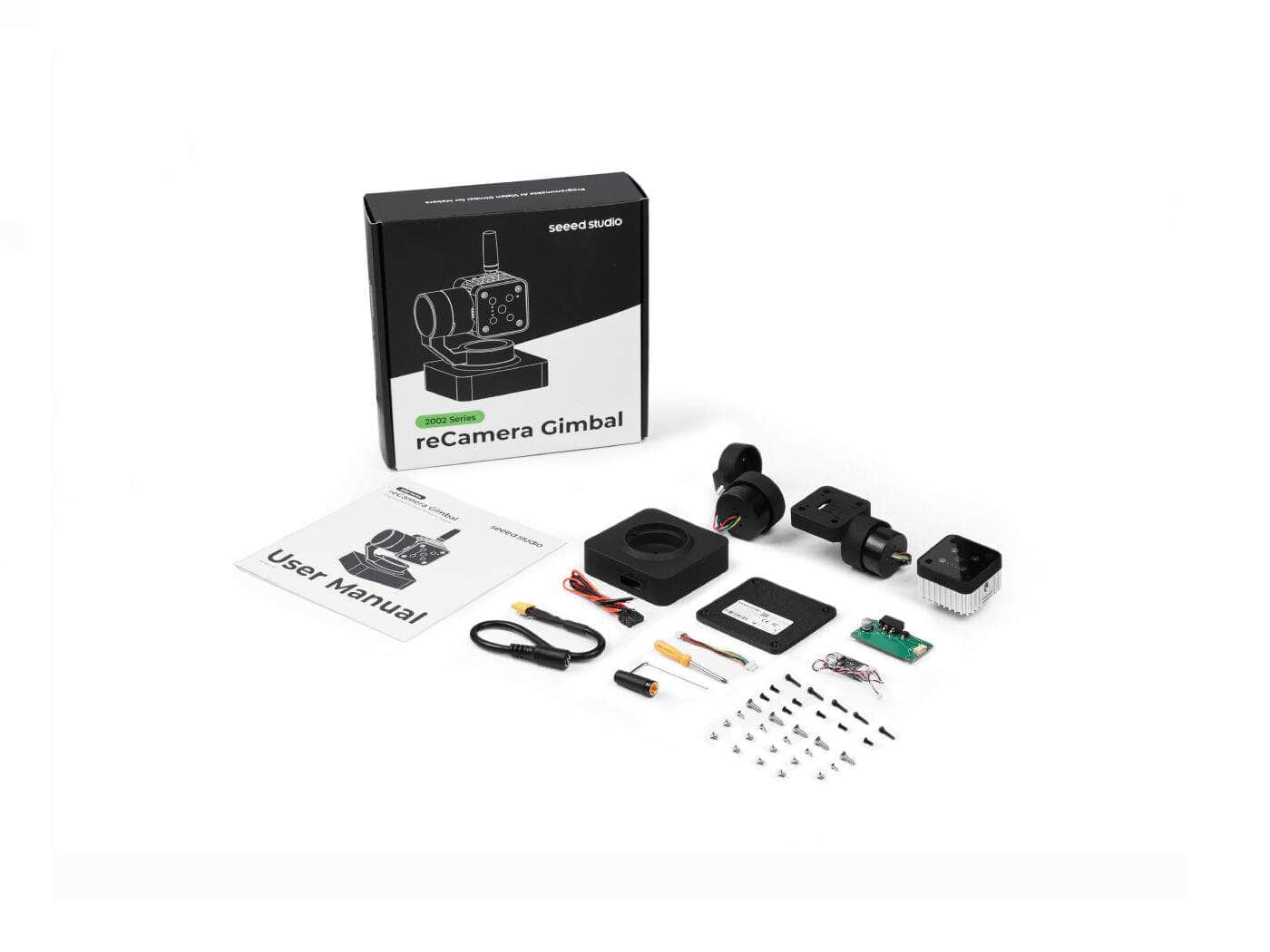

reCamera Gimbal

Effortlessly transform your gimbal with AI-powered control by connecting this camera module. Gain precise, two-axis movement—up, down, left, right—without any coding to start. Using the intuitive Node-RED platform, you can easily integrate and fine-tune the system, allowing computer vision via YOLO v11 to enhance your gimbal's tracking capabilities. Just set up your preferred model in Node-RED, make a few adjustments, and experience the full potential of computer vision in your gimbal.

reCamera Robot Arm

Enhance your robotic arm’s capabilities with seamless AI integration through this advanced camera module. Featuring flexible interface expansion and the open-source reCamera OS, this module adds powerful computer vision to your robotics setup for precise control and intelligent object recognition. Tailor it to your specific needs, and let the versatile interface handle complex tasks with advanced vision and adaptability.

reCamera 2002 64GB Open Source AI Camera

Product form
Free pickup in our shop(s)

SKU: 102991895

$129.00 $109.00 Excl. GST

$109.00
New stock coming, dispatch in about 15 days.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
