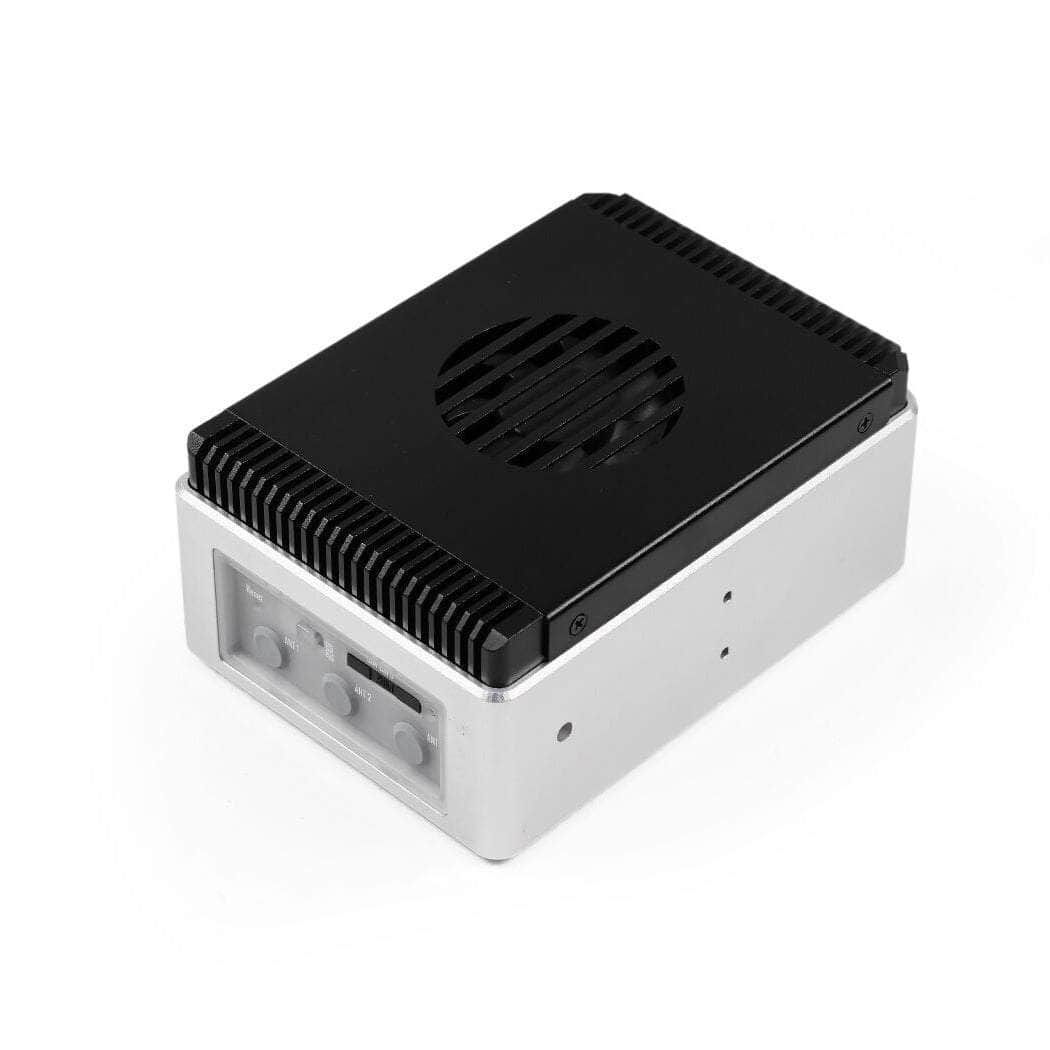

reComputer AI Industrial R2135 R2145 Raspberry Pi 5 High-Performance Edge AI Computer

Description

reComputer AI Industrial R2135 R2145 Raspberry Pi High-Performance Edge AI Computer, Based on Raspberry Pi 5, Hailo-8 AI Acceleration Module


  • Powerful Performance with Raspberry Pi CM5 Module: 4GHz quad-core 64-bit Arm Cortex-A76 & VideoCore VII GPU. Features up to 16GB RAM.
  • AI-Optimized Computing: With the Hailo-8 AI accelerator, it delivers up to 26 TOPS, enabling real-time, high-performance AI vision processing across multiple channels.
  • Rich Connectivity: 2 x HDMI, 1 x Gigabit Ethernet, 2 x USB 3.2 Type-A, 1 x USB 2.0 Type-C. 2 Slot for SSD storage and AI acceleration.
  • Advanced Video Processing: 4k 60fps H.265 decoder supporting 2-8 real-time (720p)multi-stream inferences for object detection and tracking.
  • Enhanced Industrial Reliability: Includes additional PoE, 4G/LoRa, TPM, and RTC.

Seeed Studio Tutorial of AI Kit with Raspberry Pi: From Zero to Hero

This course is designed to teach you how to harness the power of AI on the Raspberry Pi, with a focus on using an AI kit to perform computer vision tasks. You'll learn how to integrate AI into real-world IoT applications, from object detection and image classification to more complex visual recognition tasks.

We will guide you step-by-step through setting up your Raspberry Pi, using AI frameworks, and deploying these models in various practical scenarios.


Specification

Basic Information

CPU & GPU

Raspberry Pi Compute Module 5, 2.4GHz quad-core 64-bit Arm Cortex-A76 & VideoCore VII GPU

AI Processor

Hailo-8 M.2 Acceleration Stick, 26 Tera-Operations Per Second

Memory & Storage

8GB RAM, 32GB eMMC

Operating System

Raspbian, Debian



Interfaces

Ethernet & USB

1x 10/100/1000 Mbps Ethernet (RJ45);

2x USB 3.2 (USB-A), 1x USB 2.0 (USB-C for debug/OS updates)

Display & Audio

2x HDMI 2.0 Ports (Standard); 1x 3.5mm Audio Jack

Expansion Slots

1x PCIe 3.0 to M.2 slot (M-key 2242, occupied by Hailo-8 AI accelerator);

1x Mini-PCIe for 4G, 1x SIM Card Slot

LED & Buttons

3x LEDs (Power/ACT/4G); 1x Reset Button, 1x Boot Switch

Wireless Communication

2.4/5.0 GHz Wi-Fi (On-chip Wi-Fi 5), BLE 5.0 (On-chip BLE 5.0), 4G LTE (Optional), 3x Antenna Holes



Device Specification



Ingress Protection

IP40

Operating Temperature

-20~65 °C

Heat Dissipation

Heatsink with Fan

Operating Humidity

10~95% RH

Reliability

Hardware Watchdog, High Accuracy RTC

Security

Encryption Chip TPM2.0/ATECC608A (Optional)

Warranty & Lifetime

2-year warranty, Production Lifetime until December 2036

Certification

CE, FCC, Telec, RoHS, REACH

Physical Specifications

130mm * 93mm * 55.5mm (W x H x D)

688g Net weight

Enclosure

Aluminium Alloy Casing with PC Side Panels

Mounting

Din-rail/Wall mounting



Hardware Overview




Application

With advanced features like object detection, object recognition, object tracking, OCR, and abnormal event detection with real-time alert triggers, this AI box is designed to deliver exceptional performance in resource-constrained environments.

  • Surveillance & Security

    Integrated into NVR systems for real-time video analytics, including object detection (e.g., intruders, abandoned items) and anomaly detection, enhancing situational awareness and security efficiency.

  • Smart Retail

    Create innovative Smart Retail solutions using AI-driven features like real-time visual product recognition, personalised shopping experiences, and advanced customer behaviour analytics for optimised store operations.
  • Smart Transportation

    Processes traffic and parking data from cameras/sensors at the edge, enabling intelligent traffic flow analysis and smart parking guidance to reduce congestion.
  • Digital Signage & Audience Engagement

    Links to cameras and content servers for dynamic content adaptation based on facial recognition and audience demographics, improving engagement in public spaces or retail environments.
  • Smart Building

    Integrates sensors and IoT devices to monitor and optimise building systems such as lighting, HVAC, and security. Uses AI for energy efficiency, predictive maintenance, and occupant comfort, enhancing building management.


Read more
