reComputer Robotics J401 Jetson Orin Nano/Orin NX

Description

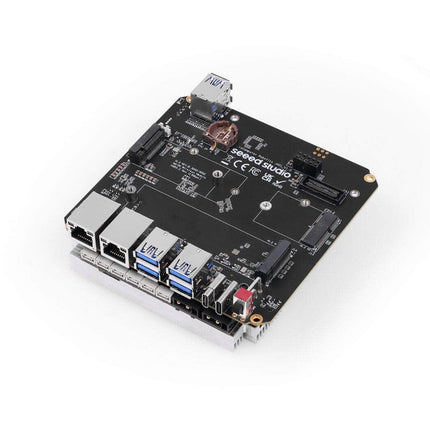

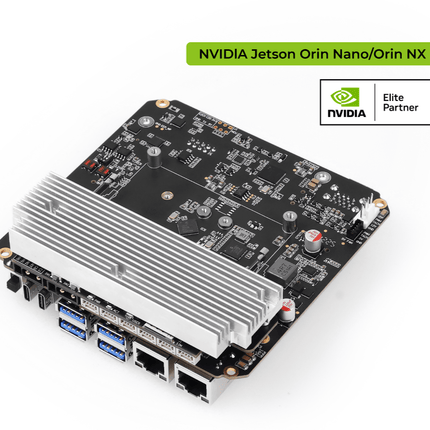

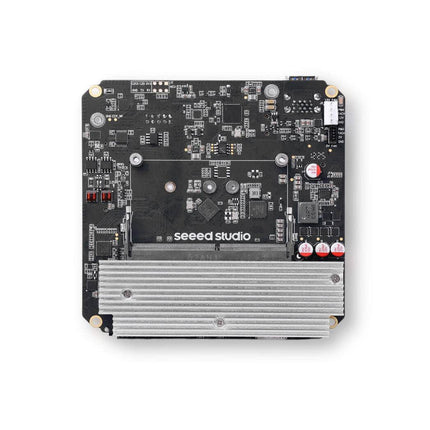

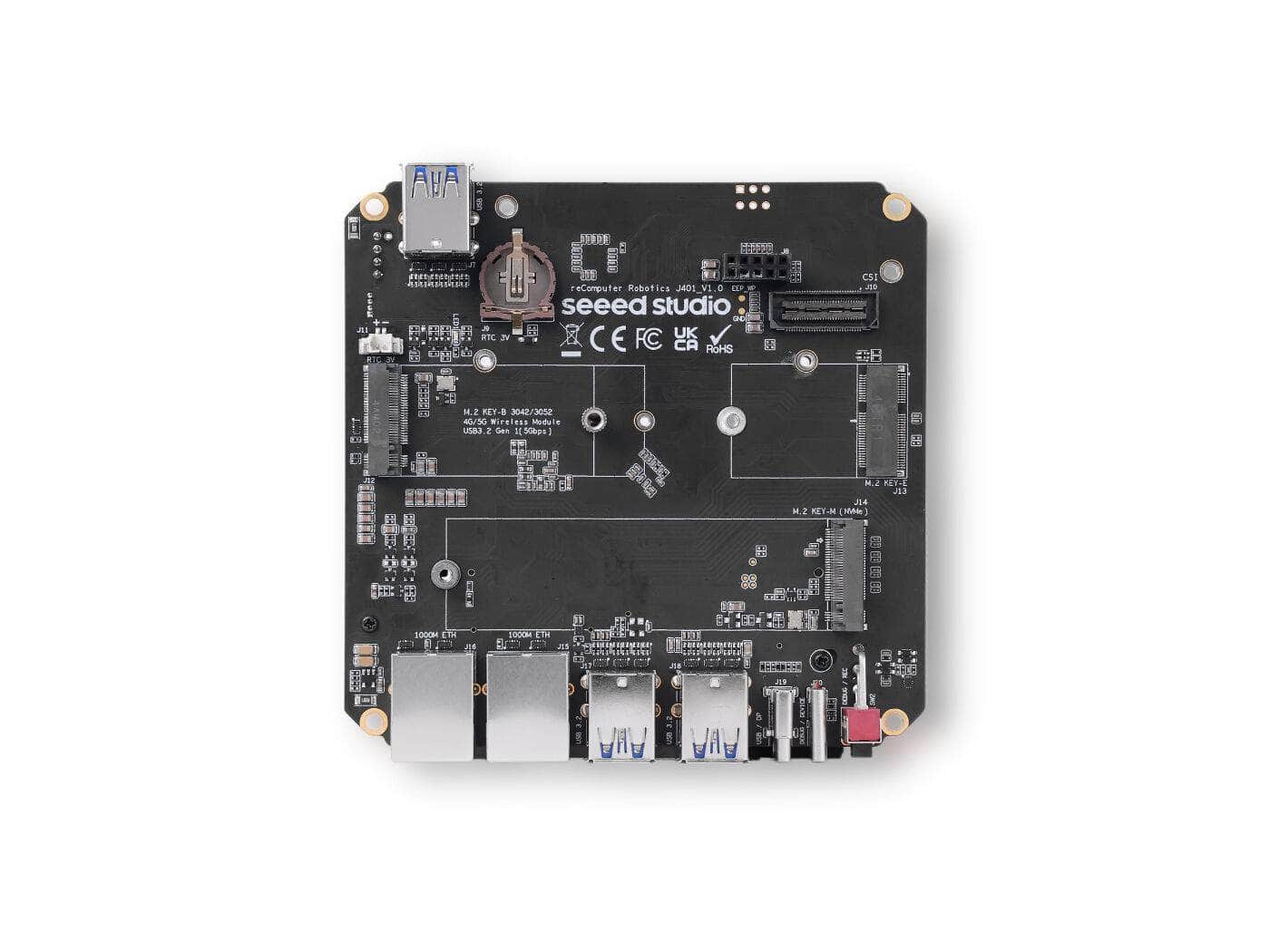

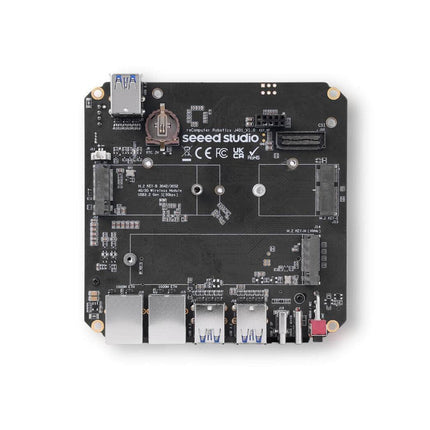

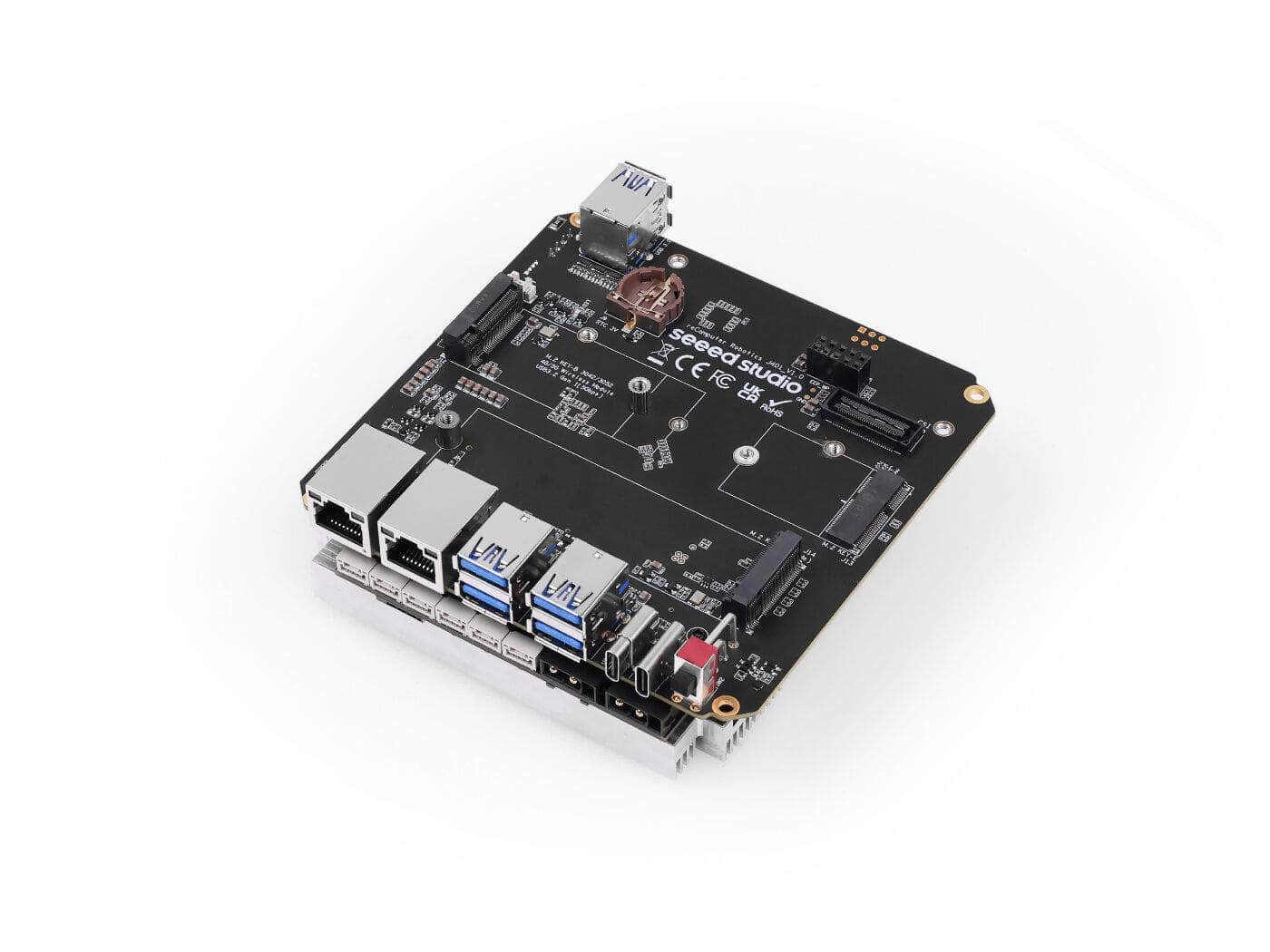

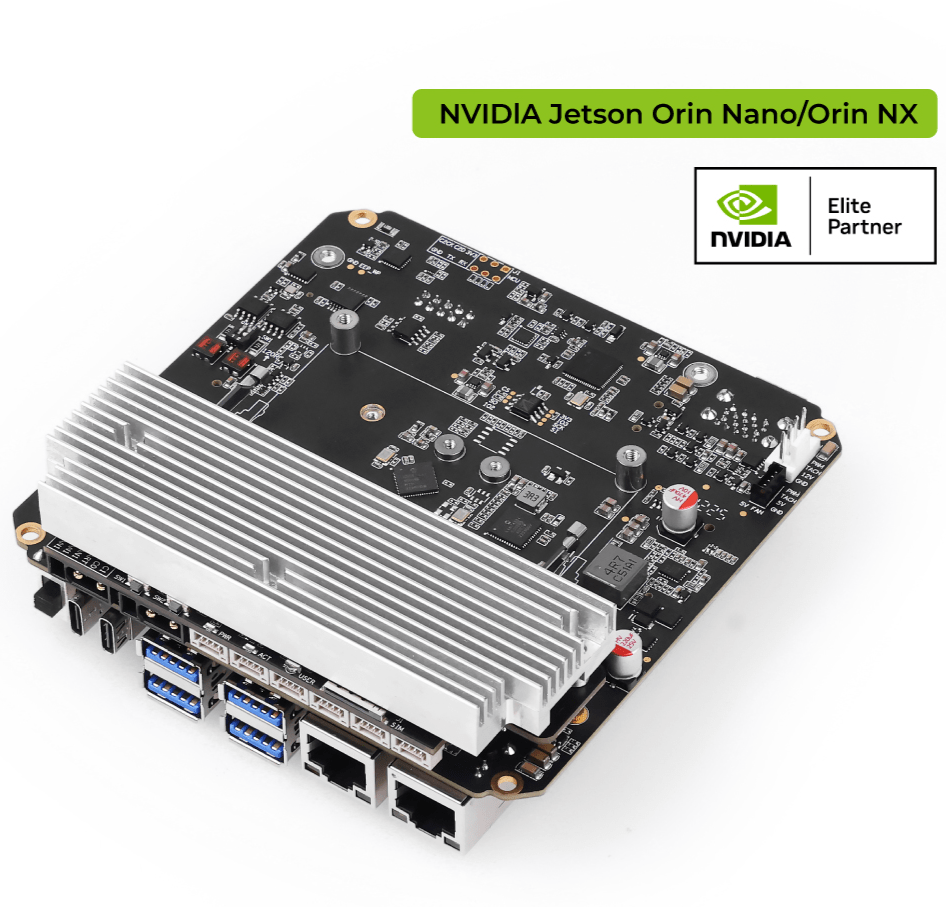

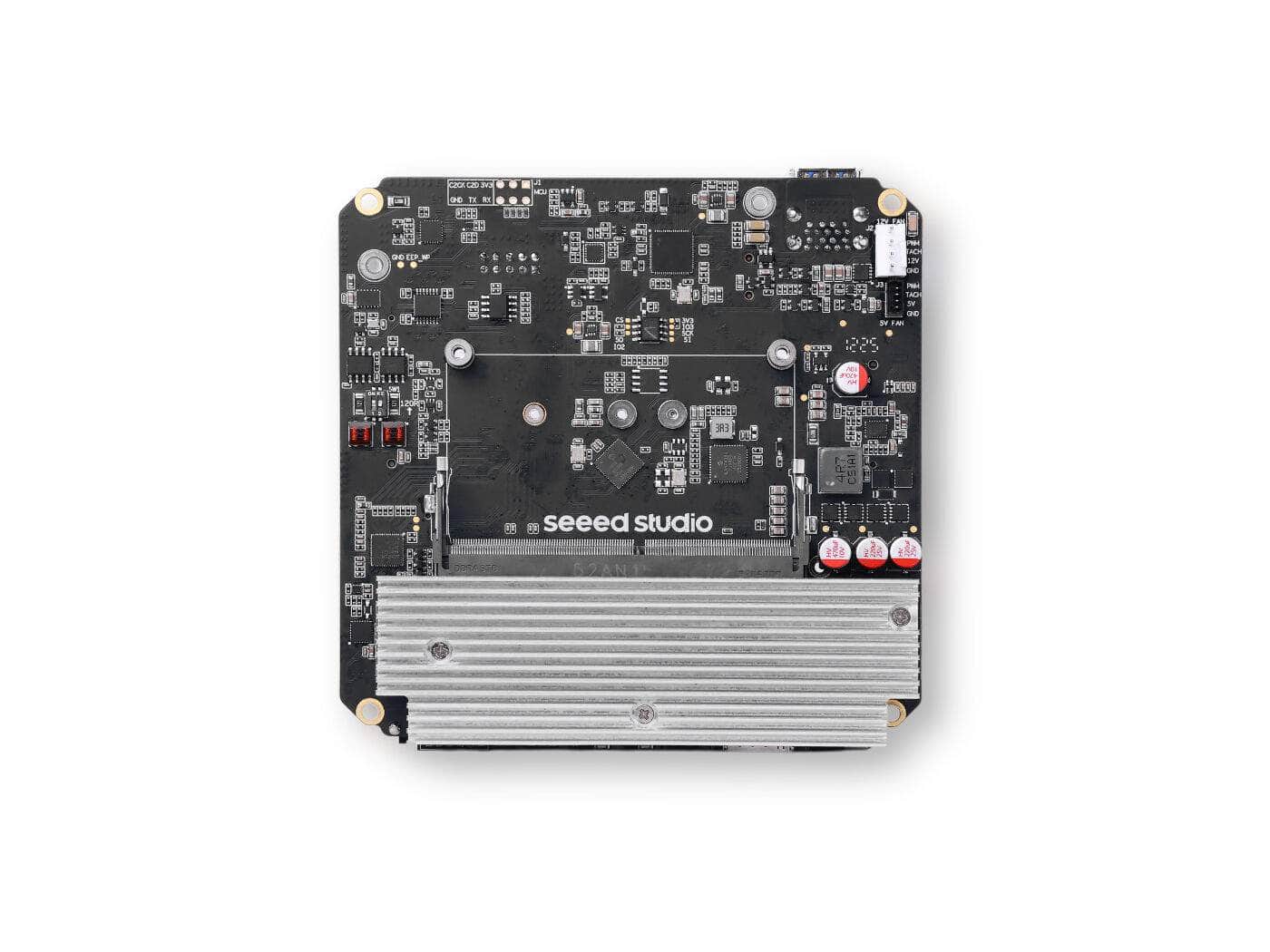

reComputer Robotics J401 Carrier Board for Jetson Orin Nano/Orin NX

The reComputer Robotics J401 is a compact, high-performance edge AI carrier board designed for advanced robotics. Compatible with NVIDIA Jetson Orin Nano/Orin NX modules in Super/MAXN mode, it delivers up to 157 TOPS of AI performance. Pre-installed with JetPack 6.2 and Linux BSP, it ensures seamless deploymentserving as a powerful robotic brain capable of processing complex data from various sensors.

Feature

  • Robust Hardware Design: A compact, high-performance edge AI computer compatible with NVIDIA Jetson Orin Nano/NX modules in Super/MAXN mode, providing up to 157 TOPS of AI performance.
  • Multiple Interfaces for robotics: Including dual RJ45, M.2 slots for 5G/Wi-Fi/BT modules, 6x USB 3.2, 2x CAN, GMSL2(additional purchase), I2C, and UART, functioning as a powerful robotic brain.
  • Software Setup: Pre-installed with JetPack 6.2 and Linux BSP for seamless deployment.
  • Application and Benefit: Ideal for rapid development of autonomous robots, accelerating time-to-market with ready-to-use interfaces and optimized AI frameworks.
  • Wide Operating Range: Operates reliably across a temperature range of -20°C to 60°C at 25W mode and -20°C to 55°C at 40W mode


Jetson Modules Performance with Super Mode

    • Enhanced power management
    • Improved higher frame rate processing
    • Reduced inference time

Specification

Carrier Board

Supported Jetson Module

Jetson Orin Nano/Orin NX

Supported Module Power

7W | 10W | 15W | 20W | 25W | 40W

Storage

1x M.2 KEY M PCIe

Networking

M.2 KEY E

1x M.2 Key E for WiFi/Bluetooth module

M.2 KEY B

1x M.2 Key B for 5G module

Ethernet

2x RJ45 Gigabit Ethernet

I/O

USB

6x USB 3.2 Type-A (5Gbps);

1x USB 3.0 Type-C (Host/DP 1.4)

1x USB 2.0 Type-C (Device Mode/Debug);

Camera

1x 4 in 1 GMSL2(mini fakra)(optional board)

CAN

2x CAN0(XT30(2+2))

3x CAN1(4-Pin GH-1.25 Header)

Display

1x DP1.4(Type C Host)

UART

1 x UART 4-Pin GH-1.25 Header

I2C

2x I2C 4-Pin GH-1.25 Header

Fan

1x 4-Pin Fan Connector (5V PWM)

1x 4-Pin Fan Connector (12V PWM)

Extension Port

1x Camera Expansion Header(for GMSL2 board)

RTC

1x RTC 2-pin

1x RTC Socket

LED

3x LED(PWR, ACT and User LED)

Pinhole Button

1x PWR

1x RESET

DIP Switch

1x REC

Antenna Hole

5x Antenna Hole

Power

19-54V XT30(2+2) (XT30 to 5525 DC Jack Cable included)

Jetpack Version

Jetpack 6.2

Mechanical

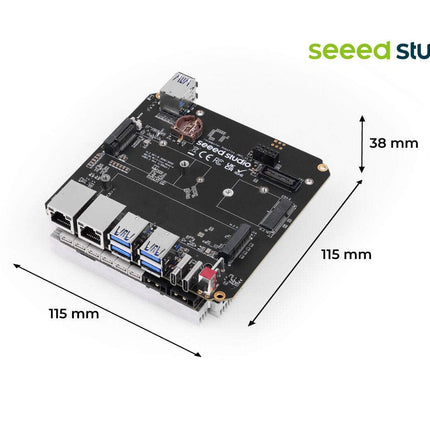

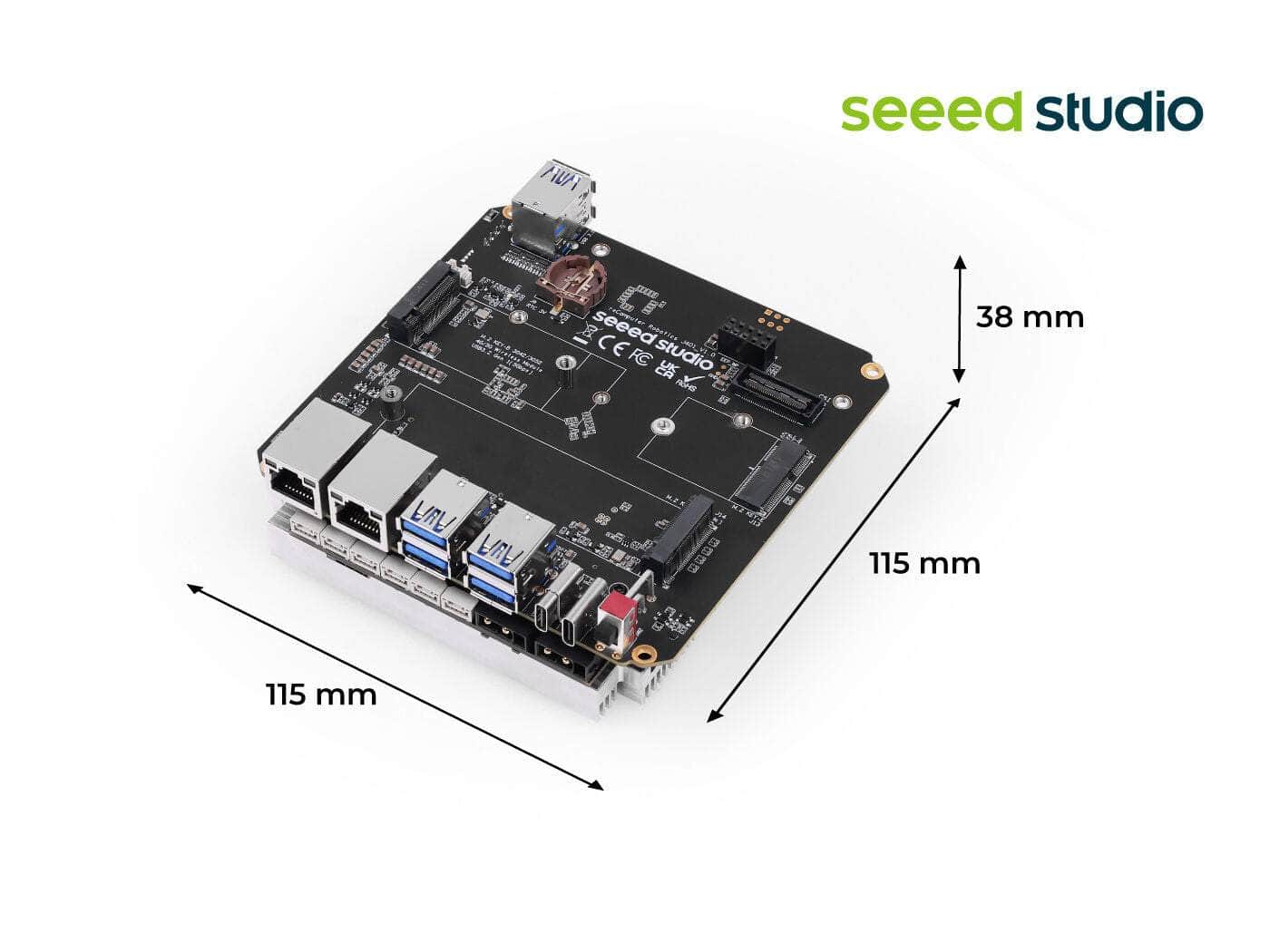

Dimensions (W x D x H)

115mm x 115mm x 38mm

Weight

200g

Installation

Desk, Wall-mounting

Operating Temperature

-20℃~60℃(25W Mode)

-20℃~55℃(MAXN Mode)

(with reComputer Robotics heat sink with fan)

Warranty

2 Years

Certification

RoHS, REACH, CE, FCC, UKCA, KC


Hardware Overview


Application

The NVIDIA AI software stack is designed for accelerate AI application and deployment:

Designed for Edge AI Computer Vision Applications:

Jetson Platform Services provide a platform to simplify development, deployment and management of Edge AI applications on NVIDIA Jetson like BEV sensing demo with 4 USB cameras.

Designed for demanding AI applications:

Such as AMR, smart retail, industrial automation, and video surveillance, smart video analysis scenario


Part List

reComputer Robotics J401 Carrier Board x 1

x1

Power Supply and JST expansion board x 1

x1

XT30 to DC cable x 1

x1

USB Cable, Type A to Type C x 1

x1

Heat Sink for expansion board

x 1

Stud(M3*30)

x 5

M3 Hexagon nut

x 5

Screw(CM2.5*L.4) for Jetson Module and M.2 Key M

x 3

Screw(CM2*3.0) for M.2 Key E

x 1

Stud(M2*2.0) for M.2 Key B

x 1

Screw(CM3*4.0) for M.2 Key B

x 1

User Manual

x 1

reComputer Robotics J401 Jetson Orin Nano/Orin NX

Product form
Free pickup in our shop(s)

SKU: 114110327

$349.00 $319.00 Excl. GST

$319.00
New stock coming, dispatch in 5-6 days.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
