reComputer Robotics J4012 Edge AI Computer NVIDIA Jetson Orin NX Super 16GB

Description

reComputer Robotics J4012 Edge AI Computer NVIDIA Jetson Orin NX Super 16GB

reComputer Robotics J4012 is a compact yet powerful edge AI computer designed for fast development and deployment in robotics. Delivering up to 157 TOPS of AI performance with rich I/O options (USB, Ethernet, CSI, CAN), it supports seamless multi-sensor integration and industrial applications. With wide DC power input (12–54V) and pre-installed Jetpack 6.2 + Linux BSP, it’s ready for immediate use in advanced robotics applications.

Feature

  • Robust Hardware Design: Boost power in a compact size: deliver up to 157 TOPS AI performance by NVIDIA Jetson Orin NX Module.
  • Multiple Interfaces for robotics: Including dual RJ45, M.2 slots for 5G/Wi-Fi/BT modules, 6x USB 3.2, 2x CAN, GMSL2(additional purchase), I2C, and UART, functioning as a powerful robotic brain.
  • Software-ready Ecosystem: Pre-installed with JetPack 6.2 and Linux BSP for seamless deployment.
  • Application and Benefit: Ideal for rapid development of autonomous robots, accelerating time-to-market with ready-to-use interfaces and optimized AI frameworks.
  • Robust Power & Thermal Design for Durability: Operates reliably from –20 °C to 60 °C at 25 W and up to 55 °C in MAXN mode, fueled through a wide 19–54 V DC input, ensuring stable operation in mobile and industrial robot environments

    Jetson Modules Performance with Super Mode

    • Enhanced power management
    • Improved higher frame rate processing
    • Reduced inference time


Specification

Module



reComputer Robotics J4012

Applications Processor(AP)

NVIDIA Jetson Orin™ NX 16GB

AI Performance

Orin NX 16GB – 157 TOPS (MAXN)

GPU

1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores

GPU Max Frequency

1173 MHz

CPU

8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3

CPU Max Frequency

2.0 GHz

DL Accelerator

2 x NVDLA v2.0

DL Max Frequency

1.23 GHz

Vision Accelerator

1 x PVA v2.0

Memory

16GB 128-bit wide LPDDR5 DRAM 102.4GB/s

Power

10W - 15W - 25W - 40W

Video Encode

1x 4K60 (H.265)

3x 4K30 (H.265)

6x 1080p60 (H.265)

12x 1080p30 (H.265)

Video Decode

1x 8K30 (H.265)

2x 4K60 (H.265)

4x 4K30 (H.265)

9x 1080p60 (H.265)

18x 1080p30 (H.265)

CSI camera

Up to 4 cameras

(8 via virtual channels)

8 lanes MIPI CSI-2

D-PHY 2.1 (up to 20Gbps)

Mechanical

69.6mm x 45mm

260-pin SO-DIMM connector





Carrier Board

Storage

1x M.2 KEY M PCIe

Networking

M.2 KEY E

1x M.2 Key E for WiFi/Bluetooth module

M.2 KEY B

1x M.2 Key B for 5G module

Ethernet

2x RJ-45 Gigabit Ethernet

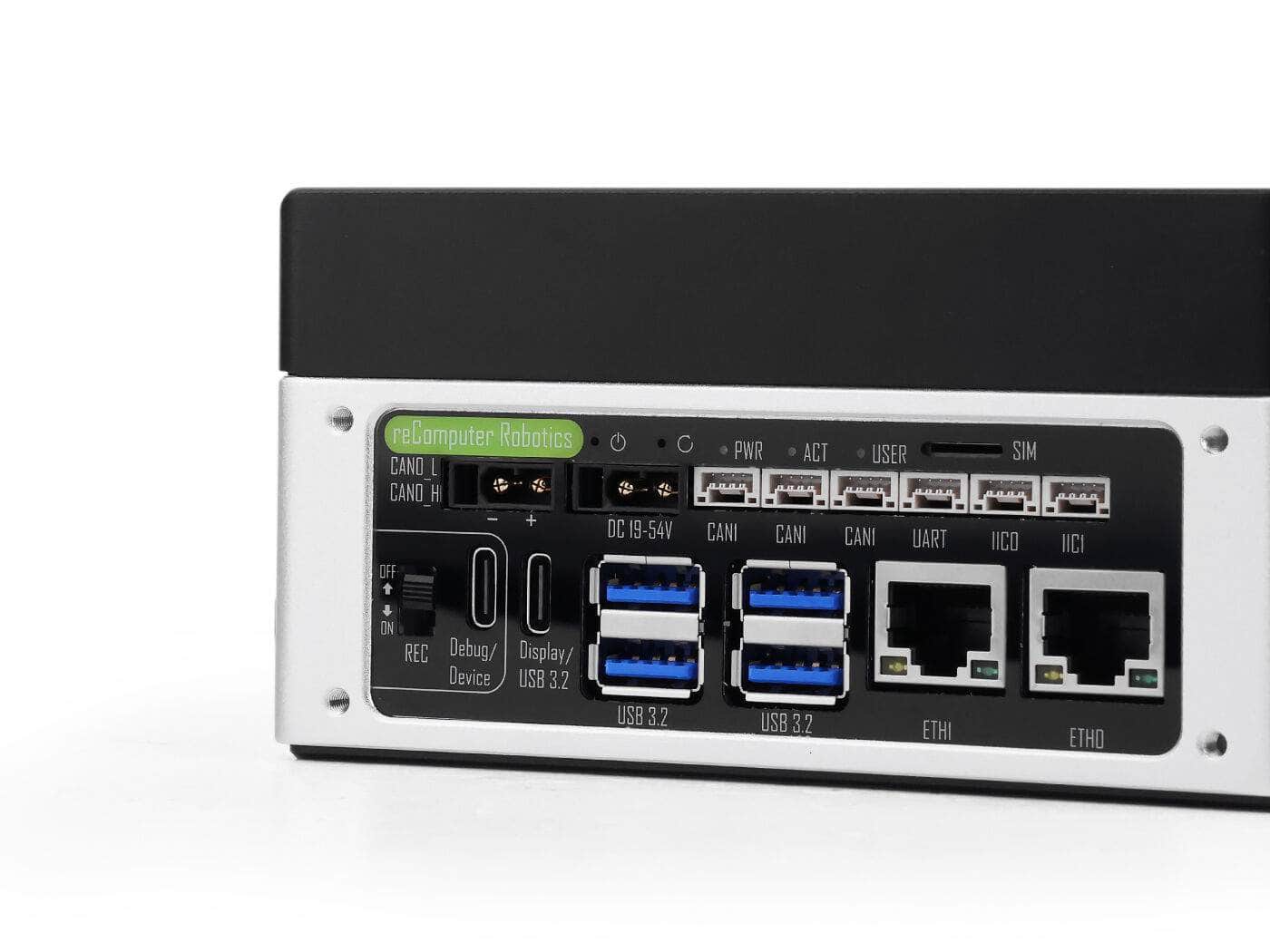

I/O

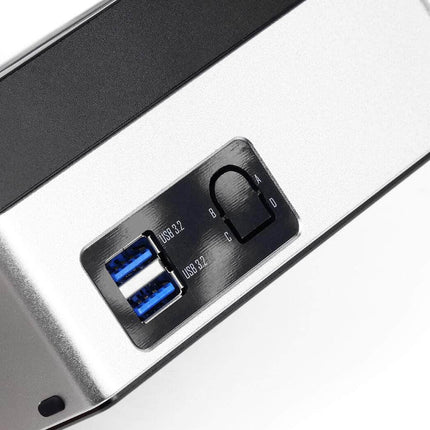

USB

6x USB 3.2 Type-A (5Gbps)

1x USB 3.0 Type-C (Host/DP 1.4)

1x USB 2.0 Type-C (Device Mode Only for Reflash/Debug)

CAN

2x CAN0 (XT30(2+2))

3x CAN1 (4-Pin GH-1.25 Header)

Display

1x DP1.4 (Type C Host)

UART

1 x UART 4-Pin GH-1.25 Header

I2C

2x I2C 4-Pin GH-1.25 Header

Fan

1x 4-Pin Fan Connector (5V PWM)

1x 4-Pin Fan Connector (12V PWM)

Extension Port

1x Camera Expansion Header (for GMSL2 board, not included)

RTC

1x RTC 2-pin

1x RTC Socket

LED

3x LED (PWR, ACT and User LED)

Pinhole Button

1x PWR

1x RESET

DIP Switch

1x REC

Antenna Hole

5x Antenna Hole

Power

19-54V XT30(2+2) (XT30 to 5525 DC Jack Cable included)

Jetpack Version

Jetpack 6.2

Mechanical

Dimensions (W x D x H)

115mm x 115mm x 38mm

Weight

200g

Installation

Desk, Wall-mounting

Operating Temperature

-20℃~60℃ (25W Mode)

-20℃~55℃ (MAXN Mode)

(with reComputer Robotics heat sink with fan)

Warranty

2 Years

Certification

(Pending)

RoHS, REACH, CE, FCC, KC

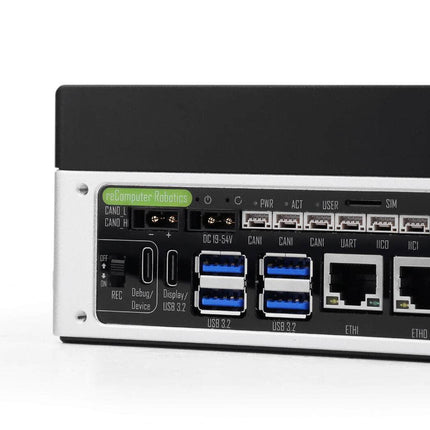

Hardware Overview




Application

The NVIDIA AI software stack is designed for accelerate AI application and deployment:

Designed for Edge AI Computer Vision Applications:

Jetson Platform Services provide a platform to simplify development, deployment and management of Edge AI applications on NVIDIA Jetson like BEV sensing demo with 4 USB cameras.

Designed for demanding AI applications：

Such as AMR, smart retail, industrial automation, and video surveillance, smart video analysis scenario



We have Jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8, and others. We have configured all environment for you to provides single command deployment of projects.



Read more

reComputer Robotics J4012 Edge AI Computer NVIDIA Jetson Orin NX Super 16GB

Product form
Free pickup in our shop(s)

SKU: 114110310

$1,799.00 $1,649.00 Excl. GST

$1,649.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    reComputer Robotics J4012 Edge AI Computer NVIDIA Jetson Orin NX Super 16GB

    reComputer Robotics J4012 is a compact yet powerful edge AI computer designed for fast development and deployment in robotics. Delivering up to 157 TOPS of AI performance with rich I/O options (USB, Ethernet, CSI, CAN), it supports seamless multi-sensor integration and industrial applications. With wide DC power input (12–54V) and pre-installed Jetpack 6.2 + Linux BSP, it’s ready for immediate use in advanced robotics applications.

    Feature

    • Robust Hardware Design: Boost power in a compact size: deliver up to 157 TOPS AI performance by NVIDIA Jetson Orin NX Module.
    • Multiple Interfaces for robotics: Including dual RJ45, M.2 slots for 5G/Wi-Fi/BT modules, 6x USB 3.2, 2x CAN, GMSL2(additional purchase), I2C, and UART, functioning as a powerful robotic brain.
    • Software-ready Ecosystem: Pre-installed with JetPack 6.2 and Linux BSP for seamless deployment.
    • Application and Benefit: Ideal for rapid development of autonomous robots, accelerating time-to-market with ready-to-use interfaces and optimized AI frameworks.
    • Robust Power & Thermal Design for Durability: Operates reliably from –20 °C to 60 °C at 25 W and up to 55 °C in MAXN mode, fueled through a wide 19–54 V DC input, ensuring stable operation in mobile and industrial robot environments

      Jetson Modules Performance with Super Mode

      • Enhanced power management
      • Improved higher frame rate processing
      • Reduced inference time


    Specification

    Module



    reComputer Robotics J4012

    Applications Processor(AP)

    NVIDIA Jetson Orin™ NX 16GB

    AI Performance

    Orin NX 16GB – 157 TOPS (MAXN)

    GPU

    1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores

    GPU Max Frequency

    1173 MHz

    CPU

    8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3

    CPU Max Frequency

    2.0 GHz

    DL Accelerator

    2 x NVDLA v2.0

    DL Max Frequency

    1.23 GHz

    Vision Accelerator

    1 x PVA v2.0

    Memory

    16GB 128-bit wide LPDDR5 DRAM 102.4GB/s

    Power

    10W - 15W - 25W - 40W

    Video Encode

    1x 4K60 (H.265)

    3x 4K30 (H.265)

    6x 1080p60 (H.265)

    12x 1080p30 (H.265)

    Video Decode

    1x 8K30 (H.265)

    2x 4K60 (H.265)

    4x 4K30 (H.265)

    9x 1080p60 (H.265)

    18x 1080p30 (H.265)

    CSI camera

    Up to 4 cameras

    (8 via virtual channels)

    8 lanes MIPI CSI-2

    D-PHY 2.1 (up to 20Gbps)

    Mechanical

    69.6mm x 45mm

    260-pin SO-DIMM connector





    Carrier Board

    Storage

    1x M.2 KEY M PCIe

    Networking

    M.2 KEY E

    1x M.2 Key E for WiFi/Bluetooth module

    M.2 KEY B

    1x M.2 Key B for 5G module

    Ethernet

    2x RJ-45 Gigabit Ethernet

    I/O

    USB

    6x USB 3.2 Type-A (5Gbps)

    1x USB 3.0 Type-C (Host/DP 1.4)

    1x USB 2.0 Type-C (Device Mode Only for Reflash/Debug)

    CAN

    2x CAN0 (XT30(2+2))

    3x CAN1 (4-Pin GH-1.25 Header)

    Display

    1x DP1.4 (Type C Host)

    UART

    1 x UART 4-Pin GH-1.25 Header

    I2C

    2x I2C 4-Pin GH-1.25 Header

    Fan

    1x 4-Pin Fan Connector (5V PWM)

    1x 4-Pin Fan Connector (12V PWM)

    Extension Port

    1x Camera Expansion Header (for GMSL2 board, not included)

    RTC

    1x RTC 2-pin

    1x RTC Socket

    LED

    3x LED (PWR, ACT and User LED)

    Pinhole Button

    1x PWR

    1x RESET

    DIP Switch

    1x REC

    Antenna Hole

    5x Antenna Hole

    Power

    19-54V XT30(2+2) (XT30 to 5525 DC Jack Cable included)

    Jetpack Version

    Jetpack 6.2

    Mechanical

    Dimensions (W x D x H)

    115mm x 115mm x 38mm

    Weight

    200g

    Installation

    Desk, Wall-mounting

    Operating Temperature

    -20℃~60℃ (25W Mode)

    -20℃~55℃ (MAXN Mode)

    (with reComputer Robotics heat sink with fan)

    Warranty

    2 Years

    Certification

    (Pending)

    RoHS, REACH, CE, FCC, KC

    Hardware Overview




    Application

    The NVIDIA AI software stack is designed for accelerate AI application and deployment:

    Designed for Edge AI Computer Vision Applications:

    Jetson Platform Services provide a platform to simplify development, deployment and management of Edge AI applications on NVIDIA Jetson like BEV sensing demo with 4 USB cameras.

    Designed for demanding AI applications：

    Such as AMR, smart retail, industrial automation, and video surveillance, smart video analysis scenario



    We have Jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8, and others. We have configured all environment for you to provides single command deployment of projects.



    Read more
