reComputer Robotics J5012 with GMSL Ultra-Advanced Edge AI Computer with NVIDIA Jetson AGX Orin 64GB

Description

reComputer Robotics J5012 with GMSL Ultra-Advanced Edge AI Computer with NVIDIA Jetson AGX Orin 64GB

reComputer Robotics J5012 is a power edge box with NVIDIA Jetson AGX Orin™ 64GB module. It features rich IOs, such as USB, Ethernet, CAN, RS-232/422/485, DI/DO and GMSL. It also features connectivity M.2 Key E slot for Wi-Fi/BT and M.2 Key B slot for 4G/5G modules, making it a perfect candidate to be the brain of sophisticated mobile robots or autonomous vehicles.

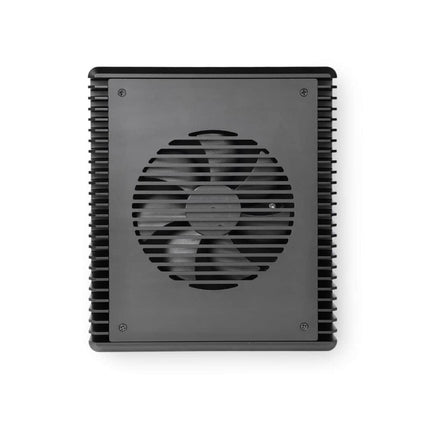

Seeed Studio NVIDIA Jetson reComputer Robotics J5012 with GMSL Ultra-Advanced Edge AI Computer with NVIDIA Jetson AGX Orin 64GB

Seeed Studio NVIDIA Jetson reComputer Robotics J5012 with GMSL Ultra-Advanced Edge AI Computer with NVIDIA Jetson AGX Orin 64GB

Feature

  • Powerful embodied AI Platform Compatible with the Jetson AGX Orin 64GB module, offering computing capability of 275 TOPS. Perfect platform for embodied AI and AMR
  • Multi-Connectivity Featuring 2x M.2 Key M slots for SSD, M.2 Key E slot for Wi-Fi and M.2 Key B slot for 4G/5G
  • Wide Voltage Input Range can be used in 48V battery power system
  • Rich IO capabilities include most common IOs used in robotics and AMR prototyping, such as USB, 10G Ethernet, CAN, RS-232/422/485, I2C, SPI and I2S
  • Vision AI Support Features 4x 4-lane CSI output, and can be connected up to 8x GMSL2 cameras, making it ideal for vision AI applications such as BEV, Occupancy Grid, SLAM, etc.

Specification


Product

reComputer Robotics J5012 with GMSL Extension

Storage

2x M.2 Key M slot (1x 128G SSD included)

Networking

1x M.2 Key E slot for WiFi/Bluetooth module

1x M.2 Key B slot for 4G/5G module

I/O

USB

3x USB 3.0 Type-A (5Gbps);

1x USB 3.0 Type-C (Recovery);

1x USB 2.0 Type-C (Debug);

RJ45

4x 1G Ethernet

1x 10G Ethernet

GMSL

8x GMSL2 (MAX96712 as deserializer)

CAN

4x CAN (CAN-FD supported)

Serial

2x RS-232/422/485

DI/DO

4x DI 4x DO

IO

1x SPI 1x I2C 1x I2S

Display

1x HDMI 2.1

Fan

1x 4-pin Fan Connector (12V PWM)

Button

1x Reset Button; 1x Recovery Button

RTC

1x RTC 2-pin 1x RTC socket

Power

DC 19V ~ 48V Terminal Block 2-pin

Mechanical

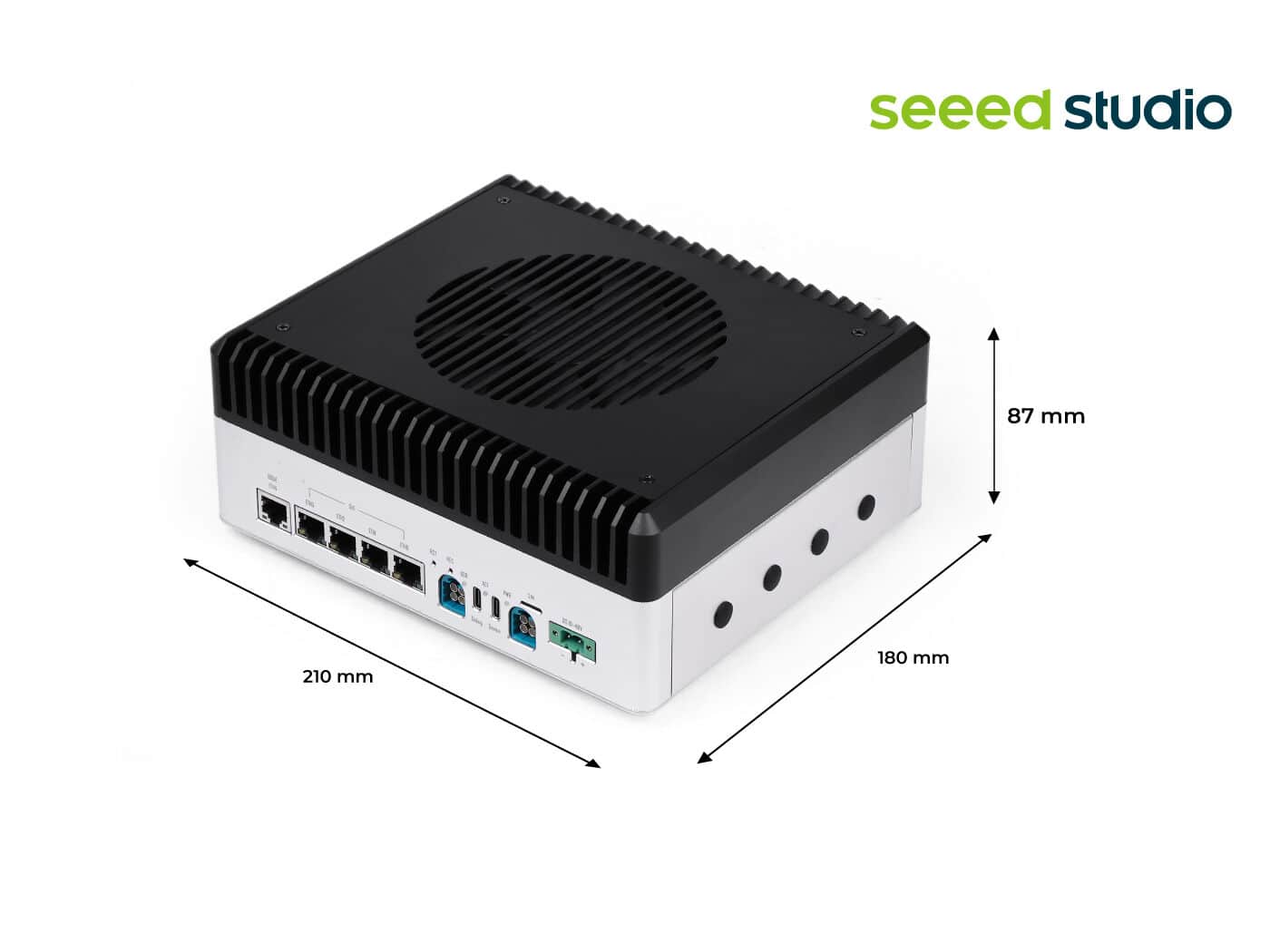

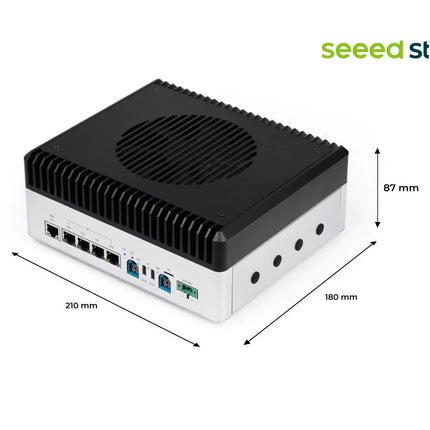

Dimensions (W x D x H)

210mm*180mm*87mm (with stands)

Weight

2.95 kg

Installation

Desk, wall-mounting

Operating Temperature

-10℃~60℃

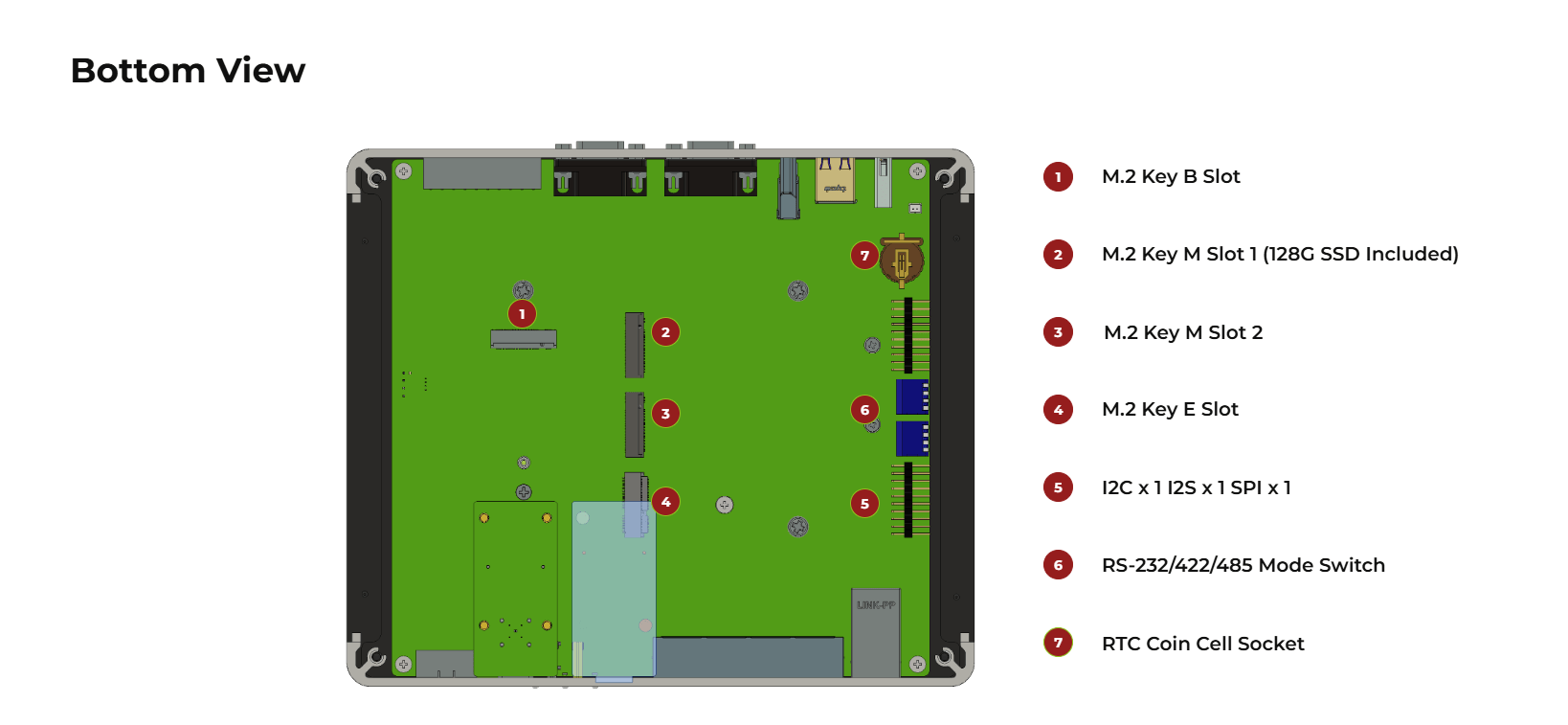

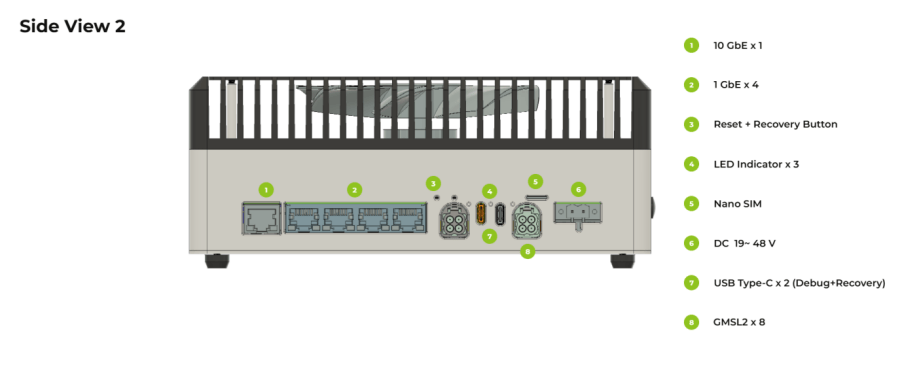

Hardware Overview

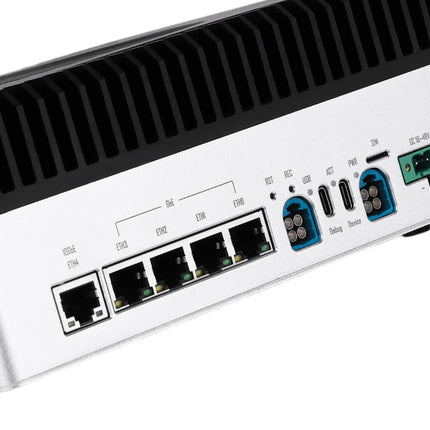

Seeed Studio NVIDIA Jetson reComputer Robotics J5011 with GMSL Ultra-Advanced Edge AI Computer with NVIDIA Jetson AGX Orin 32GB

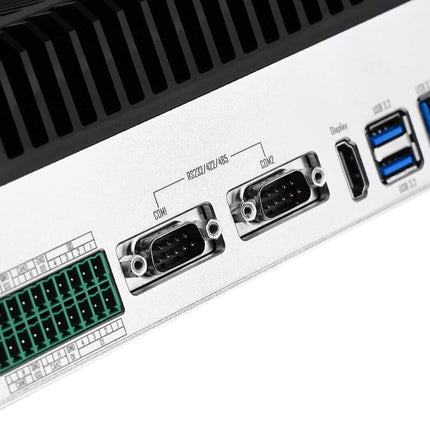

Seeed Studio NVIDIA Jetson reComputer Robotics J5011 with GMSL Ultra-Advanced Edge AI Computer with NVIDIA Jetson AGX Orin 32GB

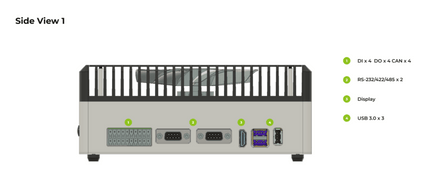

Seeed Studio NVIDIA Jetson reComputer Robotics J5011 with GMSL Ultra-Advanced Edge AI Computer with NVIDIA Jetson AGX Orin 32GB

With AGX Orin module, this most powerful embedded AI system lets you create advanced robotics and edge AI applications for manufacturing, logistics, and healthcare. It’s the most powerful embedded system, pushing the limits of AI robotics. The Isaac robotics platform offers NVIDIA-accelerated systems, libraries, and generative AI models to enhance AI perception, manipulation, and simulation in robotics.

Learn about Issac platform

Isaac - AI Robot Development Platform | NVIDIA Developer

    reComputer Robotics J501 supports sensor-rich autonomy by integrating data from LiDAR (via Ethernet/CAN), 3D cameras (via USB/CSI), GPS, and IMU (via UART). Using AI models and algorithms like ORB-SLAM, A-LOAM, NVBlox or Nav2, it performs sensor fusion, real-time localisation, path planning, and obstacle avoidance. The low-latency processing on the AGX Orin SoC allows autonomous systems to adapt to changing terrain or obstacles on the fly. Its wide voltage input and compact form factor make it suitable for mobile deployment, enabling robust, edge-level autonomy without external compute.

    • Designed for demanding AI applications:

    Such as AMR, smart retail, industrial automation, and video surveillance, a smart video analysis scenario

    The NVIDIA Isaac™ platform delivers the NVIDIA® CUDA®-accelerated libraries, application frameworks, and AI models you need to create autonomous mobile robots (AMRs), arms and manipulators, humanoids, and more.

    Documents



    reComputer Robotics J5012 with GMSL Ultra-Advanced Edge AI Computer with NVIDIA Jetson AGX Orin 64GB

    Product form
    Free pickup in our shop(s)

    SKU: 100032662

    $4,290.00 $4,090.00 Excl. GST

    $4,290.00 $4,090.00
    Product available in stock.

      • We ship from our stock in AU (Perth), pickup by prior booking
      • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
      • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

      Description

      reComputer Robotics J5012 with GMSL Ultra-Advanced Edge AI Computer with NVIDIA Jetson AGX Orin 64GB

      reComputer Robotics J5012 is a power edge box with NVIDIA Jetson AGX Orin™ 64GB module. It features rich IOs, such as USB, Ethernet, CAN, RS-232/422/485, DI/DO and GMSL. It also features connectivity M.2 Key E slot for Wi-Fi/BT and M.2 Key B slot for 4G/5G modules, making it a perfect candidate to be the brain of sophisticated mobile robots or autonomous vehicles.

      Seeed Studio NVIDIA Jetson reComputer Robotics J5012 with GMSL Ultra-Advanced Edge AI Computer with NVIDIA Jetson AGX Orin 64GB

      Seeed Studio NVIDIA Jetson reComputer Robotics J5012 with GMSL Ultra-Advanced Edge AI Computer with NVIDIA Jetson AGX Orin 64GB

      Feature

      • Powerful embodied AI Platform Compatible with the Jetson AGX Orin 64GB module, offering computing capability of 275 TOPS. Perfect platform for embodied AI and AMR
      • Multi-Connectivity Featuring 2x M.2 Key M slots for SSD, M.2 Key E slot for Wi-Fi and M.2 Key B slot for 4G/5G
      • Wide Voltage Input Range can be used in 48V battery power system
      • Rich IO capabilities include most common IOs used in robotics and AMR prototyping, such as USB, 10G Ethernet, CAN, RS-232/422/485, I2C, SPI and I2S
      • Vision AI Support Features 4x 4-lane CSI output, and can be connected up to 8x GMSL2 cameras, making it ideal for vision AI applications such as BEV, Occupancy Grid, SLAM, etc.

      Specification


      Product

      reComputer Robotics J5012 with GMSL Extension

      Storage

      2x M.2 Key M slot (1x 128G SSD included)

      Networking

      1x M.2 Key E slot for WiFi/Bluetooth module

      1x M.2 Key B slot for 4G/5G module

      I/O

      USB

      3x USB 3.0 Type-A (5Gbps);

      1x USB 3.0 Type-C (Recovery);

      1x USB 2.0 Type-C (Debug);

      RJ45

      4x 1G Ethernet

      1x 10G Ethernet

      GMSL

      8x GMSL2 (MAX96712 as deserializer)

      CAN

      4x CAN (CAN-FD supported)

      Serial

      2x RS-232/422/485

      DI/DO

      4x DI 4x DO

      IO

      1x SPI 1x I2C 1x I2S

      Display

      1x HDMI 2.1

      Fan

      1x 4-pin Fan Connector (12V PWM)

      Button

      1x Reset Button; 1x Recovery Button

      RTC

      1x RTC 2-pin 1x RTC socket

      Power

      DC 19V ~ 48V Terminal Block 2-pin

      Mechanical

      Dimensions (W x D x H)

      210mm*180mm*87mm (with stands)

      Weight

      2.95 kg

      Installation

      Desk, wall-mounting

      Operating Temperature

      -10℃~60℃


      Hardware Overview

      Seeed Studio NVIDIA Jetson reComputer Robotics J5011 with GMSL Ultra-Advanced Edge AI Computer with NVIDIA Jetson AGX Orin 32GB

      Seeed Studio NVIDIA Jetson reComputer Robotics J5011 with GMSL Ultra-Advanced Edge AI Computer with NVIDIA Jetson AGX Orin 32GB

      Seeed Studio NVIDIA Jetson reComputer Robotics J5011 with GMSL Ultra-Advanced Edge AI Computer with NVIDIA Jetson AGX Orin 32GB

      With AGX Orin module, this most powerful embedded AI system lets you create advanced robotics and edge AI applications for manufacturing, logistics, and healthcare. It’s the most powerful embedded system, pushing the limits of AI robotics. The Isaac robotics platform offers NVIDIA-accelerated systems, libraries, and generative AI models to enhance AI perception, manipulation, and simulation in robotics.

      Learn about Issac platform

      Isaac - AI Robot Development Platform | NVIDIA Developer

        reComputer Robotics J501 supports sensor-rich autonomy by integrating data from LiDAR (via Ethernet/CAN), 3D cameras (via USB/CSI), GPS, and IMU (via UART). Using AI models and algorithms like ORB-SLAM, A-LOAM, NVBlox or Nav2, it performs sensor fusion, real-time localisation, path planning, and obstacle avoidance. The low-latency processing on the AGX Orin SoC allows autonomous systems to adapt to changing terrain or obstacles on the fly. Its wide voltage input and compact form factor make it suitable for mobile deployment, enabling robust, edge-level autonomy without external compute.

        • Designed for demanding AI applications:

        Such as AMR, smart retail, industrial automation, and video surveillance, a smart video analysis scenario

        The NVIDIA Isaac™ platform delivers the NVIDIA® CUDA®-accelerated libraries, application frameworks, and AI models you need to create autonomous mobile robots (AMRs), arms and manipulators, humanoids, and more.

        Documents
