Features
-
Compact design: A server with an overall dimension of 132mm*124mm*233mm
-
Power AI module:
- NVIDIA® Jetson Xavier™ NX 16GB
- Delivers 21 TOPS AI performance
- 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3
- 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
-
Rapid network access: 2.5GbE port x1 (RX: 2.35 Gbits/sec, TX: 1.4 ~ 1.6 Gbits/sec), 1GbE port x1
-
Hybrid connectivity: Support 5G, 4G, LoRaWAN (modules not included)
-
Rich peripherals: HDMI 2.0 x1，DP1.4 x1，USB3.1 GEN2 (up to 10Gbit) x2
-
Expandable storage: Dual SATA III data connectors for 3.5”/2.5" SATA hard disk drives
-
Excellent heat dissipation: Quiet cooling bottom fan + aluminium heatsink cooling fan
-
Ready-to-use:
- Pre-installed Jetpack system 4.6.1
- Pre-installed 2.5 inch 256GB SSD x1，up to SATA3
-
Easy to adapt: Easy to install, upgrade and maintain with ease of access to the internal components after opening the enclosure
-
Comprehensive certificates: CE, FCC, UKCA, ROHS, REACH
reServer for Jetson, as a milestone product of rethings Jetson family, is extremely compact and powerful. This smart tiny server is able to work easily and efficiently from the edge to the cloud.
reServer for Jetson is a powerful inference server on the edge powered by the NVIDIA Jetson NX 16GB. It delivers up to 21 TOPS, making it ideal for high-performance computing and AI in embedded and edge systems. You get the performance of 384 NVIDIA CUDA® Cores, 48 Tensor Cores, 6 Carmel ARM CPUs, and two NVIDIA Deep Learning Accelerators (NVDLA) engines. Combined with over 59.7GB/s of memory bandwidth, video encoded and decoded, these features make Jetson Xavier NX 16GB the platform of choice to run multiple modern neural networks in parallel and process high-resolution data from multiple sensors simultaneously.
reServer comes pre-installed with Jetpack for rapid development and edge AI integration, supporting entire Jetson software stack and various developer tools for building fast and robust AI applications provided by Seeed Edge AI partners, helps develop innovative AI solutions for manufacturing, logistics, retail, service, agriculture, smart City, healthcare and life sciences, etc
reServer comes with 2 Ethernet ports: 2.5GbE port x1 (RX: 2.35 Gbits/sec, TX: 1.4 ~ 1.6 Gbits/sec), 1GbE port x1
reServer for Jetson supports hybrid connectivity including 5G, 4G, LoRaWAN.The expandability of 5G technology(M.2 B Key) is useful in places where there isn’t always reliable internet connectivity, such as on a farm or in a location with spotty service. LoRa technology makes it possible to connect to a wide range of sensors. It can be applied as an edge computing center for all scenarios that require vast data to collect and process at the edge.
*To get LoRa,4G and 5G connectivity, optional modules are needed.

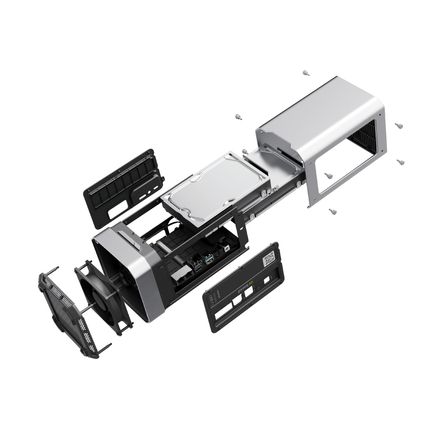

The neat structure of reServer also makes it simple to access the hard drives, memory which allows for easy installation, upgrade and maintenance.
Having dual SATA III 6.0Gbps data connectors, reServer is able to equip up to two 3.5” SATA internal hard disk drives or two 2.5" SATA internal hard disk drives to acquire more storage. (This version with one 2.5 inches 256GB SSD， up to SATA3 already installed)
reServer is equipped with a quiet cooling bottom fan as well as an aluminium heatsink cooling fan to ensure silent and stable operations under heavy loads while providing excellent heat dissipation.
With an overall dimension of 132mm*124mm*233mm, reServer Jetson is only around 1/10 of the size of an ordinary computer case which makes it possible to place reServer on a table, on a shelf, on any surface you want it to be.
Application
- AI-enabled NVR （Network Video Recorder）
- Intelligent Video Analytics
- AMR
- Logistics Automation
Specifications
|
Processor
|
Module
|
NVIDIA® Jetson Xavier™ NX 16GB
|
|
AI Perf
|
21 TOPS
|
|
GPU
|
NVIDIA Volta architecture with 384 NVIDIA CUDA® cores and 48 Tensor cores
|
|
CPU
|
6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6 MB L2 + 4 MB L3
|
|
DL Accelerator
|
2x NVDLA Engines
|
|
Vision Accelerator
|
7-Way VLIW Vision Processor
|
|
Memory
|
8 GB 128-bit LPDDR4x @ 51.2GB/s
|
|
Storage
|
16 GB eMMC 5.1
|
|
Video Encoder
|
2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265)
2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264)
|
|
Video Decoder
|
2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)
2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)
|
|
Storage
|
Support 2 x 2.5''/3.5" SATA (HDD/SSD),up to SATA3 ( 2.5 inch 256GB SSD x1，up to SATA3 already installed)
|
|
Co-processor
|
Raspberry Pi® RP2040 32-Bit Dual ARM Cortex-M0+ @ 133MHz
|
|
External I/O
|
2.5G Ethernet Port
|
Converted from PCIe
RX: 2.35 Gbits/sec
TX: 1.4 ~ 1.6 Gbits/sec
|
|
1000M Ethernet Port
|
Native Ethernet interface of Jetson Xavier NX
|
|
HDMI Interface
|
Support up to HDMI2.0
|
|
DisplayPort Interface
|
Support up to DP1.4
|
|
USB3.1 GNE2 Interface x2
|
Support up to 10Gbit
|
|
DC Jack Power Interface
|
DC 12V @5A, 2.5mm center pin
|
|
Internal I/O
|
M.2 KEY B Connector
|
With USB3.2 GEN2， Support 5G/4G wireless module
|
|
MiNi-PCIe Connector
|
Support LoRa/Series wireless module
|
|
SIM Card Slot
|
Top layer for MiNi-PCIe
|
|
Bottom layer for M.2
|
|
SATA Power Connector x2
|
Support 2.5inch or 3.5inch HDD/SSD, up to SATA3
|
|
SATA Data Connector x2
|
|
Main Fan Connector
|
For enclosure fan, only supports 12V fans, the bottom fan is already installed
|
|
Jetson Xavier NX Fan Connector
|
Only supports 5V fans, aluminium heatsink cooling fan already installed
|
|
RTC Battery Connector
|
RTC battery already installed
|
|
260Pin SODIMM Connector
|
For Jetson Xavier NX
|
|
USB TYPE-C Connector for NX
|
For NX programming
|
|
USB TYPE-C Connector for Coprocessor
|
For coprocessor firmware upgrade
|
|
AutoPower on Header
|
Short-circuit to enter key-on mode， float into the auto power-on mode
|
|
2x5Pin Debug Header
|
Debug
|
|
Power Button
|
With green LED
|
|
Active Buzzer
|
|
Network
|
Giga Ethernet
|
2.5G Ethernet Port
- rx: 2.35 Gbits/sec
- tx: 1.4 ~ 1.6 Gbits/sec
|
|
1000M Ethernet Port
|
|
Wireless Connection
|
M.2 KEY B connector， support 5G/4G wireless module
|
|
MiNi-PCIe connector， support LoRa/Series wireless module
|
|
Display
|
LED1: SATA0 statusLED
|
Sleep mode or no SSD/HDD inserted-----LED OFF
SSD/HDD inserted and PHY ready ----- LED ON
Data transfer status ----- LED blinks
|
|
LED2: SATA1 statusLED
|
|
LED3
|
M.2 wireless module status LED
|
|
Power
|
DC Jack Power interface
|
DC 12V @5A, 2.5mm center pin
|
|
Power Button
|
Power on
|
|
Restart Button
|
Restart
|
|
Pre-installed
|
2.5 inch 256GB SSD x1，up to SATA3
|
|
Aluminum Heatsink Cooling Fan
|
|
RTC battery
|
|
Bottom Fan
|
|
Dimensions
|
132mm*124mm*233mm
|
Hardware Overview
Dimensions
Part List
| Item |
Qty |
| reServer J2032 |
1 |
| NVIDIA® Jetson Xavier NX™ 16GB |
1 |
| Carrier Board |
1 |
| Pre-stalled 2.5 inch 256GB SSD |
1 |
| RTC Battery |
1 |
| Aluminum Heatsink Cooling Fan |
1 |
| Bottom Fan |
1 |
| Aluminum Case |
1 |
12V/5A Power Adapter(without AC Power Cord) |
1 |
User Manual |
1 |
Screwdriver |
1 |
