ReSpeaker USB Mic Array

Description

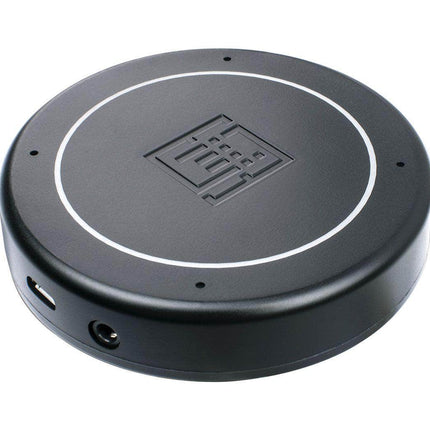

ReSpeaker USB Mic Array

Plug&Play Far-field microphone array for your application! Not a bare dev board, but an out-of-the-box device.

Feature

  • Plug & Play (No driver required), compatible with Windows 10/8/7, Mac, Linux and Android that support OTG.
  • Far-field voice capture
  • Support USB Audio Class 1.0 (UAC 1.0)
  • Four microphones array
  • 12 programmable RGB LED indicators
  • Speech algorithms and featuresVoice Activity Detection
    • Direction of Arrival
    • Beamforming
    • Noise Suppression
    • De-reverberation
    • Acoustic Echo Cancellation

Specification;


Specification

Details

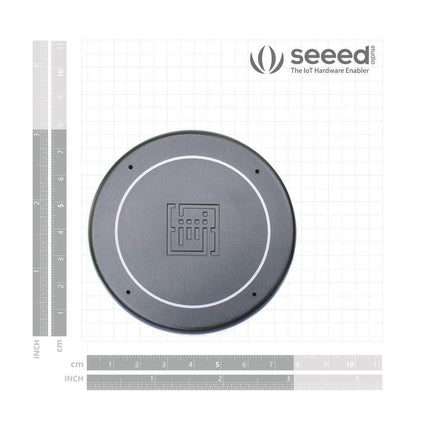

Dimentions

77mm (Diameter)

Weight (N.W.)

43.6g

Weight (G.W.)

104.2g

Battery

Exclude


Hardware Overview

① XMOS XVF-3000: It integrates advanced DSP algorithms that include Acoustic Echo Cancellation (AEC), beamforming, dereverberation, noise suppression and gain control.

② Digital Microphone: The MP34DT01-M is an ultra-compact, lowpower, omnidirectional, digital MEMS microphone built with a capacitive sensing element and an IC interface.

③ RGB LED: Three-color RGB LED.

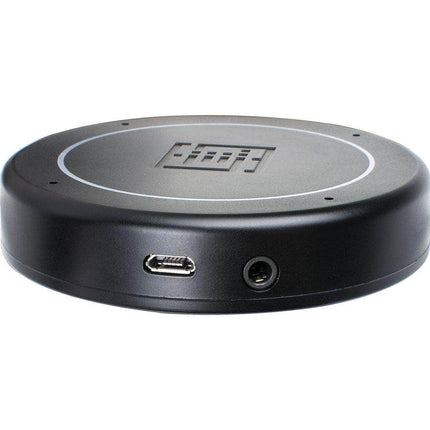

④ USB Port: Provide the power and control the mic array.

⑤ 3.5mm Headphone jack: Output audio, We can plug active speakers or Headphones into this port.

⑥ WM8960: The WM8960 is a low-power stereo codec featuring Class D speaker drivers to provide 1 W per channel into 8 W loads.


Application
  • NS(Noise Suppression)
  • Voice pick-up device
  • Home/Office automation device
  • In-car voice assistant
  • Healthcare device
  • Voice interaction robot
  • Other applications

When it comes to development, we believe you should have as many options as possible. The ReSpeaker USB Mic Array is able to work with most modern Linux, macOS, and Windows systems


Part List:

ReSpeaker USB Mic Array

x1

USB Type A to Micro USB cable

x1

Instruction Card

x1



ReSpeaker USB Mic Array

Product form
Free pickup in our shop(s)

SKU: 107990193

$179.00 $159.00 Excl. GST

$159.00
New stock coming, dispatch in 5-6 days.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    ReSpeaker USB Mic Array

    Plug&Play Far-field microphone array for your application! Not a bare dev board, but an out-of-the-box device.

    Feature

    • Plug & Play (No driver required), compatible with Windows 10/8/7, Mac, Linux and Android that support OTG.
    • Far-field voice capture
    • Support USB Audio Class 1.0 (UAC 1.0)
    • Four microphones array
    • 12 programmable RGB LED indicators
    • Speech algorithms and featuresVoice Activity Detection
      • Direction of Arrival
      • Beamforming
      • Noise Suppression
      • De-reverberation
      • Acoustic Echo Cancellation

    Specification;


    Specification

    Details

    Dimentions

    77mm (Diameter)

    Weight (N.W.)

    43.6g

    Weight (G.W.)

    104.2g

    Battery

    Exclude


    Hardware Overview

    ① XMOS XVF-3000: It integrates advanced DSP algorithms that include Acoustic Echo Cancellation (AEC), beamforming, dereverberation, noise suppression and gain control.

    ② Digital Microphone: The MP34DT01-M is an ultra-compact, lowpower, omnidirectional, digital MEMS microphone built with a capacitive sensing element and an IC interface.

    ③ RGB LED: Three-color RGB LED.

    ④ USB Port: Provide the power and control the mic array.

    ⑤ 3.5mm Headphone jack: Output audio, We can plug active speakers or Headphones into this port.

    ⑥ WM8960: The WM8960 is a low-power stereo codec featuring Class D speaker drivers to provide 1 W per channel into 8 W loads.


    Application
    • NS(Noise Suppression)
    • Voice pick-up device
    • Home/Office automation device
    • In-car voice assistant
    • Healthcare device
    • Voice interaction robot
    • Other applications

    When it comes to development, we believe you should have as many options as possible. The ReSpeaker USB Mic Array is able to work with most modern Linux, macOS, and Windows systems


    Part List:

    ReSpeaker USB Mic Array

    x1

    USB Type A to Micro USB cable

    x1

    Instruction Card

    x1
