reTerminal DM - Raspberry Pi CM4 8GB 10.1'' Panel PC All-in-one, Node-RED

Description


reTerminal DM - Raspberry Pi CM4-powered 8GB RAM 32GB eMMC 10.1'' Integrated Panel PC All-in-one, Node-RED



reTerminal DM is a Panel PC, HMI, PLC, IIoT Gateway all-in-one device powered by Raspberry Pi CM4, with 10.1'' IP65 front panel and rich industrial interfaces, and natively integrated with Node-RED and supports Raspberry Pi-based software ecosystem.

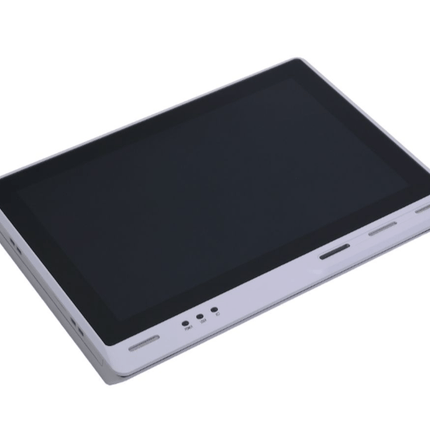

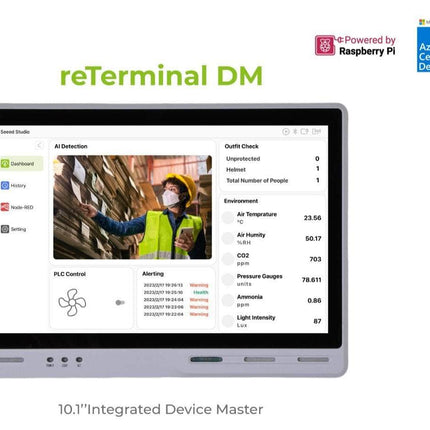

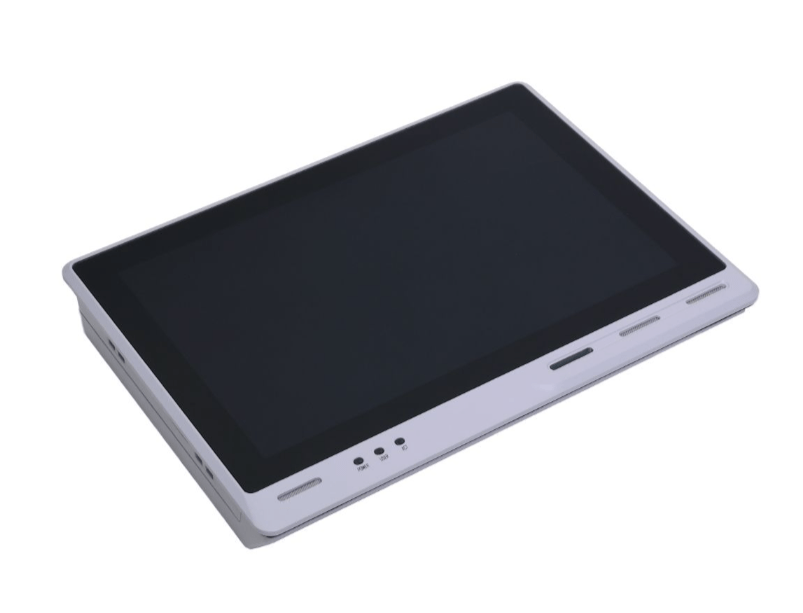

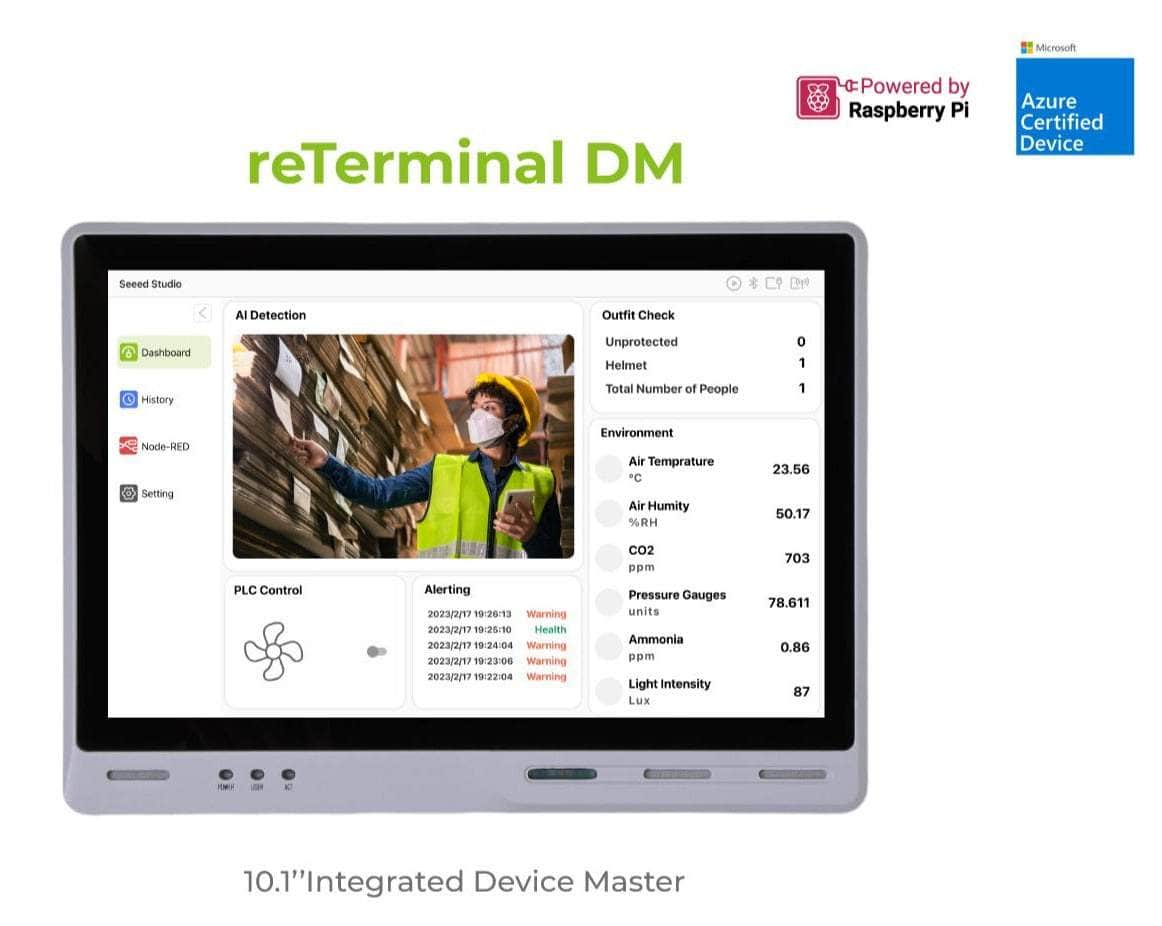

A 10.1" open-source industrial HMI - an Integrated Device Master to unify data flow and manage the onsite device.

Based on Raspberry Pi CM4, and as a Panel PC, HMI, PLC, IIoT Gateway all-in-one device, reTerminal DM is a new generation of interactive sensing hub with an IP65 industrial-grade large screen.

It is equipped with rich scalability and hybrid connectivity, supporting CAN bus, RS485, RS232, Gigabit Ethernet port, and other interfaces, as well as powerful wireless communication capabilities such as 4G, LoRa®, WiFi, and BLE.

It’s also equipped with a larger screen, stricter industrial protection levels, and richer industrial interfaces, designed as the advanced version of reTerminal.



Feature

  • Rugged design for harsh working environment: IP65 front panel, -10~50°C operating temperature
  • Open-source design in software and hardware: Powered by Raspberry Pi CM4, easy for customization or derivatives with the PCIe extensions design (flexible for NVME SSD, Dual 1000M Ethernet, Dual USB 3.0, COM Port RS485/232, and more customizations)
  • Cost-effective Device Master: HMI, PLC, Panel PC and gateway all-in-one. Perfect for the distributed hub devices
  • Low code programming for event-driven applications: Natively integrated Node-RED for flow-based editing and one-click deployment, compatible with all software runs on Raspberry Pi
  • Hybrid connectivity: Support 4G LTE, LoRaWAN®, WiFi, BLE, RS485/RS232, CAN bus, 1000M Ethernet, USB, HDMI
  • Product Warranty: Two-year warranty

Application

reTerminal DM is an integrated device master that can function as an HMI/PLC/Gateway/Panel PC all-in-one device, working in the edge layer of the IOT architecture, unifying data flow, and managing onsite devices, reducing the big gap between legacy systems and modern IT infrastructures in various application scenarios. It can downlink to the edge devices

  • edge controllers, coordinating legacy machines by talking unlimited protocols and flexible software.
  • gateways and environmental sensors, connecting to the IT infrastructure to provide a new frontier of data to adapt to changes.
  • AI boxes, offer better insights and are able to handle multi streams with easy setups. By combining them with AI and automation, many more operations will be industrialized.

And uplink to the cloud and application end with its hybrid connectivity capabilities.

Your Trustworthy Provider of Raspberry Pi Customization Service

With decades of ODM & OEM experience and an in-depth understanding of popular open-source hardware, we promise you professional and flexible customization service for our existing Pi devices and your creative Pi-based idea. Flexible PCIe extensions design for NVME SSD, Dual 1000M Ethernet, Dual USB 3.0, COM Port RS485/232, and more customizations.


Specification

Basic

CPU

CM4

Quad-core Cortex-A72@ 1.5GHz

Memory

8GB

Storage

32GB eMMC

M.2 NVMe SSD Slot 2280-M Key (optional)

OS Support

Raspbian

SenseCraft Edge OS

Display

Size

10.1''

Max. Resolution

1280 x 800

Max. Colors

16.7M (8-bit)

Luminance (nit)

400

Viewing Angle (H/V°)

170/170

Backlight Life (hrs)

30000

Touch Type

10-point Capacitive

Pencil Hardness

7H

Video&Audio

Video

HDMI2.0

Audio

Microphone x 2

Buzzer

3.5mm Audio Jack

Camera

CSI (optional)

Interfaces

Ethernet

1 x 10/100/1000 Mbps

2 x 10/100/1000 Mbps (optional)

USB

2 x USB-A 2.0 Host

2 x USB 3.0 (optional)

RS485

1 x RS-485 > Terminal Block

1 xRS-485 > DB9 (optional)

RS232

1 x RS-232 > Terminal Block

1 xRS-232 > DB9 (optional)

CAN

1 x CAN-BUS > Terminal Block

DI

4x DI > Terminal Block

DO

4x DO > Terminal Block

40pin GPIO

Inside

Wireless Communication

Wifi

On-chip WiFi

BLE

On-chip BLE

LoRa

Mini-PCIe for LoRaWAN (optional)

Cellular

Mini-PCIe for 4G (optional)

Power

Input

2-pin Terminal Block

PoE

12.95W PoE (optional)

Power Range

12~24V DC

Power Consumption

6W Typ.

9W Max.

Power Switch

NO

Reboot Switch

YES

Environment

Ingress Protection

IP65 Front Panel

Operating Temperature

-10~50 °C

Storage Temperature

-20~70 °C

Humidity (Operating)

10~95% RH

Mechanical

Dimension (W x H x D)

259.4 x 191 x 42.2 mm

Enclosure

Die-cast Aluminum Alloy

Mounting

Panel, VESA, Din-Rail

Weight (Net)

1.8Kg

Certification

CE, FCC, UCKA, RoHS, Telec, REACH

EMC

ESD

EN61000-4-2, Level 3

EFT

EN61000-4-4, Level 2

Surge

EN61000-4-5, Level 2

Others

RTC

High Accuracy RTC

Hardware WatchDog

1~255s

Security

ATECC608A

Warranty

2 Years

Heat dissipation

Fanless


The LoRa® Mark is a trademark of Semtech Corporation or its subsidiaries. LoRaWAN® is a mark used under license from the LoRa Alliance®.

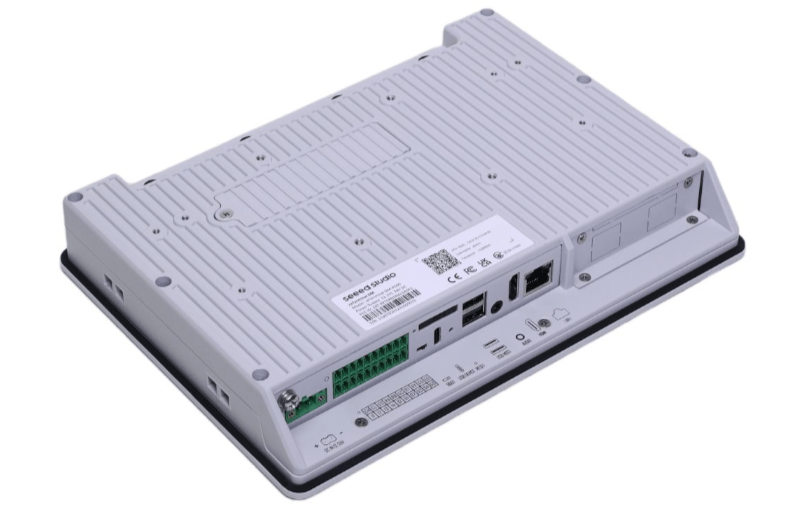

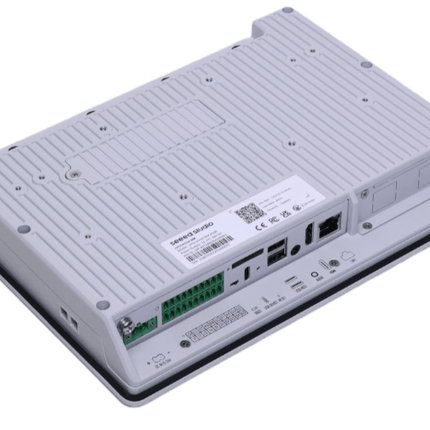

Hardware Overview
