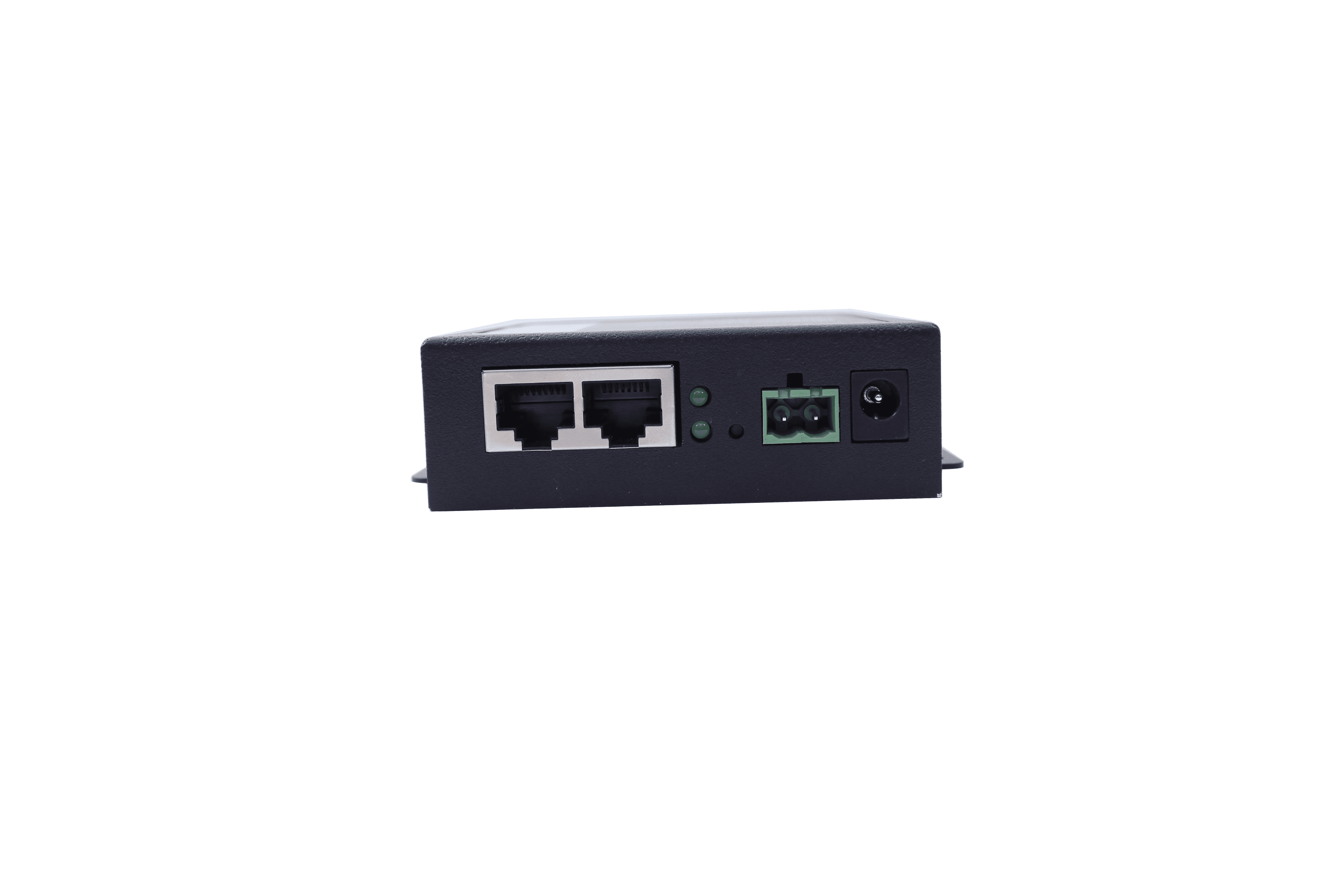

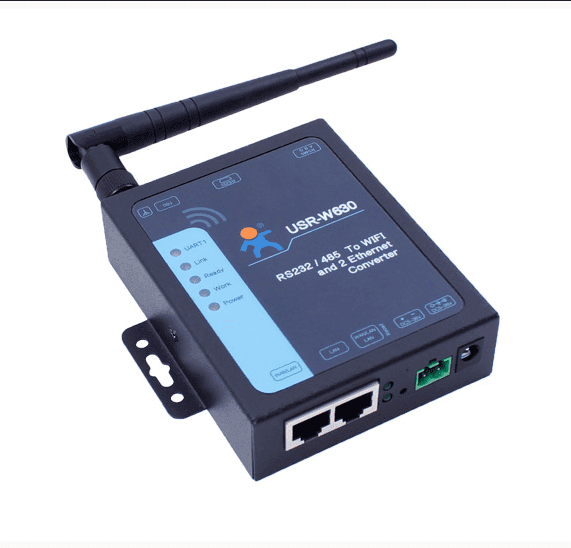

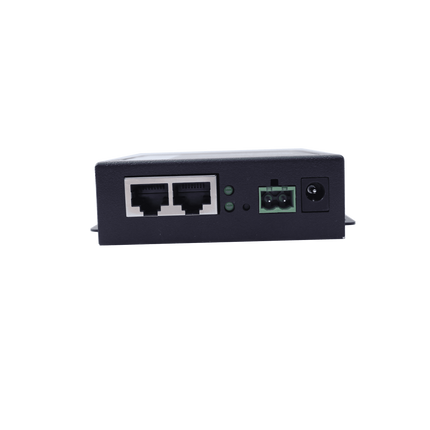

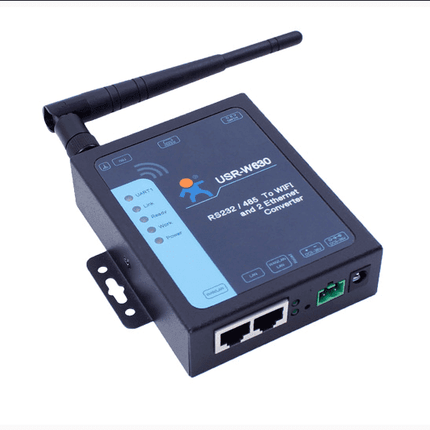

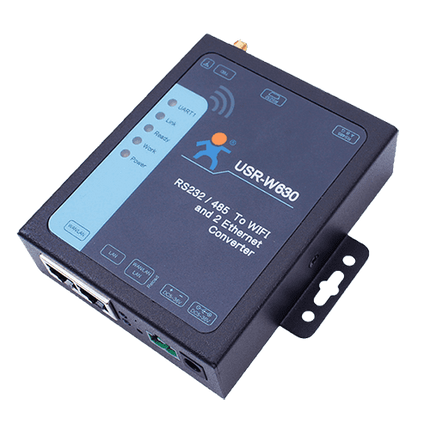

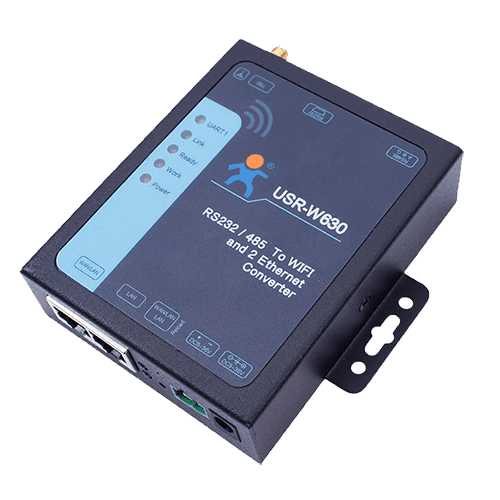

RS232 / RS485 Serial to WiFi and 2 Ethernet Converter USR-W630
2 Ethernet ports Serial to WiFi and Ethernet Converter USR-W630, which can realize bidirectional transparent transmission between RS232/RS485 and WiFi, WiFi and Ethernet, Serial and Ethernet.
- Two Ethernet ports, WAN /LAN Port
- Supports Modbus RTU to TCP, Modbus Polling
- Hardware watchdog to keep working stable
- DC adapter and terminal power supply 5-36 V
- Serial to WiFi or WiFi to Ethernet
Characters
- Two Ethernet ports (WAN and LAN) can be worked simultaneously
- Modbus gateway: Modbus TCP to Modbus RTU in bi-directional; Modbus Polling
- Electrostatic protection
- Hardware WatchDog, 24 hours stable operation.
- Timeout reset function, timing reset function.
- Supports identity packet function.
- Supports heartbeat packet function.
- Websocket function
- Supports Web Server, setup software, serial/network AT command to configure the module.
- Hardware reload.
- WiFi Standard: 2.4GHz 802.11b/g/n
- Work Mode:TCP Server/TCP Client/UDP Server/UDP Client/HTTP Client mode.
- Supports AP, STA, AP+STA.
Specifications
| Ethernet |
|
| Port Number |
2 ethernet ports: 1 x WAN, 1 x WAN/LAN |
| Buffer |
Rx/TX: Max 16K bytes |
| Protection |
2 KV Electromagnetic isolation for Ethernet port |
| Network Protocol |
IP/TCP/UDP/DHCP/DNS/HTTP/ ARP/ICMP/Web socket/Httpd client |
| Speed Rate |
10/100 Mbps, MDI/MDIX |
| Wi-Fi |
|
| Certificate |
FCC/CE |
| WiFi |
802.11 b/g/n |
| Frequency Range |
2.412GHz-2.484GHz |
| Transmit Power |
802.11b: +19dBm(Max)
802.11g: +18dBm(Max)
802.11n:+17dBm(Max) |
| Receive Sensitivity |
802.11b: -89dBm
802.11g: -81dBm
802.11n: -73dBm |
| Hardware |
|
| Interface Standard |
RS232：300～460.8Kbps
RS485：300～230.4Kbps |
| Input Voltage |
DC5～36V |
| Operating Temp. |
-40℃～ 85℃ |
| Storage Temp. |
-40℃～ 125℃ |
| Size |
86*82.5*25mm(L*W*H) |
| Software |
|
| Network Mode |
Station/AP/AP+Station |
| Security |
WEP/WPA-PSK/WPA2-PSK |
| Encryption |
WEP64/WEP128/TKIP/AES |
| Work Mode |
Transparent transmission/serial AT command/
HTTP Client、Modbus TCP<=>Modbus RTU |
| Setting Command |
AT+command |
| Networking Protocol |
TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP |
| Max. Client Number in TCP Server Mode |
24 |
| Configuration |
Web server + AT command |
Note: This kit includes the antenna, AU power adapter, and DB9 cable.
